Add a Route
When the MPS is configured as an Authorized Host to
the LCS, the LCS needs to be told what SIP URIs should
be forwarded to the MPS. This is done by configuring a
route in the Live Communocation Server.
The SIP URI to reach the MPS will be the combination of
the
User
and
Domain
fields.

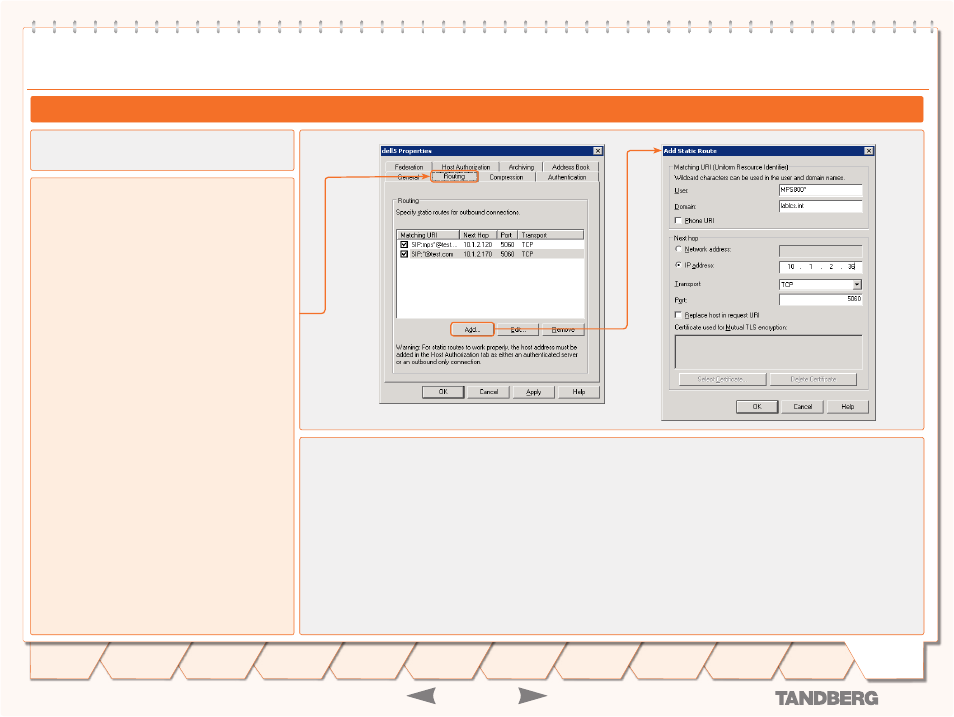

Under the same server properties window (see previ-
ous page), select the
Routing
tab and press
Add…
to
open the Add Static Route dialog and add a new routing
pattern:
The
1.
User
field is used to specify which URIs will be
forwarded by this rule. Wildcards (
*
) are allowed.
In the
2.
Domain
box, enter the domain that will be used
with the SIP URI for the MPS. The SIP URI to reach
the MPS will be the combination of the user and
domain fields. Example: <[email protected]>
Under
3.
Next Hop
, select
IP Address
and enter the IP
address of the System Controller Board of the MPS.
Set
4.
Transport
to
TCP
Set
5.
Port
to
5060
.
Press the
6.
OK
button to save the route
Press the
7.
OK
button to close the properties window
of the server.
This completes the configuration of the LCS server.
Next, the MPS will need to be configured to use the LCS
server.
Configuring Microsoft Office Live Communications Server (LCS) 2005, SP1
This section will illustrate how to setup the Live Commu-
nication Server (LCS) to work properly with the MPS.
Example #1:
If you want all calls coming in to
User
field.
LCS does allow a wildcard entry. Enter the <*> character if a wildcard entry is desired. For example, if all calls beginning with
be forwarded to the MPS itself (e.g. <[email protected]>, <[email protected]>, <[email protected]>), then enter
user field.
In the
Domain
box, enter the domain that will be used with the SIP URI for the MPS. The complete SIP URI to reach the MPS will be the
combination of the user and domain fields. Example: <[email protected]>
Under
Next Hop
, select
IP Address
and enter the IP address of the controller card of the MPS. Make sure
Transport
is set to
TCP
and
Port
is
5060
. The completed route should look like the figure to the left. Press
OK
to save the route, and press
OK
again to close the Properties
window of the server.
