Table: Example with four different call settings:
PRI Board Configuration
!
Please ensure that
Network Type
is set to
G.703
for
the correct ISDN cards in the
PRI Network Configura-
tion
.
Network Configuration
Channel (1 to 5)
For each G.703 Leased Line interface it is possible to
define one or more calls. Each call is identified by a number
(“call-id”), a start channel and max number of channels. The
maximum number of possible calls is 5.

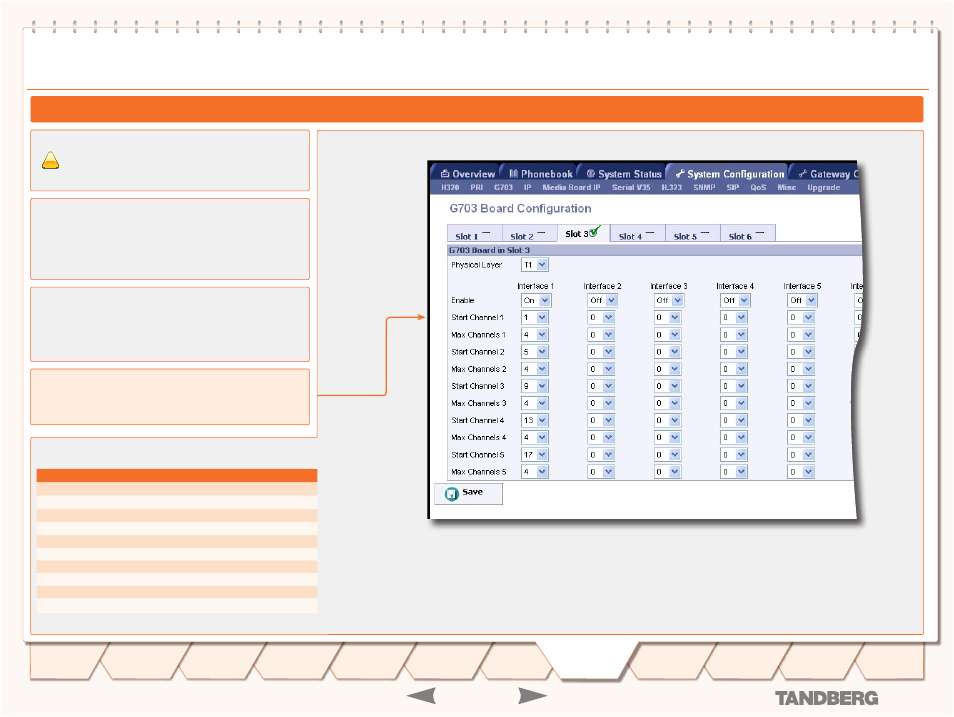

G.703 Board
Leased Line is a non-dialling protocol. Should be used when:
One codec is connected in a point to point connection
1.
Through an ISDN switch supporting G.703 Leased Line
2.
mapping.
Save
- Press the Save button to save changes.
Start Channel (1 to 5)
Max Channels (1 to 5)
E1: Start channel <1..31>
Max channels <0 (Off), 1..31>
T1: Start channel <1..24>
Max channels <0 (Off), 1..24>
5 Calls
4 Calls
3 Calls
2 Calls
Start Channel 1
1
1
1
1
Max Channels 1
4 (256 k)
6 (384 k)
8 (512 k)
12 (768 k)
Start Channel 2
5
7
9
13
Max Channels 2
4 (256 k)
6 (384 k)
8 (512 k)
12 (768 k)
Start Channel 3
9
13
17
Max Channels 3
4 (256 k)
6 (384 k)
8 (512 k)
Start Channel 4
13
19
Max Channels 4
4 (256 k)
6 (384 k)
Start Channel 5
17
Max Channels 5
4 (256 k)
G.703 Board
G.703 Board Interfaces (2:2)
