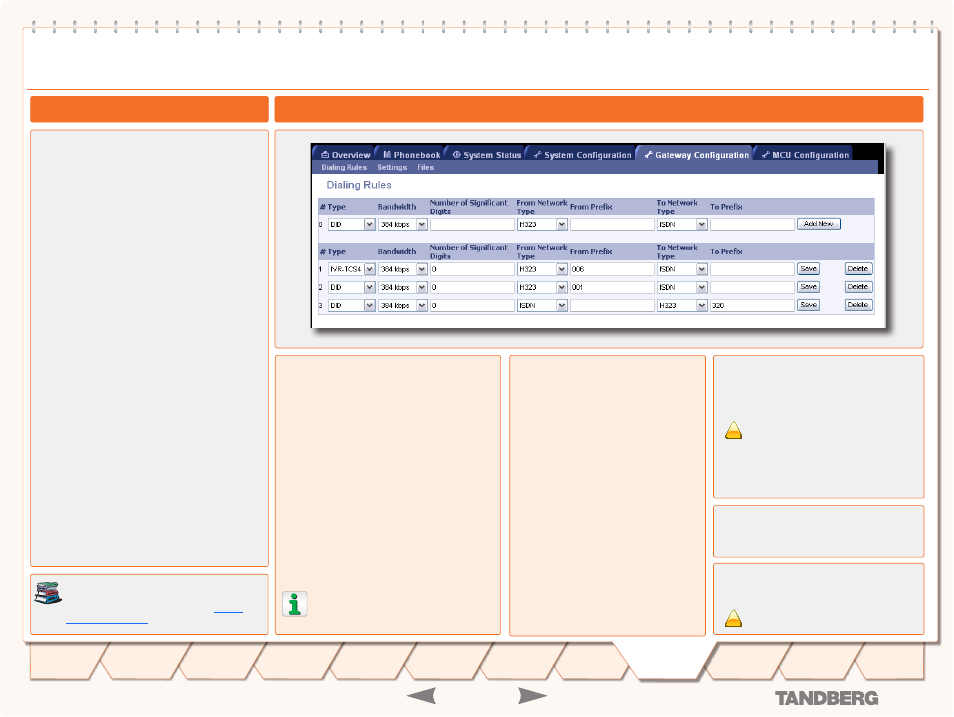

Add new Dialling Rule
Configure the new Dialling Rule from the row
1.
on top
Press the
2.
Add New
button to activate the dial-
ling rule
The new rule is added as the Rule #1 in the list
3.
Modify an existing Dialling Rule
Locate the Dialling Rule to be modified (1, 2,
1.
3, etc.)
Modify the Dialling Rule and press the
2.
Save
button to activate the modified Dialling Rule
Delete a Dialling Rule
Locate the Dialling Rule to be deleted (1, 2, 3,
1.
etc.)
Press the
2.
Delete
button
Order of Dialling Rules
The rules are processed in the order they appear
in the list. Rule #1 is first and Rule #2 next, etc.
In cases where the order of rules matters, make
sure they are added in the right order. A new rule is
added on top as Rule #1.
Number of Dialling Rules
There is no limitation in the MPS as to how many
Dialling rules you want to set up.
However, bear in mind that the total number of
registrations on the Gatekeeper can be limited.
Setting up Dialling Rules
Dialling Rules
Type
DID
- Direct Inward Dialling
IVR
- Interactive Voice Response
IVR-TCS4
- IVR and TCS-4 Service
Bandwidth
This value sets the maximum call rate for the
given Gateway service: Telephone, 64 kbps, 128
kbps, 192 kbps, 256 kbps, 384 kbps, 512 kbps,
768 kbps, 1152 kbps, 1472 kbps, 1920 kbps.
Number of Significant Digits
Specify the number of significant digits of the
incoming number that should be used to:
Do a rule matching
•
Generate an outgoing number
•
Setting this field to 0 (zero) will make the
Gateway check the complete incoming
number for rule matching.
Handling Dialling Rules
The Gateway does only support H.320 to
H.323 Gateway calls.
From Network Type -
The call type on
for incoming calls. Supported call types:
H.323, ISDN, V.35, V.35RS366 and
G.703 (leased line).
From Prefix -
This setting instructs
what to match on the incoming call. The
significant number of digits is applied on
the input, before matching From Prefixes.
To Network Type -
The call type on the
destination side. Supported call types:
H.323, ISDN, V.35, V.35RS366 and
G.703 (leased line).
To Prefix -
The To Prefix is used to ap-
pend a number to the matched number
(now without the From Prefix). The To
Prefix will be first in the outgoing dialled
number from the Gateway.
Add New
Adds a new dialling rule to the list below and
activates the new dialling rule.
Take care! Pressing the Add New
button will create a new Dialling Rule
at the top of the list. In cases where
the order of the Dialling Rules mat-
ters, this may affect those calls, see
Example #1 on next page.
Save
Press the
Save
button to save changes to a
Dialling Rule.
Delete
Press the
Delete
button to delete a Dialling
Rule.
Take care! No warning will appear.
!
!
For further information about how the video
system endpoint supports TCS-4 please see
the MXP Administrator’s Guide on
114
