GW Overview
Gateway Usage Information

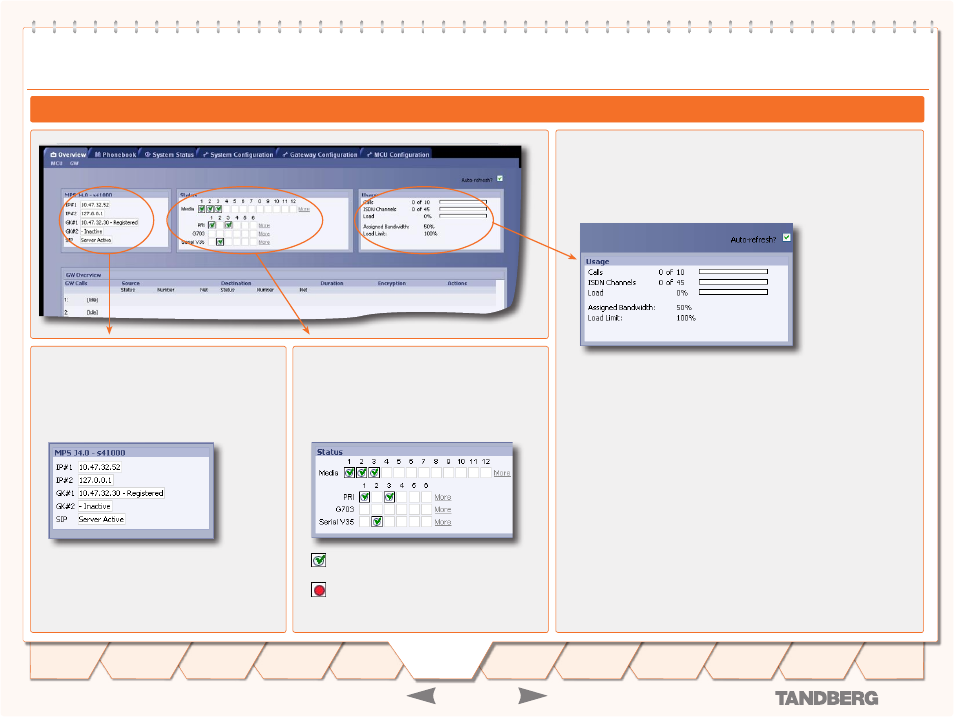

The Usage pane for Gateway calls shows each active call through the Gateway
(Load, ISDN channels and number of calls).
Right above the Usage pane you can:
Set Auto-Refresh to • On/Off .
The status of the Gateway resources:
Calls 0 of 10 • : Indicates that 0 calls are connected through the Gateway. The
total number of supported calls in this configuration is 10.
ISDN Channels 0 of 45 • : Indicates that 0 ISDN channels are used on the TAND-
BERG MPS. The total number of supported ISDN channels in this configuration
is 45.
Load 0% • : Indicates 0% load on the Gateway resources.
Assigned Bandwidth 50% • : Indicates that 50% of the bandwidth is assigned for
Gateway calls.
Load Limit 100% • : Indicates that the Load Limit is set to 100%. When the
Resource Usage reaches the “Busy on Load”-limit, the Gateway will signal this
to the Gatekeeper. The Gatekeeper will then try to route calls through other
Gateways. This is done to maintain availability for incoming ISDN calls when
using multiple Gateways.
NOTE! This setting is not present if the MPS is a combo MCU/Gateway.
The General field displays some basic information:
Software version •
IP address(es) •
Gatekeeper address and status •
SIP status •
The Status field displays the connections status for
the installed boards and cards:
Media boards •
ISDN PRI card •
ISDN G.703 card •
SERIAL card •
Indicates OK
Indicates an error
Click More to see more details.
