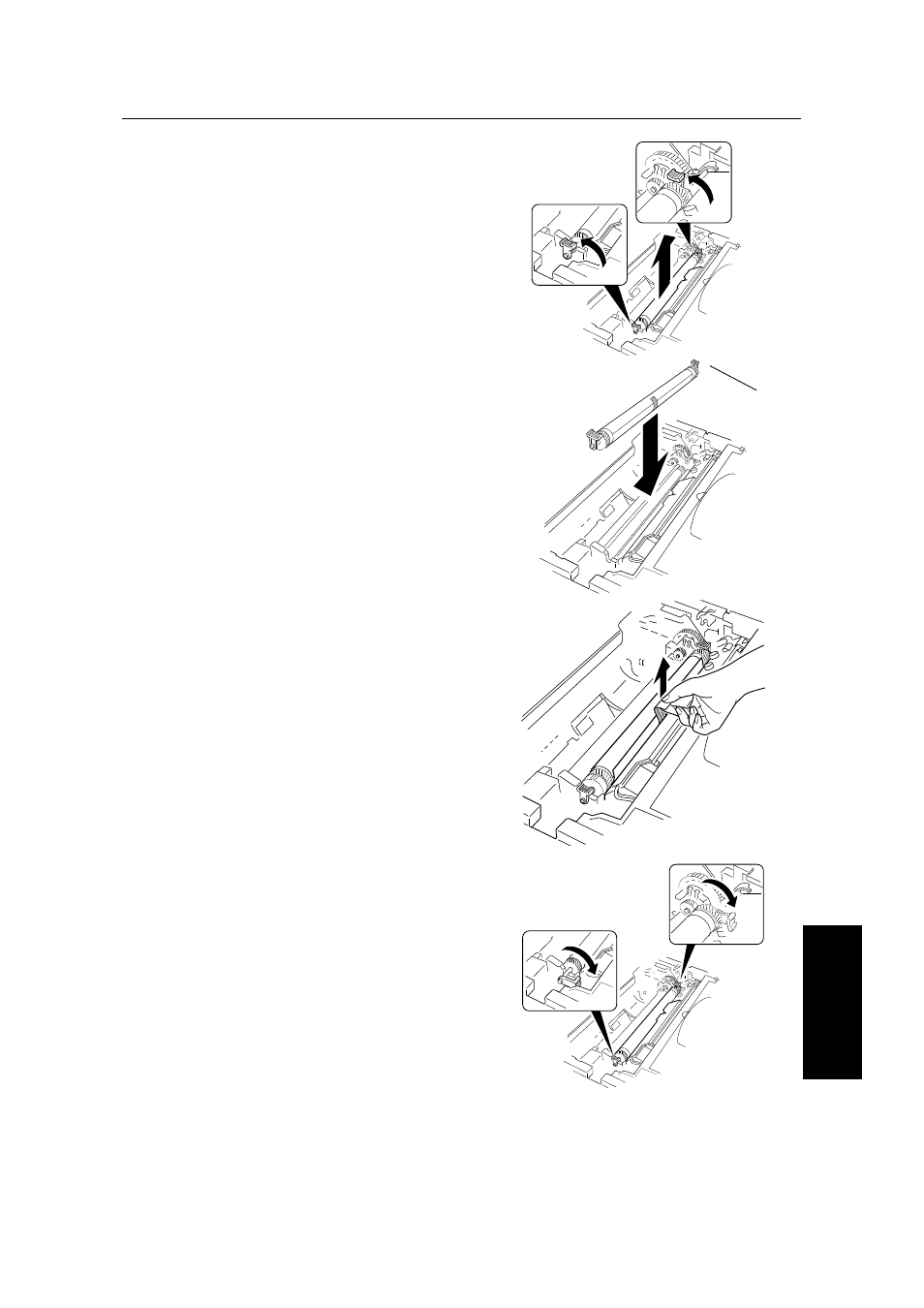

4. Remove the old the photoconductor.
5. Place the photoconductor in the ma-
chine. Pay attention to the green
knobs. One of them is marked "R"
for right side.
6. Remove the black sheet as shown in
the lower picture.
7. Turn the green levers to lock the photo-
conductor in place.
Caution: Never touch the surface of
the photoconductor (Green drum).
