4.7.2.1 Local LAN to LAN Server Bridging

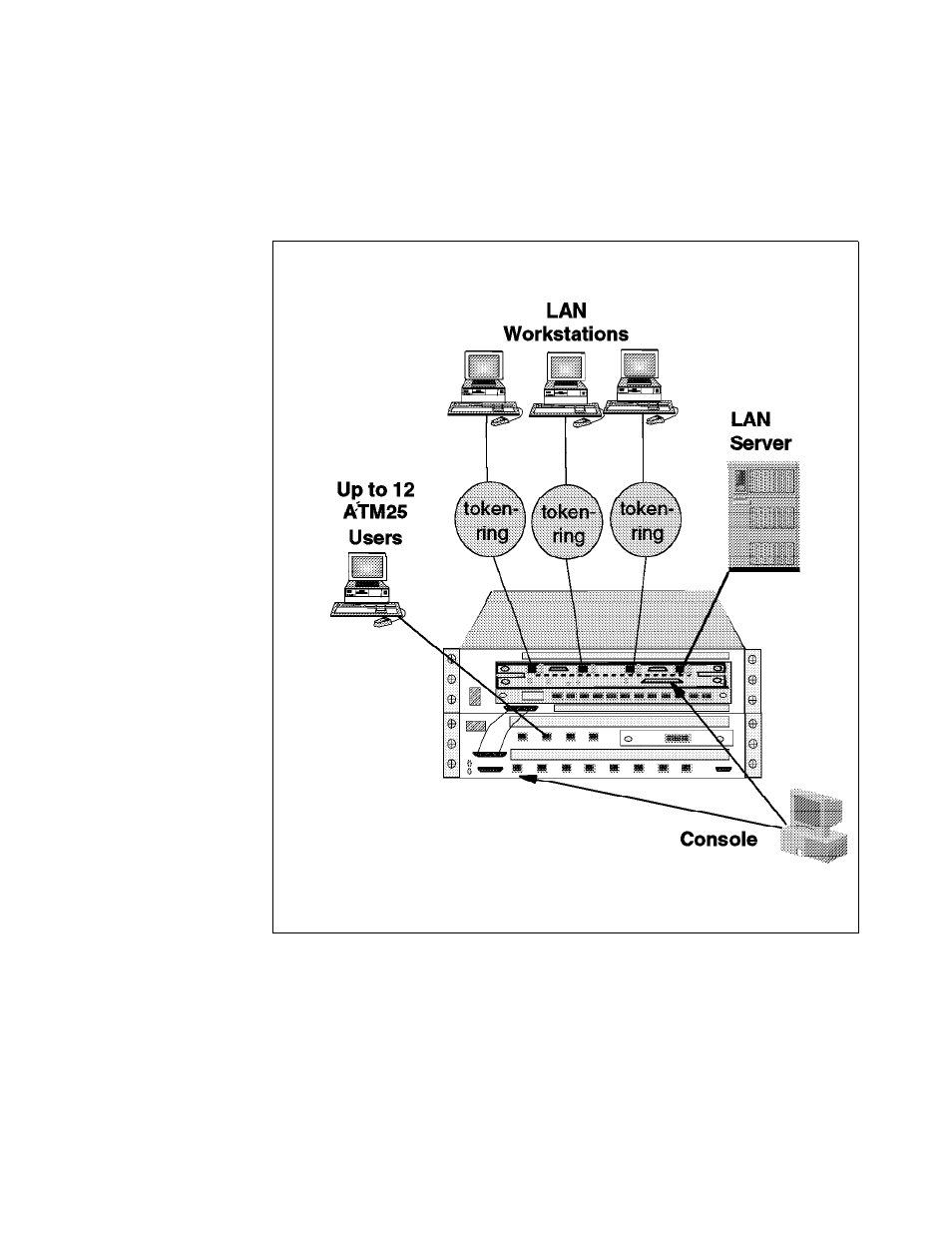

Figure 23 shows an example of using the ATM-LAN bridge as a means of
bridging three token-ring LANs together while providing all users, including the
ATM25 users, with access to a LAN server. Note the console connects to the
base unit and to the bridge module; this is required for the initial configuration of
the bridge module.
Figure 23. Local LAN to A T M Server Bridging
Figure 24 on page 60 shows an example of using the ATM-LAN bridge as a
means of bridging three Ethernet LANs together while providing all users,
including the ATM25 users, with access to both a LAN server and to an
ATM-attached server for very demanding applications.
