U P D A T I N G S O F T W A R E – S T E P 2

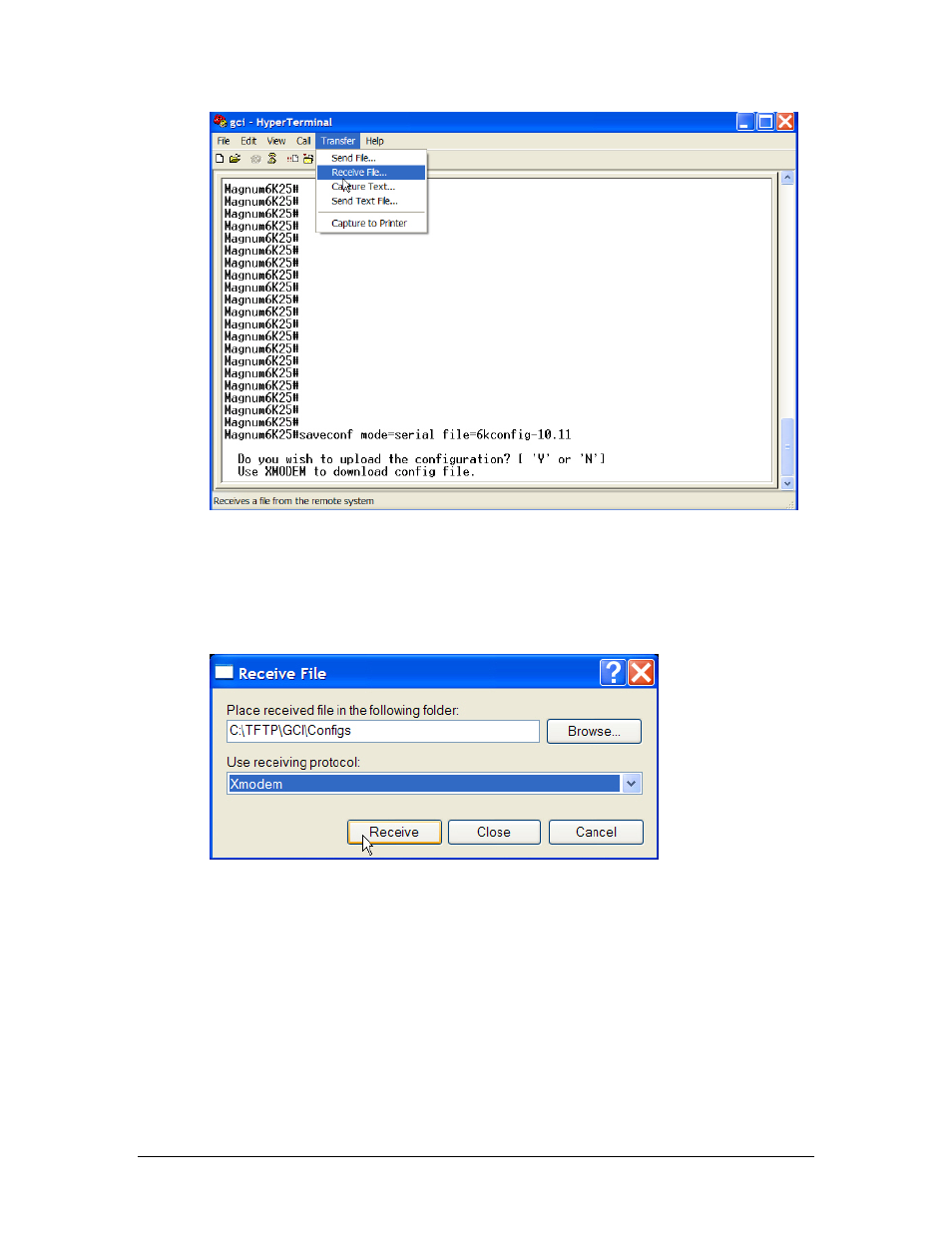

F
IGURE
148 – Invoke the “Receive File” to start the Xmodem transfer program. In the figure above
the Windows XP based HyperTerminal screen is shown
Once the “Receive File” is invoked (as shown in Figure 8) follow the dialog to save the
file in the proper directory with the proper name as shown in Figure 9.
F
IGURE
149 – Make sure to select the Xmodem protocol and the proper directory where the
configuration is saved. Click on Receive. This starts the file transfer.
Once the file transfer is started, the Xmodem status window is shown in Figure 10.
