M A G N U M 6 K S W I T C H E S , M N S - 6 K U S E R G U I D E

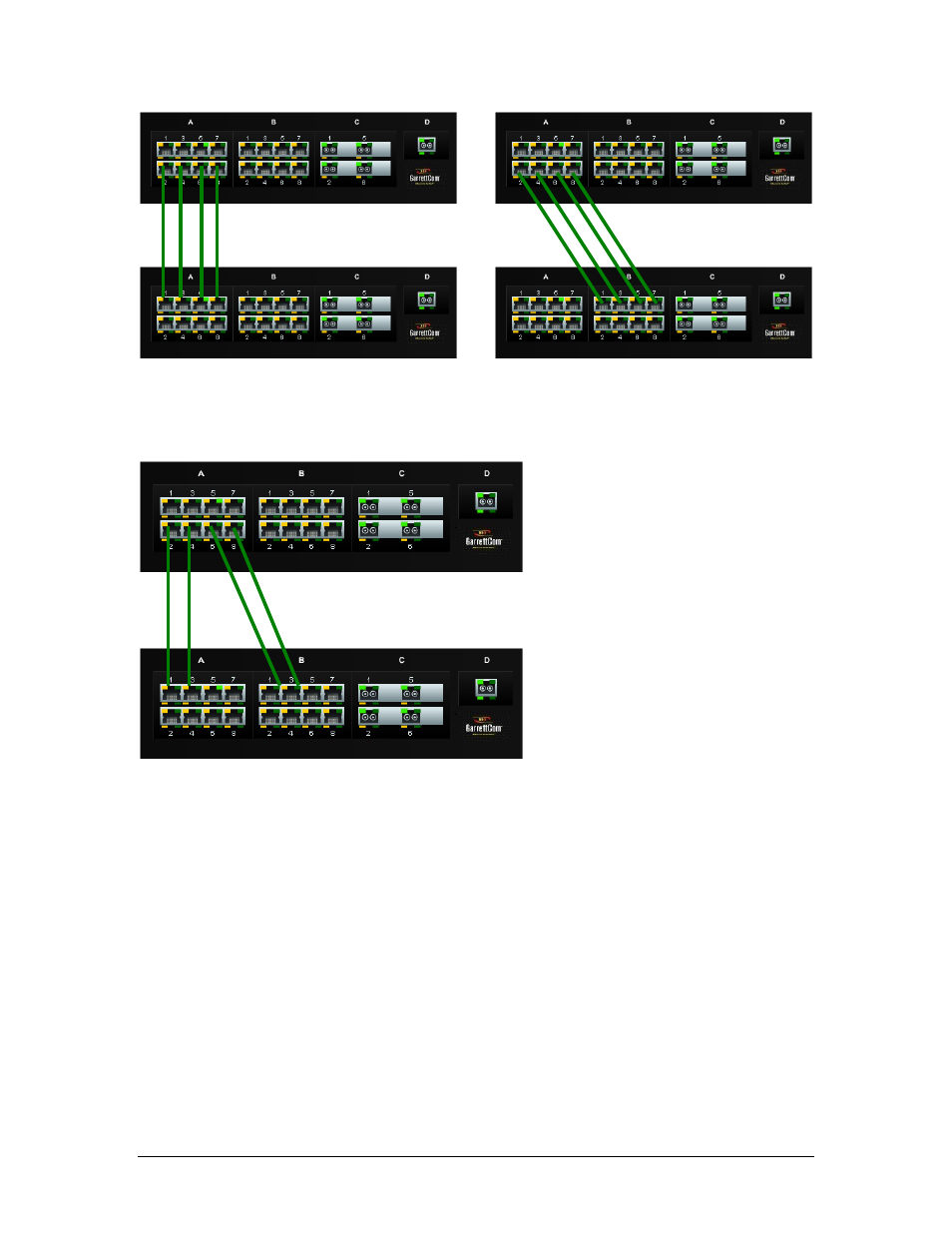

F
IGURE
97 – Some valid LACP configurations.
Should trunks be created so as to span multiple ports, a “trunk mismatch” error message
is printed on the console. An example of an incorrect configuration is shown below.
F IGURE 98 – an incorrect LACP connection scheme for Magnum 6K family of switches. All LACP
trunk ports must be on the same module and cannot span different modules.
Switch 1
Switch 2
Switch 1
Switch 2
Switch 1
Switch 2
Another example
is highlighted below where some ports belong to VLAN 10 (shown in
red) and other ports belong to VLAN 20 (shown in blue). If the port groups do not have a
common VLAN between them, LACP does not form a connection.
