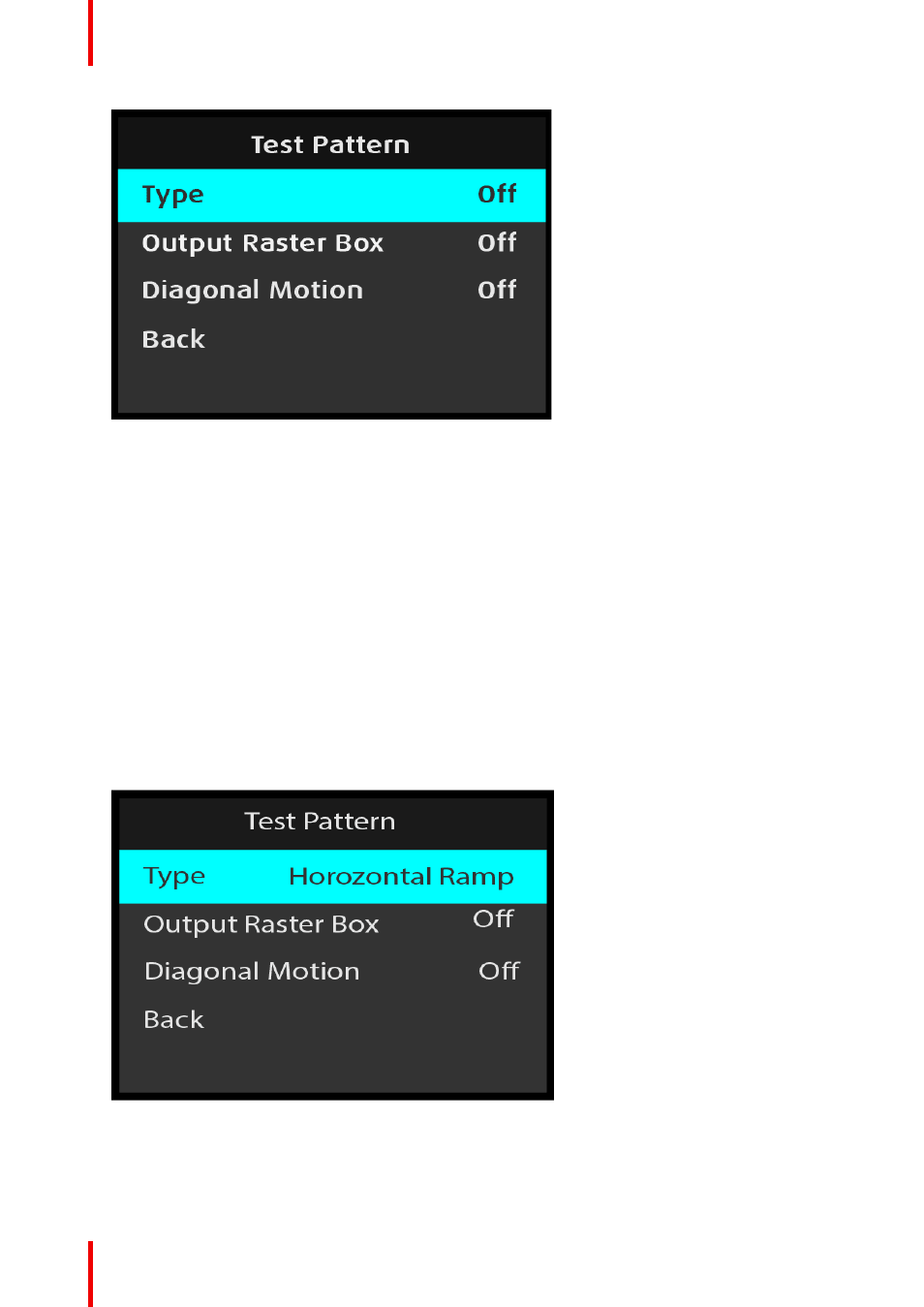

Image 6–136 Multiviewer: Test Pattern: Type adjustment
The following test patterns are available:
-
Horizontal Ramp
- Vertical Ramp
- 100% Color Bars
- 16x16 Grid
- 32x32 Grid
- Burst
- 75% Color Bars
- 50% Gray
- Horizontal Steps
- Vertical Steps
- White
- Black
- Red
- Green
- Blue
2. Use the Adjust knob to scroll through and select the desired test pattern.
Image 6–137 Selecting test-pattern type “Horizontal Ramp”
