R5912621 /01 PDS–4K
100

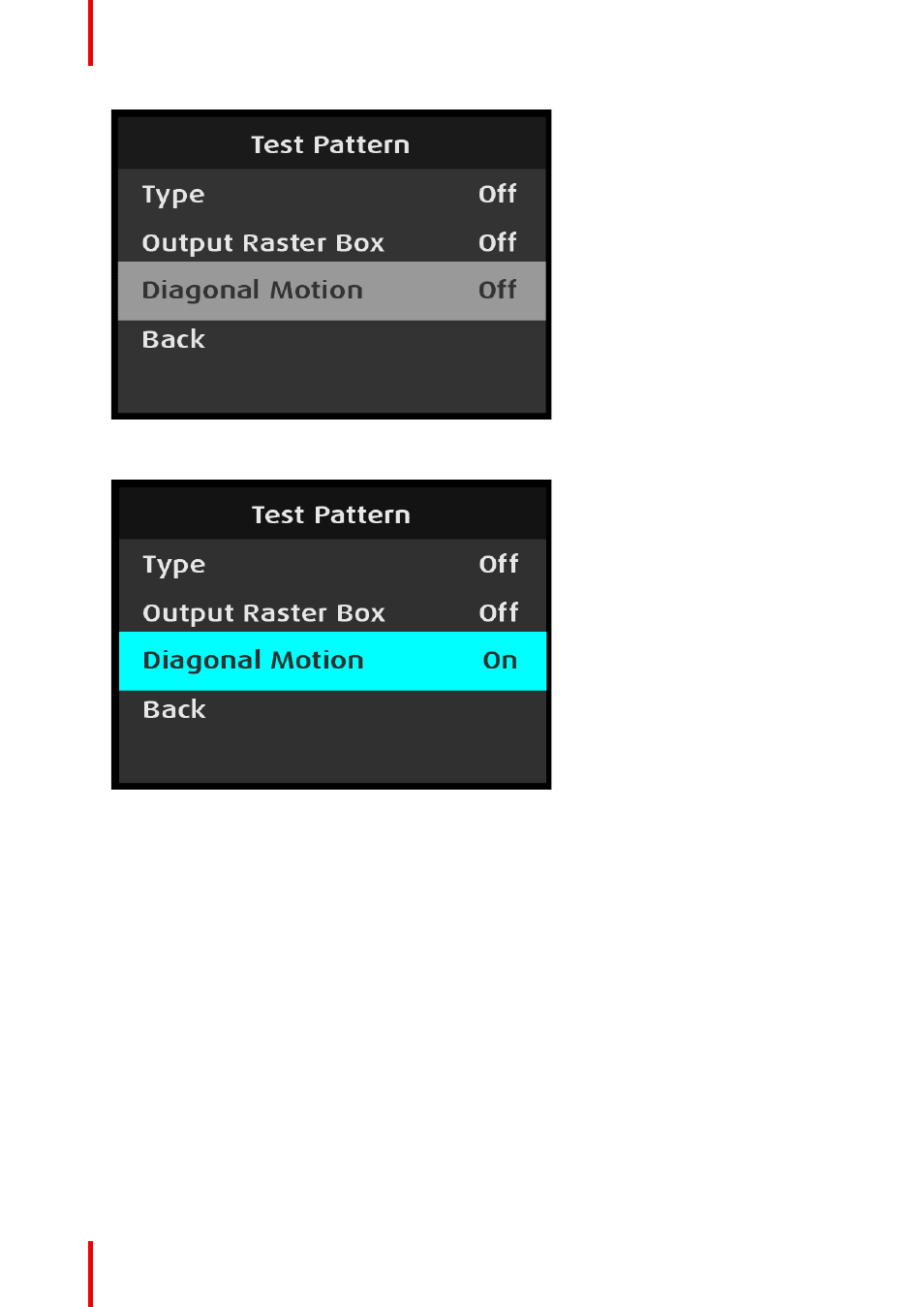

Image 6–140 Multiviewer: Test Pattern: Diagonal Motion selection
Once Diagonal Motion is selected, the highlight bar turns from gray to cyan.
Image 6–141 Multiviewer: Test Pattern: Diagonal Motion adjustment
2. Use the Adjust knob to toggle the diagonal motion between
Off
and
On
.
Back
returns to the Output menu.
Multiviewer: HDCP
HDCP Mode enables the HDCP setting for the multiviewer output. The default HDCP mode setting for HDMI is
Off.
1. Select
HDCP
from the Multiviewer menu to set up and apply HDCP settings for the multiviewer.
