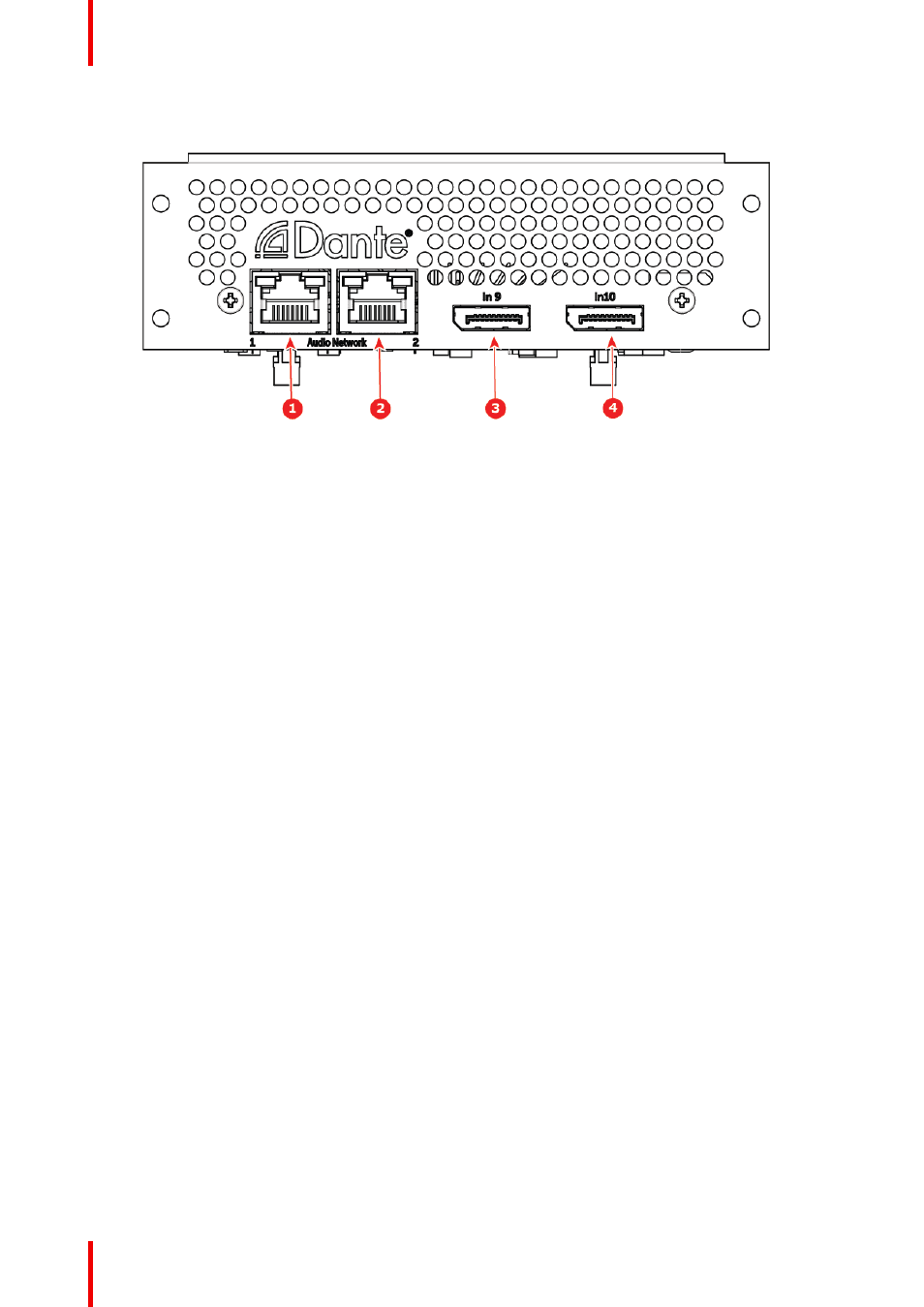

Image 4–4 PDS-4K DisplayPort 1.2 Input and Audio Card
1
Dante® Audio network port 1
2
Dante® Audio network port 2
3
Input 9
4
Input 10
Audio card description
1. Audio network
-
There are two audio network connectors
2. Inputs
-
There are two DisplayPort 1.2 inputs
Specifications of input and output video connections
On the PDS-4K DisplayPort 1.2 Input and Audio Card, each of the input connectors map to a corresponding
Source or Take button on the front panel.
DisplayPort1.2 specifications
•
DisplayPort per 1.2 specification
•
Pixel clock up to 600 MHz
-
Max pixel clock at 24 bits/pixel = 600 Mpix/sec
-
Max pixel clock at 30 bits/pixel = 480 Mpix/sec
-
Max pixel clock at 36 bits/pixel = 400 Mpix/sec
•
Supported formats:
-
Formats from as low as [email protected] up to 2560x1600@60 and 3840x1200@60 (30 bits)
-
4K/UHD supported:
◦
3840x2400/ 50/59.94/60 input via 1x DisplayPort
◦
3840x2160/ 50/59.94/60 input via 1x DisplayPort
•
EDID version 1.3 compatible
