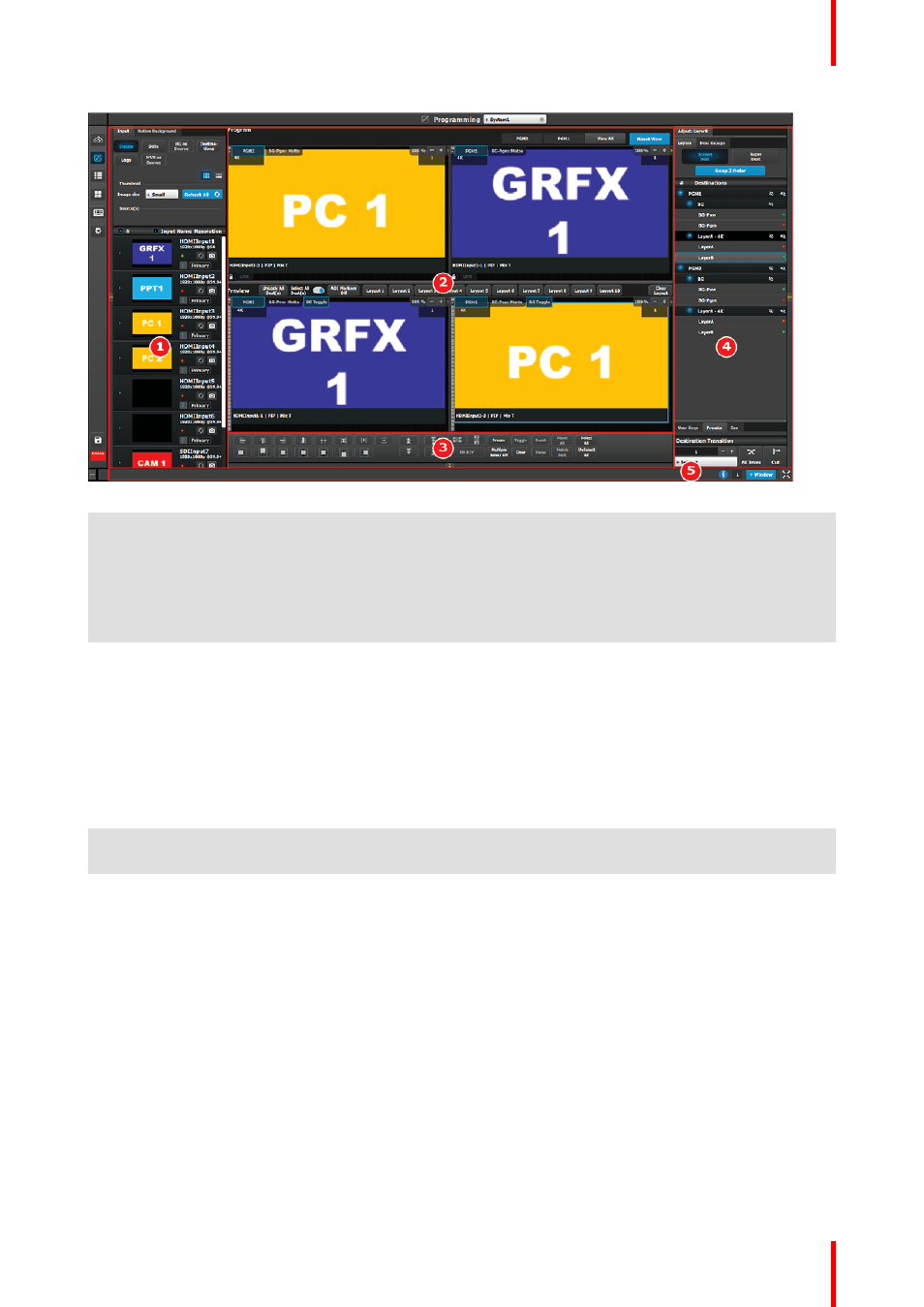

Image 7–3 EMTS GUI: Programming menu
1
Resources area
This area contains the available resources for
programming and playback, as inputs and
sources. Still images, Screen Destinations
(automatically re-inserted into the system), and
Background sources (automatically re-inserted
into the system) are also available as resources
to be used in a PIP or Keying Layer.
2
Workspace / Programming Diagram area
For each destination, the Program and Preview
screens can be viewed individually by selecting
the corresponding tab at the top of the
Programming Diagram area. Program and
Preview screens can be viewed individually or
simultaneously by selecting the individual
Destination tab or the “View All” tab.
The space between Program and Preview has
Layouts, a function where a certain group of
destinations can be laid out in the workspace
3
Workspace / Layer modification area
Layer Alignment adjustments and controls to
manage the Preview/Program screens.
