R5912621 /01 PDS–4K
156

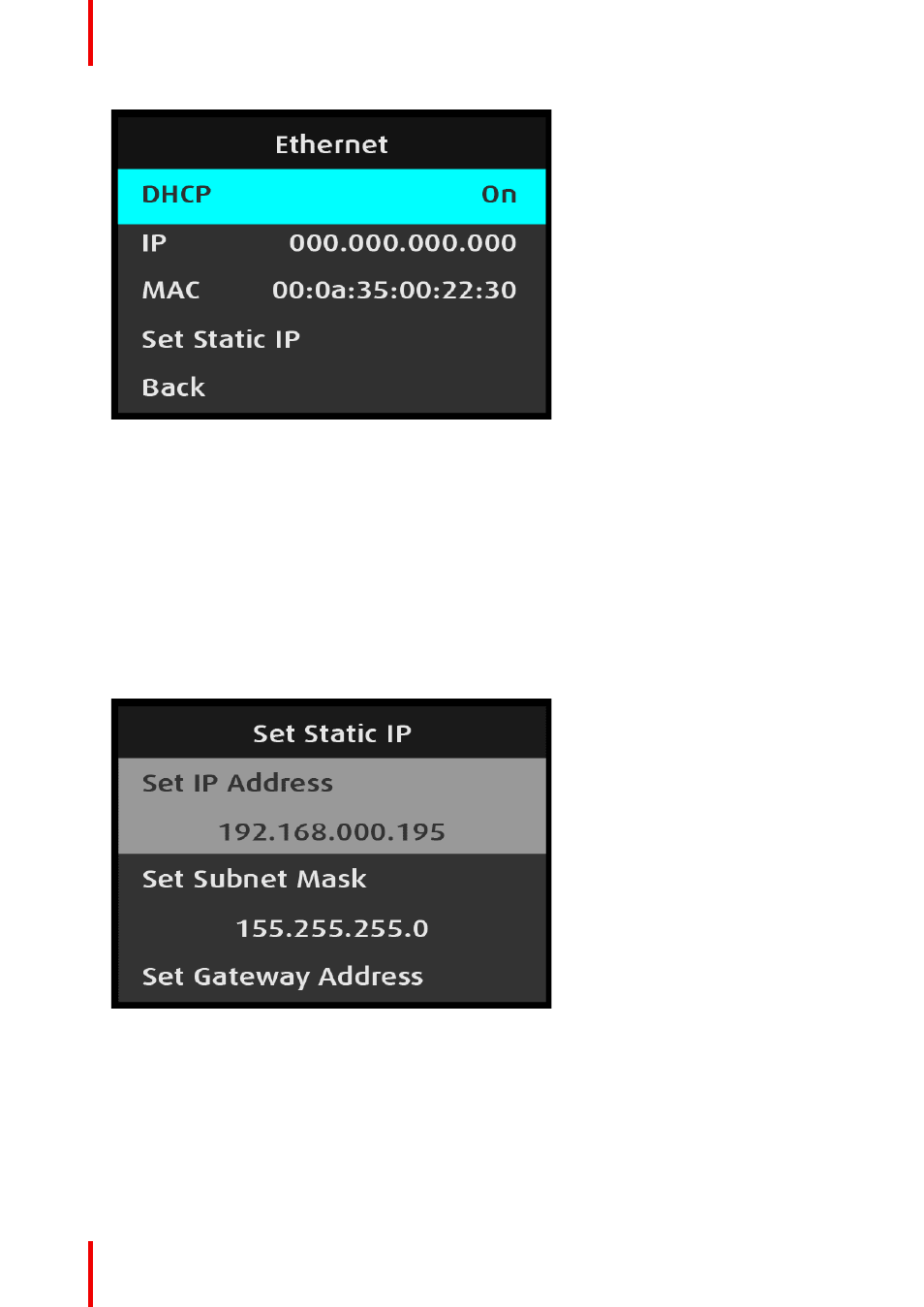

Image 6–259 Ethernet: DHCP adjustment
3. Turn the Adjust knob to toggle between DHCP
Off
and
On
, and press the Adjust knob to select the desired
value.
-
DHCP
allows the operator to choose whether or not to use the Dynamic Host Configuration Protocol.
The default DHCP setting is
Off
.
When DHCP is set to
On
, a device can have a different IP address every time it connects to the
network.
-
IP
reports the current IP address of the system.
-
MAC
reports the current MAC address of the system.
-
Set Static IP
allows the operator to set the IP Address, Subnet Mask, and Gateway Mask.
To set a static IP address...
1. Select
Set Static IP
from the Ethernet menu.
2. Select
Set IP Address
from the Set Static IP menu
Image 6–260 Set Static IP: Set IP Address selection
Once Set IP Address is selected, the highlight bar turns from gray to cyan, and the first portion of the IP
address is highlighted in green.
