135 R5912621 /01 PDS–4K

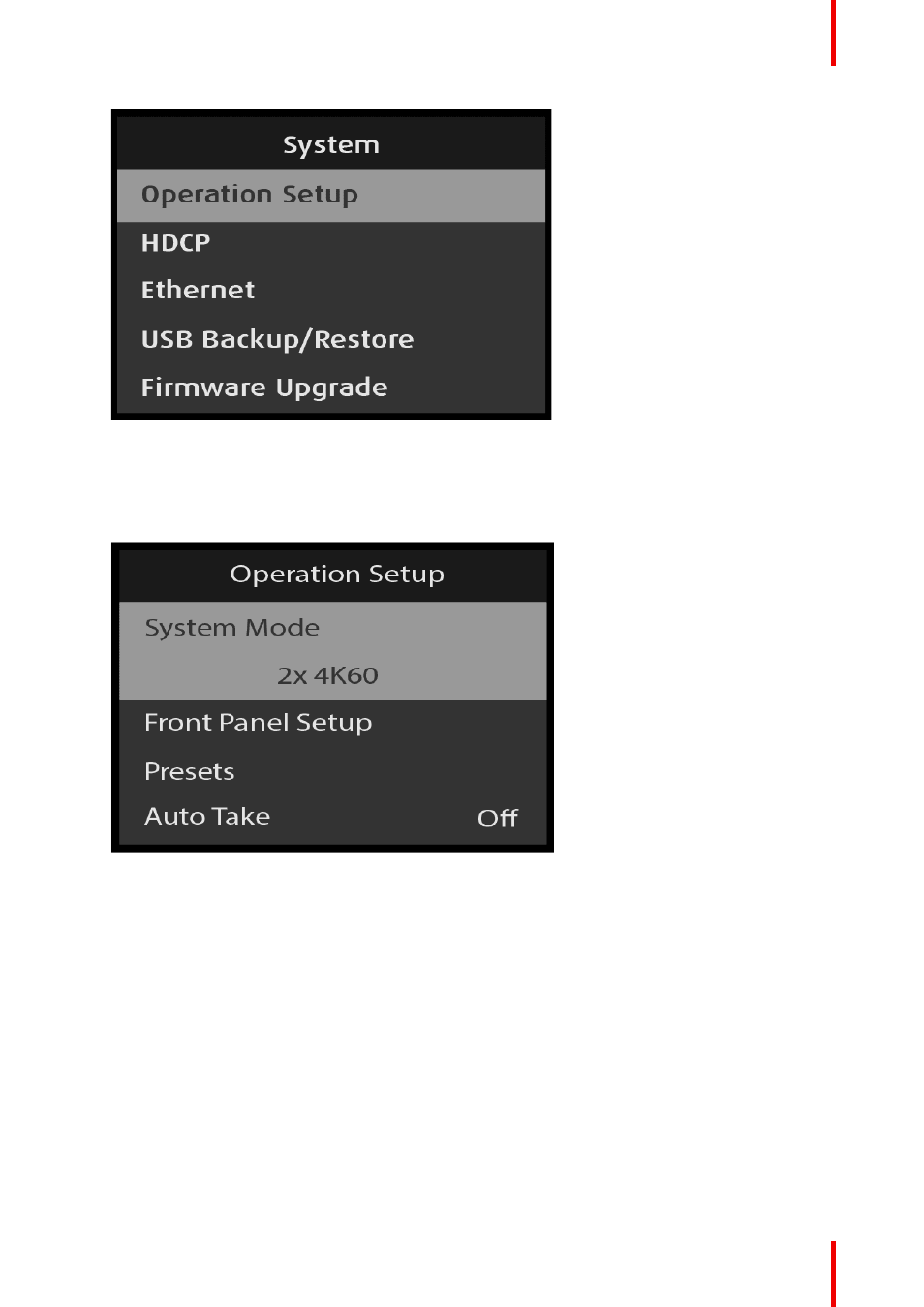

Image 6–215 System: Operation Setup selection
Operation Setup: System Mode
Use Operation Setup: Mode to view the output mode.
1. Select System Mode on the Operation Setup menu.
Image 6–216 Operation Setup: Mode selection
Operation Setup: System Mode is used to switch between: 2x 4K60 and 4x 4K30 output.
-
2x 4K60 Mode configures the system to process all inputs and two Program outputs up to a maximum
format of 3840x2400 @60Hz.
- 4x 4K30 Mode configures the system to process all inputs and four Program outputs up to a maximum
format of 3840x2400 @30Hz.
Operation Setup: Front Panel Setup
Use Operation Setup: Front Panel Setup to adjust the operation of the front-panel buttons.
1. Select Front Panel Setup on the Operation Setup menu.
Menu orientation
