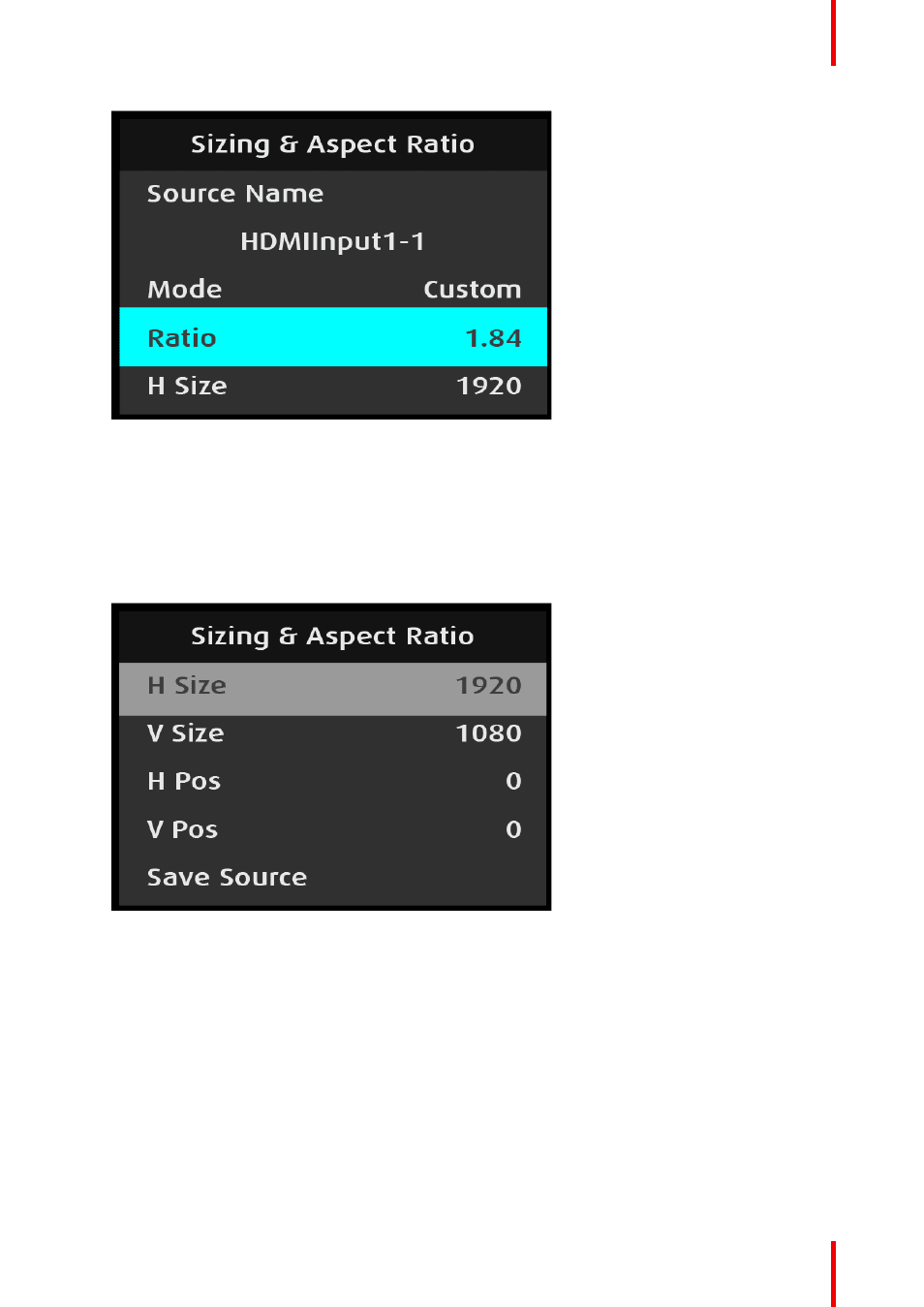

Image 6–33 Aspect ratio adjustment with “Custom” mode
Sizing & Aspect Ratio: H Size, V Size, H Pos, V Pos, Save Source, and Reset
Use the Sizing & Aspect Ratio size and position menus to adjust or reset the size and position of the input
source. The adjustment procedure for H Size, V Size, H Pos, and V Pos is the same for all four adjustments.
The H Size adjustment is illustrated here.
Reset
returns the sizing and position adjustments to their original settings.
1. Select
H Size
from the Sizing & Aspect Ratio menu.
Image 6–34 Sizing & Aspect Ratio: H Size selection
Once H Size is selected, the highlight bar turns from gray to cyan.
2. Use the Adjust knob to adjust the H-size value.
