7.6 EMTS GUI: Settings menu
Description
The Settings menu provides access to the Event Master series processor web app that is built into the unit.
The app provides users with diagnostic reports, includes an FAQ section and contact information and supports
system backup / restore and new firmware installation.

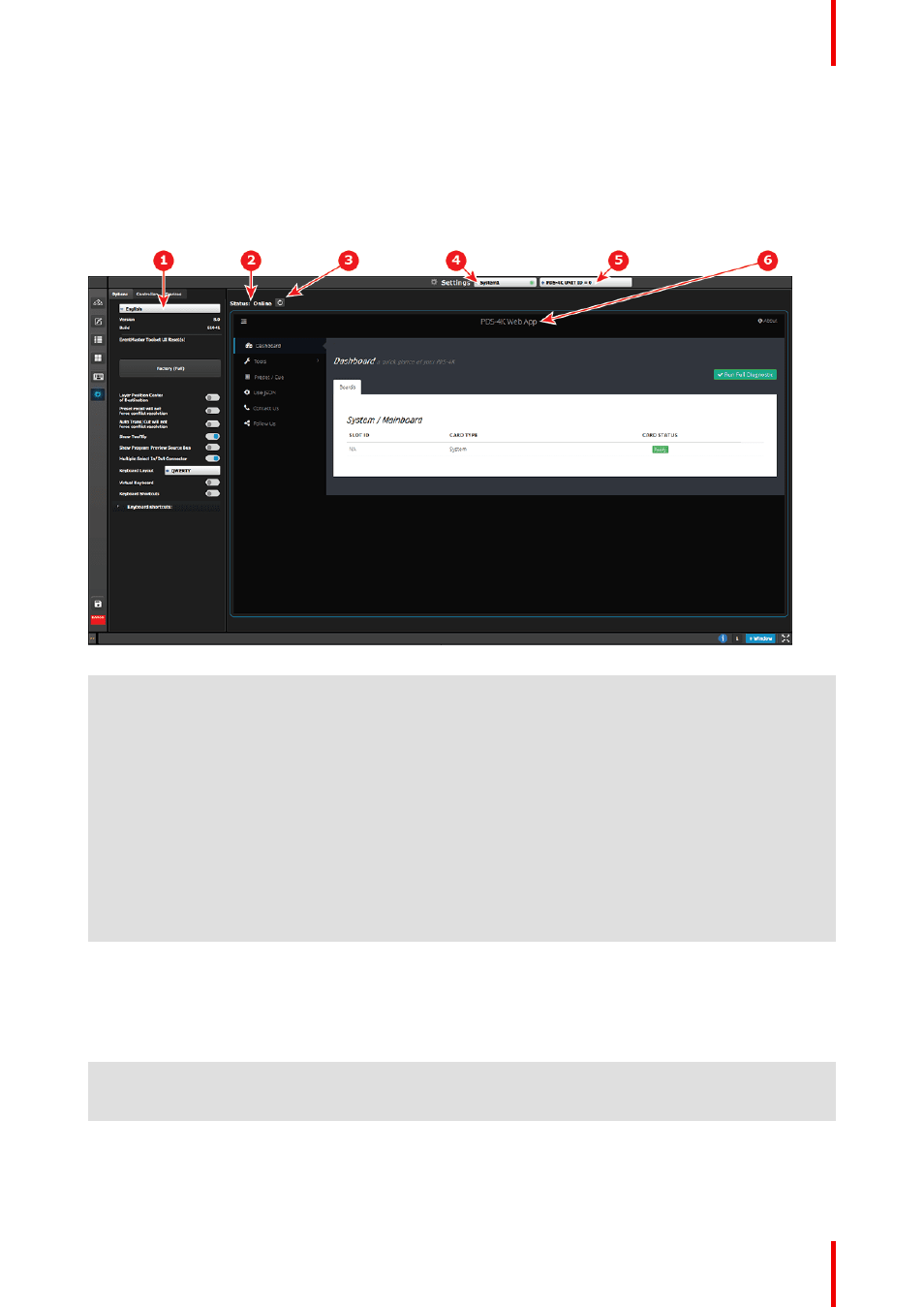

Image 7–6 EMTS GUI: Settings menu
1
Resources area
The Resources area contains the Options,
Controller, and Devices tabs.
•
The Controller tab shows EC series controller
settings and is applicable only when an EC
series controller is connected on the network
or to a computer running the EMTS.
•
The Devices tabs shows what Barco devices
(such as projectors) are detected on the
network.
•
The Option tab allows the user to choose
settings concerning the Event Master Toolset
Software.
Please see the sections below dedicated to
these options.
2
Status
Show status:
•
Online
: the VP is online and the web
application can be reached.
•
Web application error
: the VP is online but
the web application cannot be displayed.
•
Offline
(in red text): the VP is offline.
3
Refresh Web app area button
Similar to web browser, pressing this button will
trigger an attempt to refresh / reconnect to the
web interface of the selected VP.
4
System select combo box
Informs the users which System is currently
being selected. If there is more than one System
defined in the UI, this combo box can be used to
select between the different Systems.
