185

R5912621 /01 PDS–4K

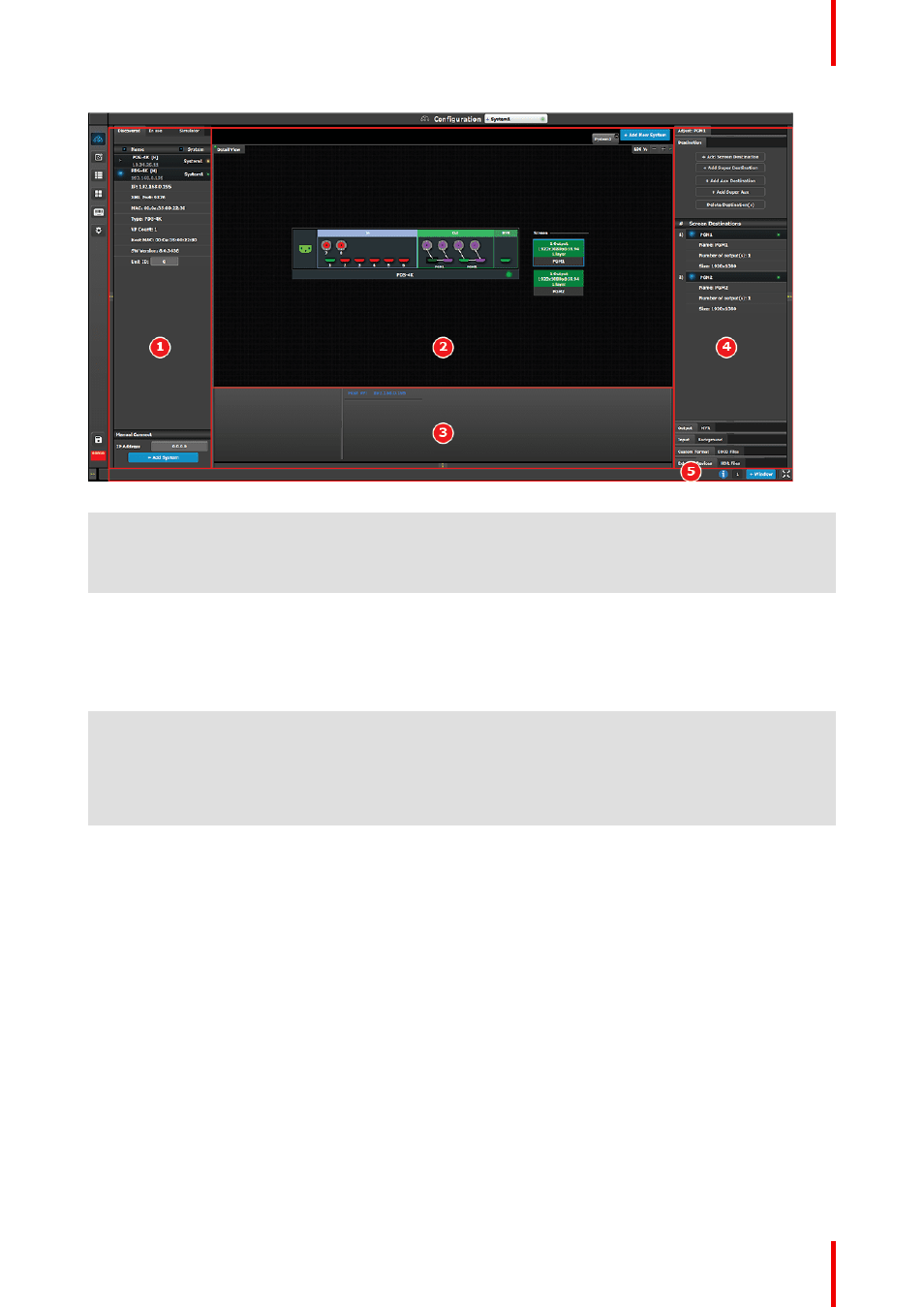

Image 7–2 EMTS GUI: Configuration menu

1

Network resource area

Available resources on the network are listed in
this area. There are 2 tabs in this section:

Devices in use in the selected system.

Discovered devices on the local network.

2

System diagram area

The workspace has two different views: System,
Detail, and VPU Resource.
The selected systems details are graphically
represented in this area. To view a different
system you select the corresponding tab from
the top of the working area.

3

System modifier area

System information (Host VP and Unit ID) is
displayed in this area. To view a different system
you select the corresponding tab from the top of
the working area.
This area also includes controls for preset
conflicts.

Event Master Toolset
