7.1 Screen layout presentation
General
The user interface is organized around a menu navigation bar at the left of the screen and a working area in
the rest of the screen. The layout of the screens is similar throughout the GUI.
Image 7–1 shows the start-up screen of the Configuration Menu and describes the different components. The
screens for the other menus follow the same structure and flow.

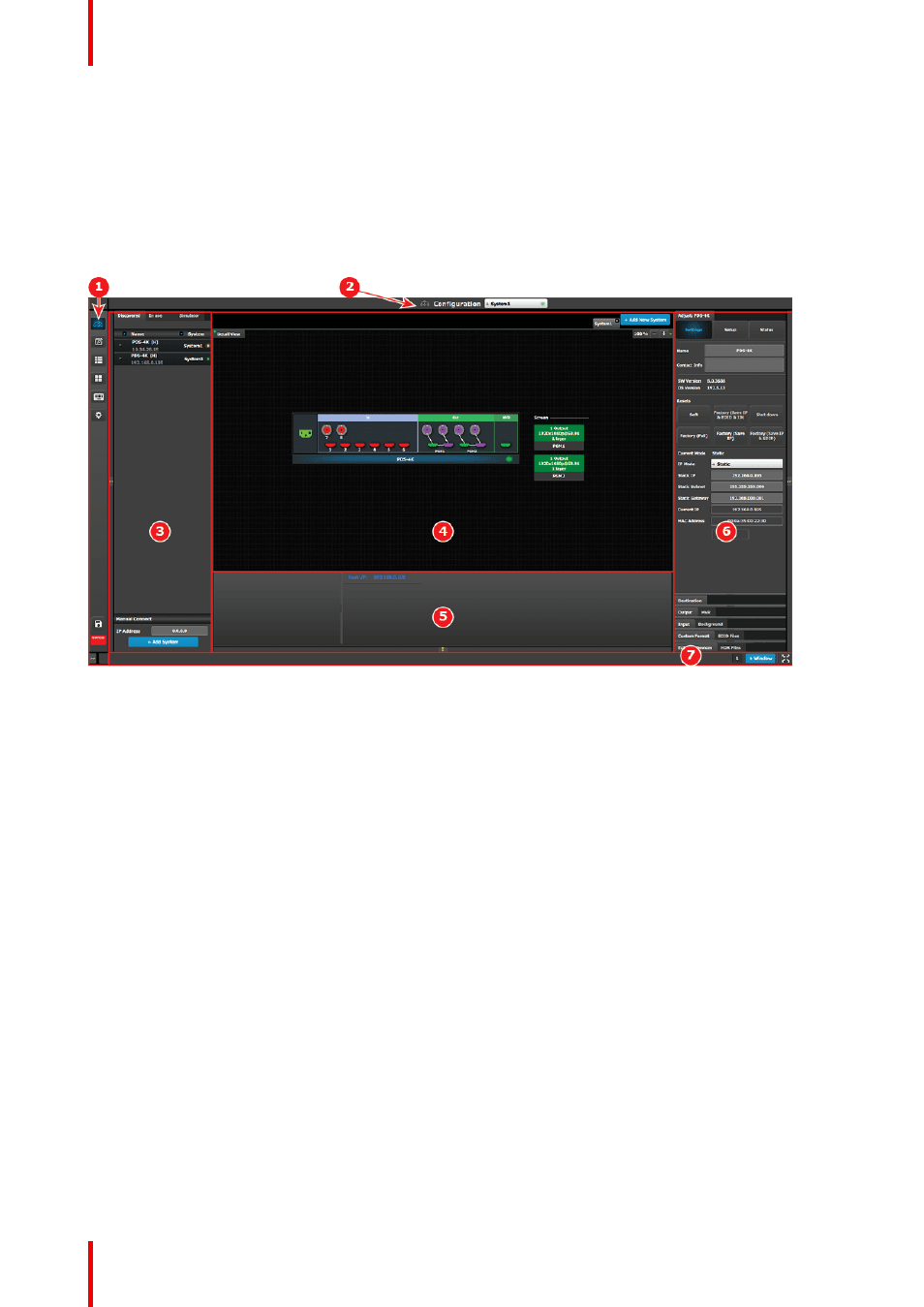

Image 7–1 EMTS GUI orientation
1 Menu navigation bar – The menu navigation bar allows the
user to choose from among the available menus:
Configuration, Programming, Cue, Multiviewer, Controller, or
Settings.
2 Title bar – The title bar shows the current menu and the
currently selected system.
3 Selection area – The selection area contains tabs for
“Discovered” systems and systems “In use.” It also contains
a field for entering IP addresses and a button for adding
systems.
4 Diagram area – The diagram area contains graphic
representations of the system in use.
5 Modifier area – The modifier area contains system controls,
such as Preset Conflict Mode.
6 Configuration area – The Configuration area contains tabs
and panels on which users perform all needed adjustments.
This area is largely empty until the user selects an item from
the Diagram area.
7 Bottom bar – The right side of the bottom bar has control for
windows and maximizing the screen. The number indicates if
this is window 1 or 2; two is the maximum.
7.2 EMTS GUI: Configuration menu
Description
Use the Configuration Menu to add or remove devices to the selected system and to modify the parameters
(backgrounds, destinations, inputs, outputs, etc.) of these devices. This page is the first page that appears
when you launch the EM GUI software.
