R5912621 /01 PDS–4K

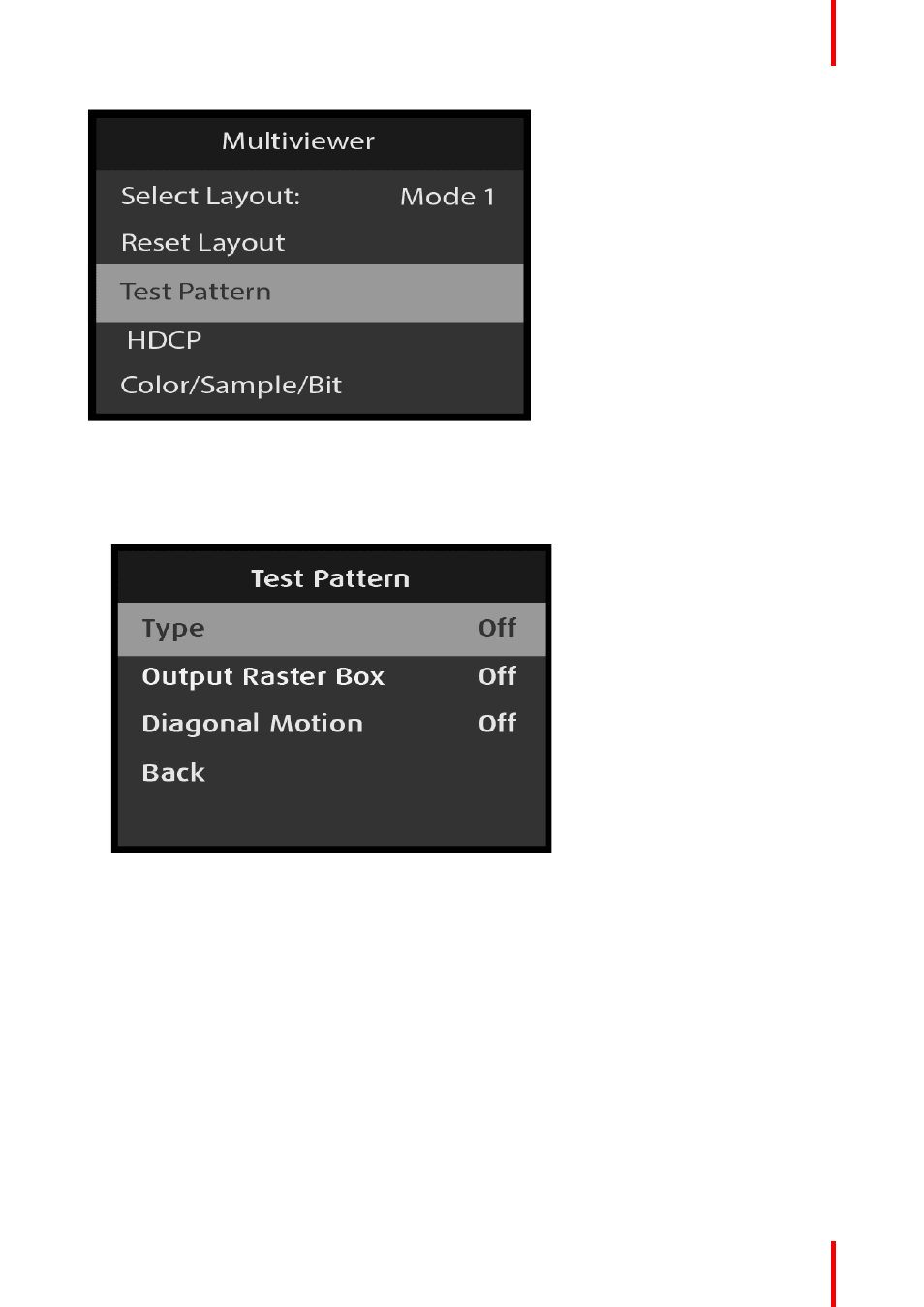

Image 6–134 Multiviewer: Test Pattern selection
Multiviewer: Test Pattern: Type
Use Type to select the desired test pattern
1. Scroll to and select
Type
from the Test Pattern menu.
Image 6–135 Multiviewer: Test Pattern: Type selection
Once Type is selected, the highlight bar turns from gray to cyan.
