R5912621 /01 PDS–4K 96

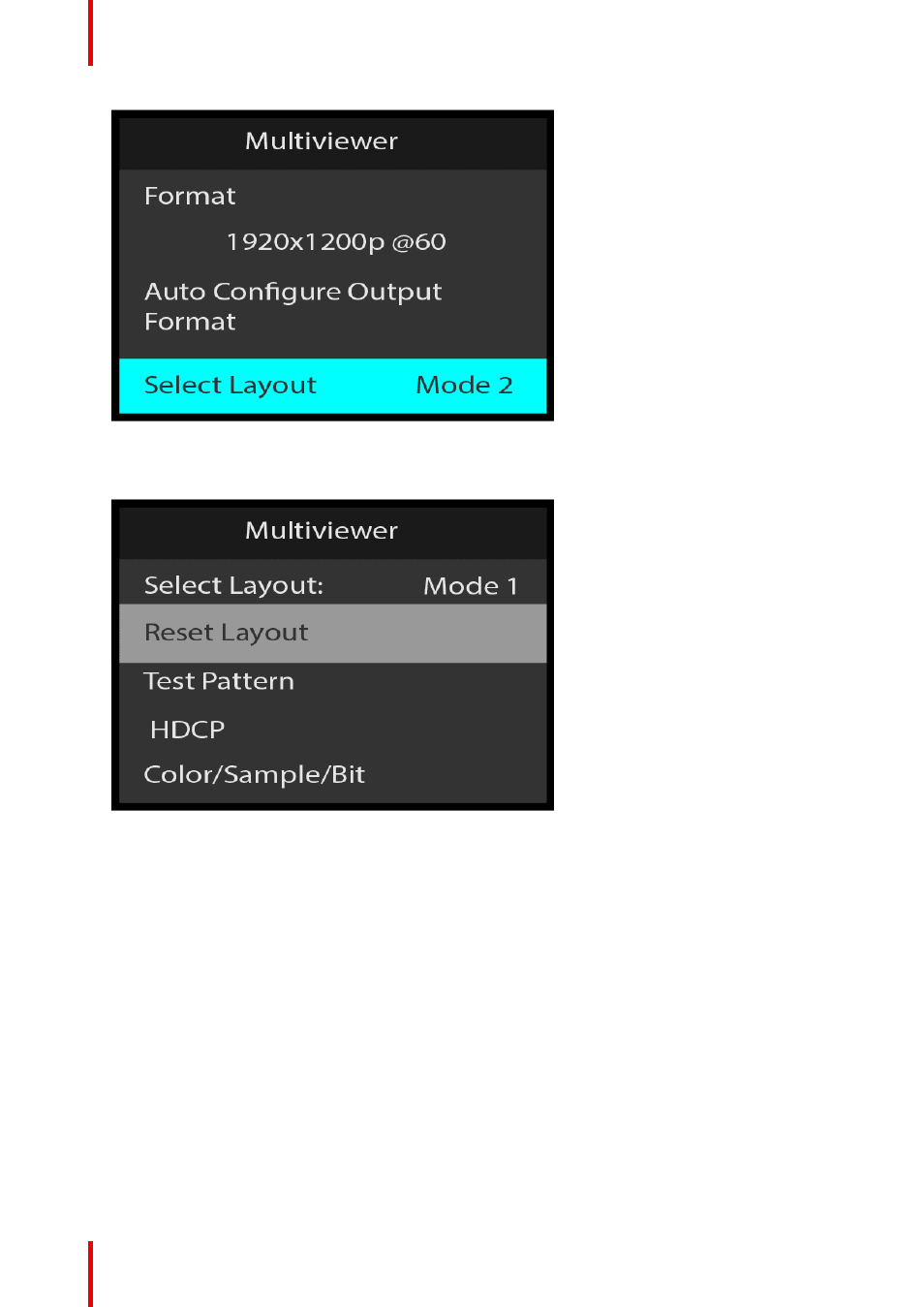

Image 6–132 Adjusting Select Layout
3. Reset Layout is used to revert any changes made using the Event Master Toolset to the currently
displayed Multiviewer Layout.
Image 6–133 Multiviewer: Reset Layout
Multiviewer: Test Pattern
Use the Test Pattern to select and adjust multiviewer output test patterns.
1. Scroll to and select Test Pattern on the Multiviewer menu.
Menu orientation
