Output: area of interest – Barco PDS-4K HDMI Presentation Switcher User Manual
Page 76
R5912621 /01 PDS–4K
76

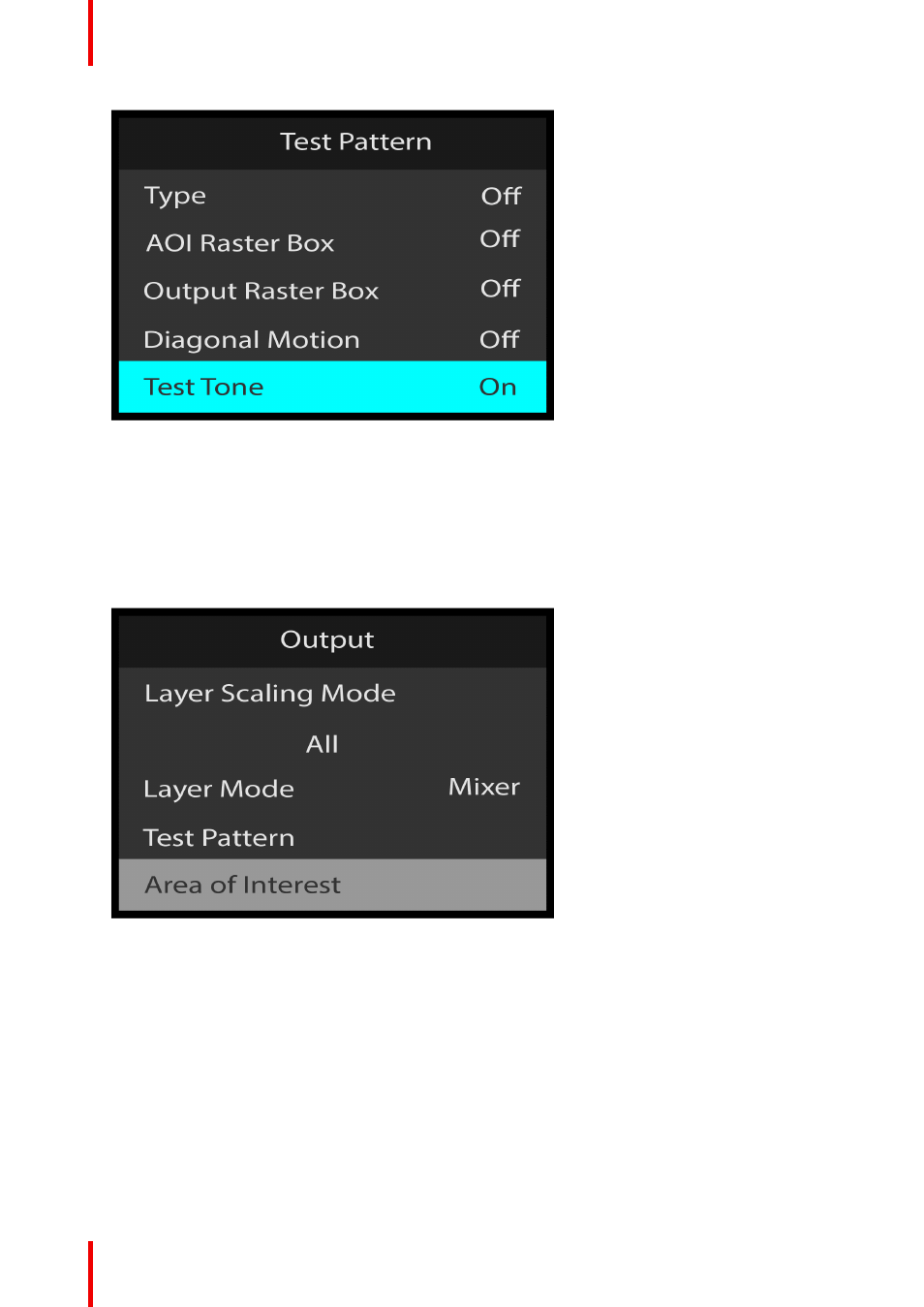

Image 6–88 Test Pattern: Test Tone adjustment
2. Use the Adjust knob to toggle the test tone between
off
and
on.
Output: Area of Interest
Use the Area of Interest menu to adjust the H Size, V Size, H Pos, and V Pos of the area of interest (AOI) of
the output. The adjustment procedure is the same for all four adjustments. The H Pos adjustment is illustrated
here.
1. Select
Area of Interest
on the Output menu.
Image 6–89 Output: Area of Interest selection
Selecting Area of Interest opens the Area of Interest menu.
2. Scroll to and select
H Pos
on the Area of Interest menu.
