Datum Setting with 3-D Touch Probe 12.8
12
TNC 320 | User's Manual HEIDENHAIN Conversational Programming | 5/2013
419
Setting the datum in the intersection of multiple holes:
Preposition the touch probe approximately in the
center of the hole
Hole is to be probed automatically: Define by soft
key
To probe the workpiece, press the machine
START button. The touch probe probes the circle
automatically.
Repeat the probing procedure for the remaining
elements
Terminate the probing procedure and switch to the
evaluation menu: Press the EVALUATE soft key
Datum: In the menu window, enter both
coordinates of the circle center, confirm with the
SET DATUM soft key, or write the values to a table
(See "Writing measured values from the touch
probe cycles in a datum table", page 404, or See
"Writing measured values from the touch probe
cycles in the preset table", page 405)
Terminate the probing function: Press the END
soft key

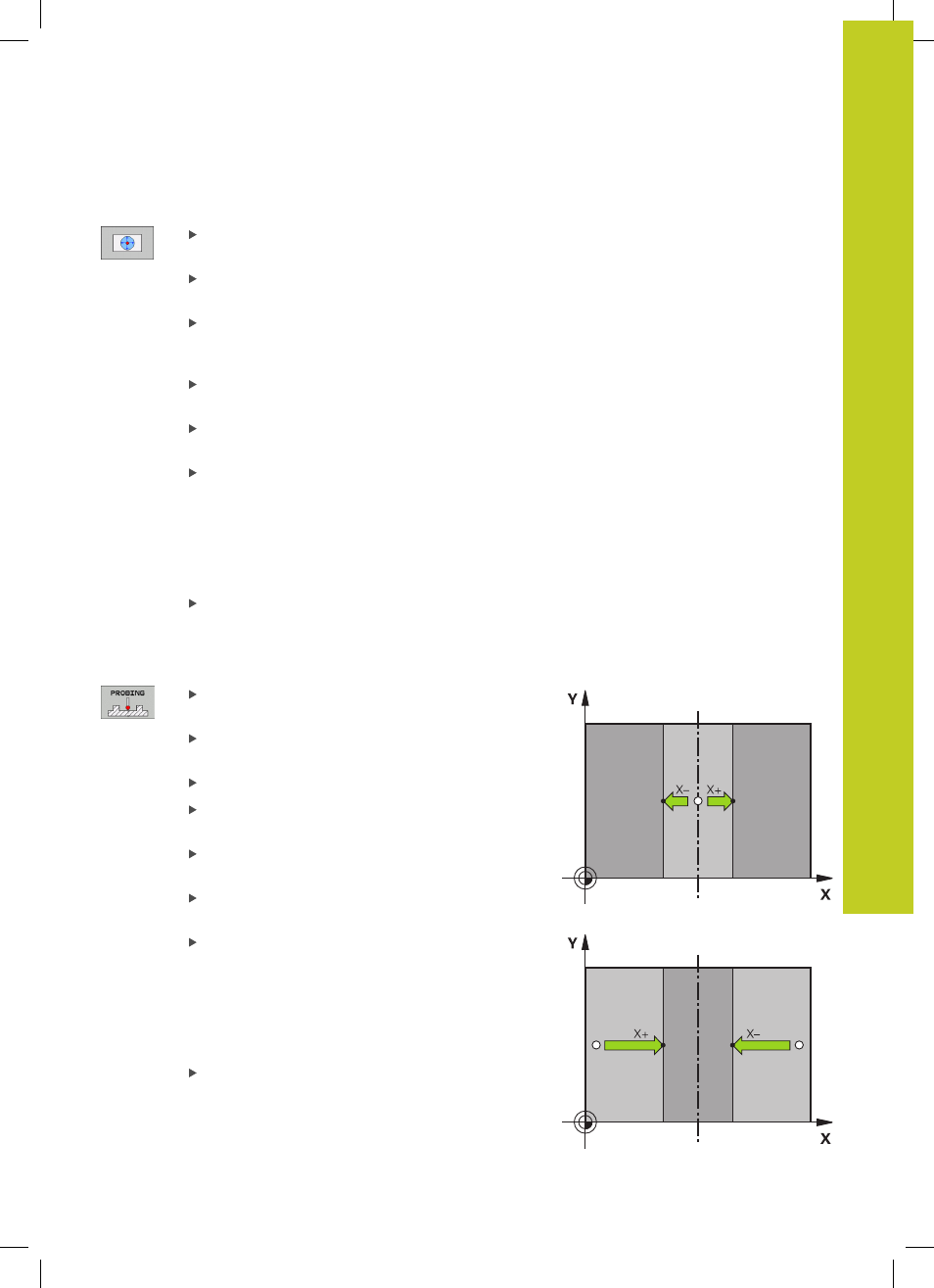

Setting a center line as datum
Select the probe function: Press the PROBING
soft key
Position the touch probe at a position near the first
touch point
Select the probing direction by soft key
Start the probing procedure: Press the NC Start
button
Position the touch probe at a position near the
second touch point
Start the probing procedure: Press the NC Start
button
Datum: Enter the coordinate of the datum in the
menu window, confirm with the SET DATUM soft
key, or write the value to a table (See "Writing
measured values from the touch probe cycles in a
datum table", page 404, or See "Writing measured
values from the touch probe cycles in the preset
table", page 405.
Terminate the probing function: Press the END key
