The PLANE Function: Tilting the Working Plane (Software Option 1)
11.2
11
TNC 320 | User's Manual HEIDENHAIN Conversational Programming | 5/2013
357

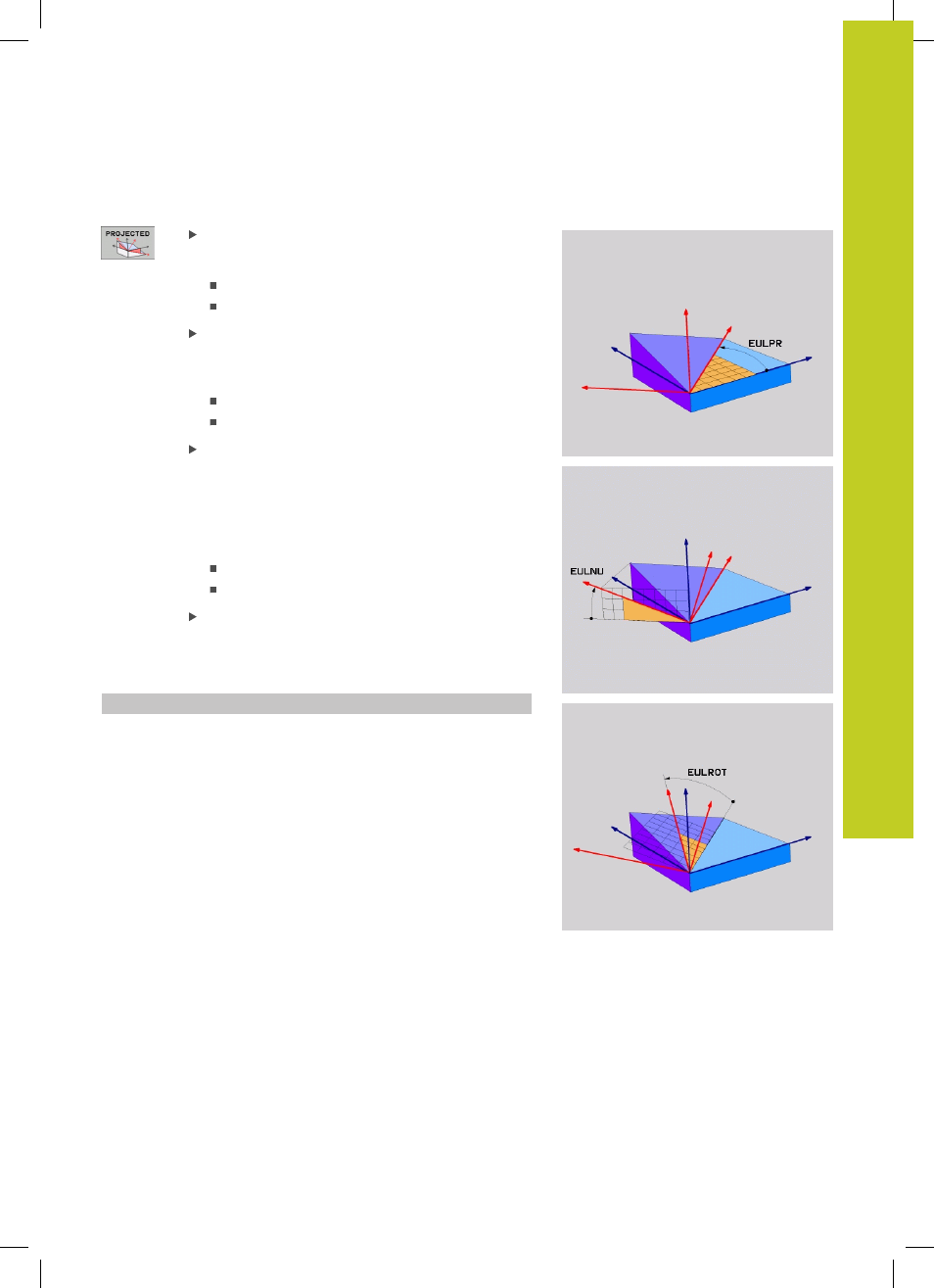

Input parameters
Rot. angle main coordinate plane?: Rotary angle
EULPR around the Z axis (see figure at top right).
Please note:
Input range: –180.0000° to +180.0000°
The 0° axis is the X axis
Swivel angle of tool axis?: Tilting angle EULNU of
the coordinate system around the X axis shifted by
the precession angle (see figure at center right).
Please note:
Input range: 0° to +180.0000°
The 0° axis is the Z axis
ROT angle of the tilted plane?: Rotation EULROT
of the tilted coordinate system around the tilted
Z axis (corresponds to a rotation with Cycle 10
ROTATION). Use the rotation angle to simply
define the direction of the X axis in the tilted
machining plane (see figure at bottom right).
Please note:
Input range: 0° to 360.0000°
The 0° axis is the X axis
NC block
5 PLANE EULER EULPR45 EULNU20 EULROT22 .....
