Programming: Multiple Axis Machining

11.2

The PLANE Function: Tilting the Working Plane (Software Option 1)

352

TNC 320 | User's Manual HEIDENHAIN Conversational Programming | 5/2013

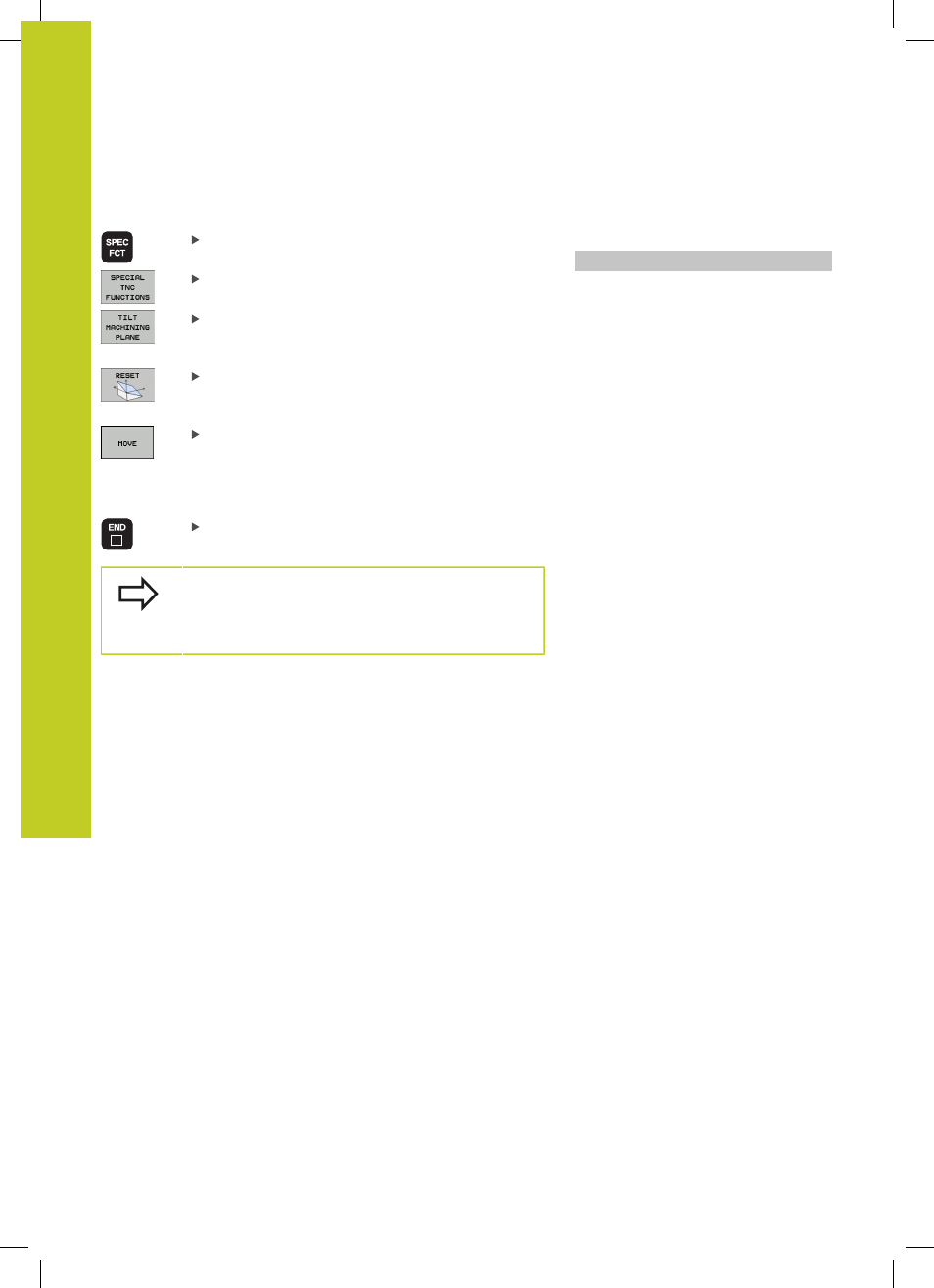

Resetting the PLANE function

Show the soft-key row with special functions

Select special TNC functions: Press the SPECIAL
TNC FUNCT. soft key

Select the PLANE function: Press the TILT
MACHINING PLANE soft key: The TNC displays the
available definition possibilities in the soft-key row

Select the Reset function. This internally resets the
PLANE function, but does not change the current
axis positions

Specify whether the TNC should automatically
move the rotary axes to the default setting

(MOVE

TURN) or not (STAY)See "Automatic positioning:

Terminate the entry: Press the END key

The

PLANE RESET function resets the current PLANE

function—or an active cycle

19—completely (angles

= 0 and function is inactive). It does not need to be
defined more than once.

NC block

25 PLANE RESET MOVE ABST50 F1000
