Path contours – Polar coordinates 6.5
6
TNC 320 | User's Manual HEIDENHAIN Conversational Programming | 5/2013
195

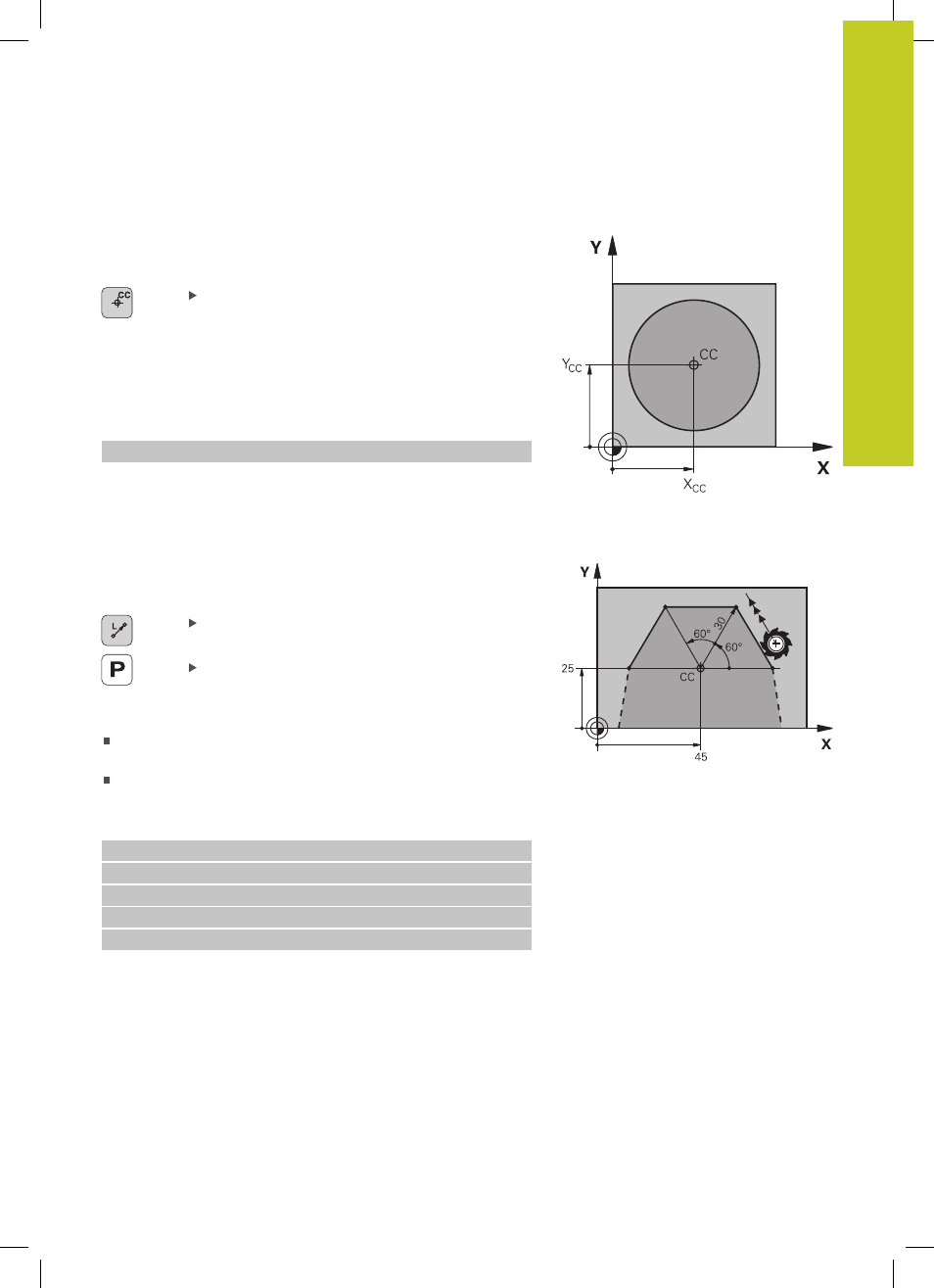

Zero point for polar coordinates: pole CC
You can define the pole CC anywhere in the part program before
blocks containing polar coordinates. Set the pole in the same way
as you would program the circle center.
Coordinates: Enter Cartesian coordinates
for the pole or, if you want to use the last
programmed position, enter No coordinates.
Before programming polar coordinates, define the
pole. You can only define the pole in Cartesian
coordinates. The pole remains in effect until you
define a new pole.
Example NC blocks
12 CC X+45 Y+25
Straight line LP
The tool moves in a straight line from its current position to the
straight-line end point. The starting point is the end point of the
preceding block.
Polar coordinate radius PR: Enter the distance
from the pole CC to the straight-line end point
Polar coordinate angle PA: Angular position of the
straight-line end point between –360° and +360°
The sign of PA depends on the angle reference axis:
If the angle from the angle reference axis to
PR is
counterclockwise:
PA>0
If the angle from the angle reference axis to
PR is clockwise:
PA<0
Example NC blocks
12 CC X+45 Y+25
13 LP PR+30 PA+0 RR F300 M3
14 LP PA+60
15 LP IPA+60
16 LP PA+180
