Programming: Multiple Axis Machining
11.2
The PLANE Function: Tilting the Working Plane (Software Option 1)
11
356
TNC 320 | User's Manual HEIDENHAIN Conversational Programming | 5/2013
Abbreviations used:
PROJECTED
Projected
PROPR
Principle plane
PROMIN
Minor plane
PROMIN
Rotation
Defining the working plane with the Euler angle:
PLANE EULER
Application
Euler angles define a machining plane through up to three
rotations about the respectively tilted coordinate system
. The
Swiss mathematician Leonhard Euler defined these angles. When
applied to the machine coordinate system, they have the following
meanings:

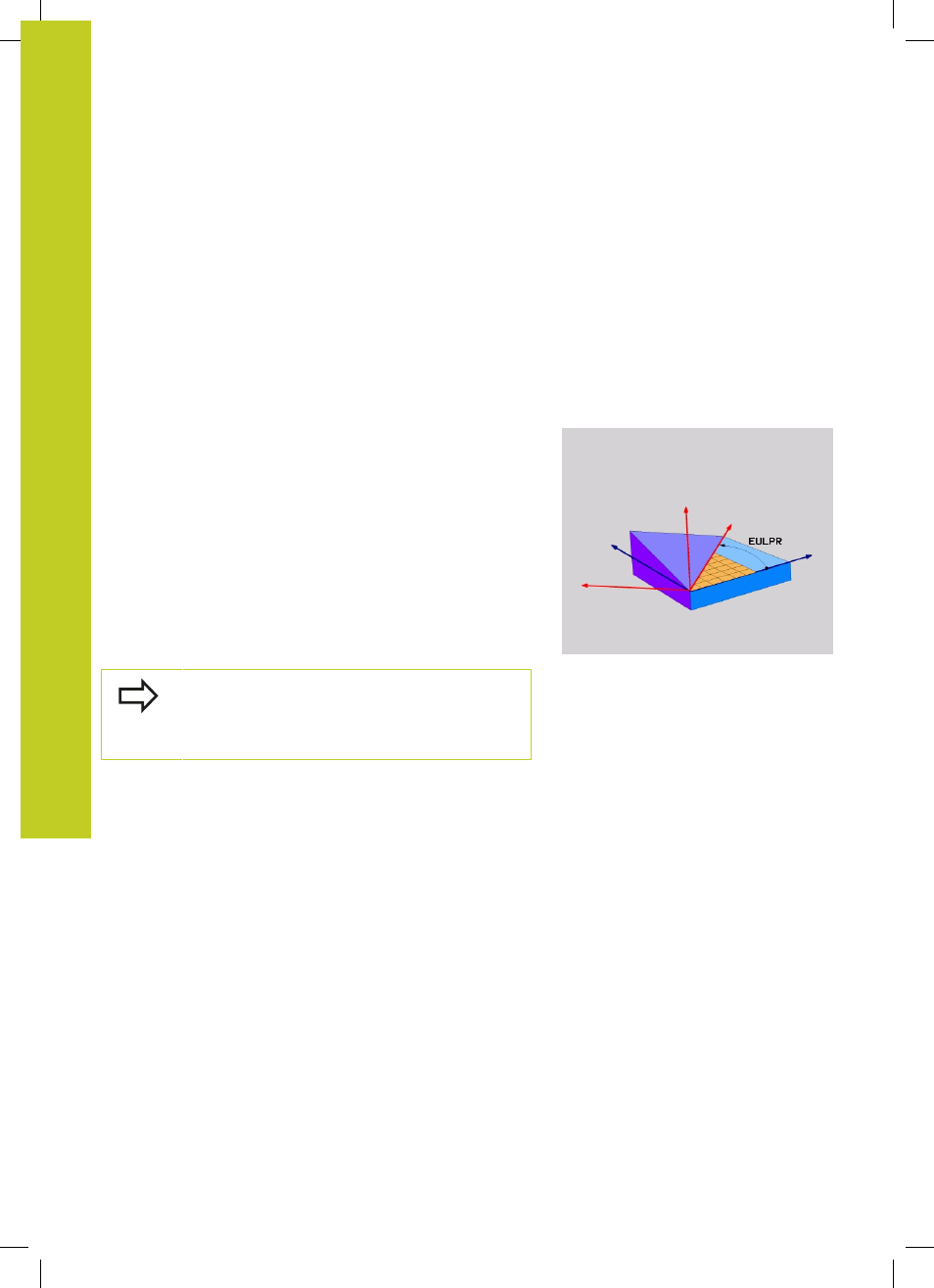

Precession angle:
EULPR
Rotation of the coordinate system
around the Z axis
Nutation angle:
EULNU
Rotation of the coordinate system
around the X axis already shifted by the
precession angle
Rotation angle:
EULROT
Rotation of the tilted machining plane
around the tilted Z axis
Before programming, note the following
Parameter description for the positioning behavior:
See "Specifying the positioning behavior of the
PLANE function", page 365.
