The PLANE Function: Tilting the Working Plane (Software Option 1) 11.2
11
TNC 320 | User's Manual HEIDENHAIN Conversational Programming | 5/2013
351

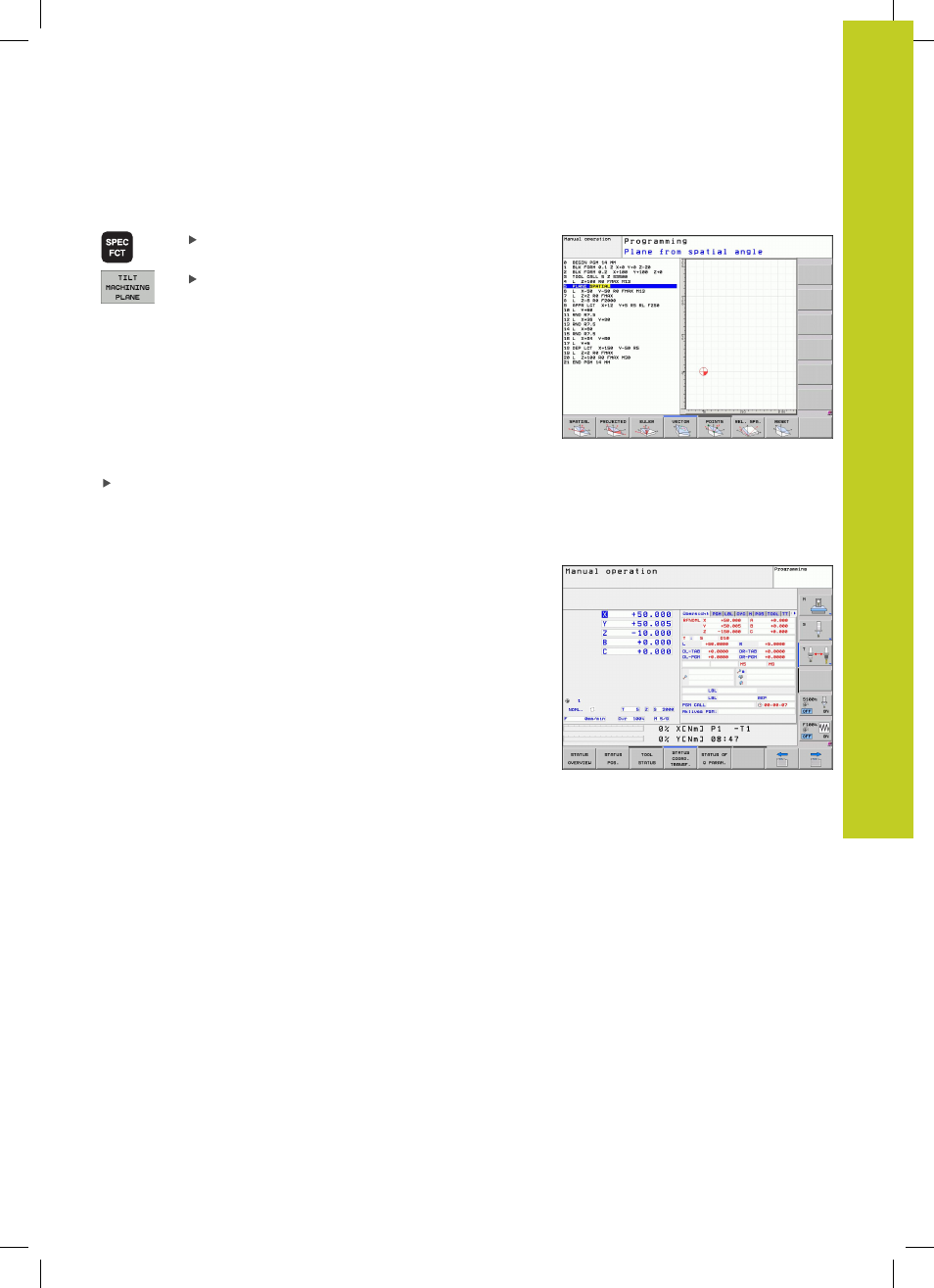

Defining the PLANE function
Show the soft-key row with special functions
Select the
PLANE function: Press the TILT
MACHINING PLANE soft key: The TNC displays
the available definition possibilities in the soft-key
row
Selecting functions
Select the desired function by soft key. The TNC continues the
dialog and requests the required parameters
Position display
As soon as a
PLANE function is active, the TNC shows the
calculated spatial angle in the additional status display (see figure).
As a rule, the TNC internally always calculates with spatial angles,
independent of which
PLANE function is active.
During tilting (
MOVE or TURN mode) in the Distance-To-Go mode
(
DIST), the TNC shows (in the rotary axis) the distance to go (or
calculated distance) to the final position of the rotary axis.
