Programming: Tools
5.3 Tool compensation
5
164
TNC 320 | User's Manual HEIDENHAIN Conversational Programming | 5/2013

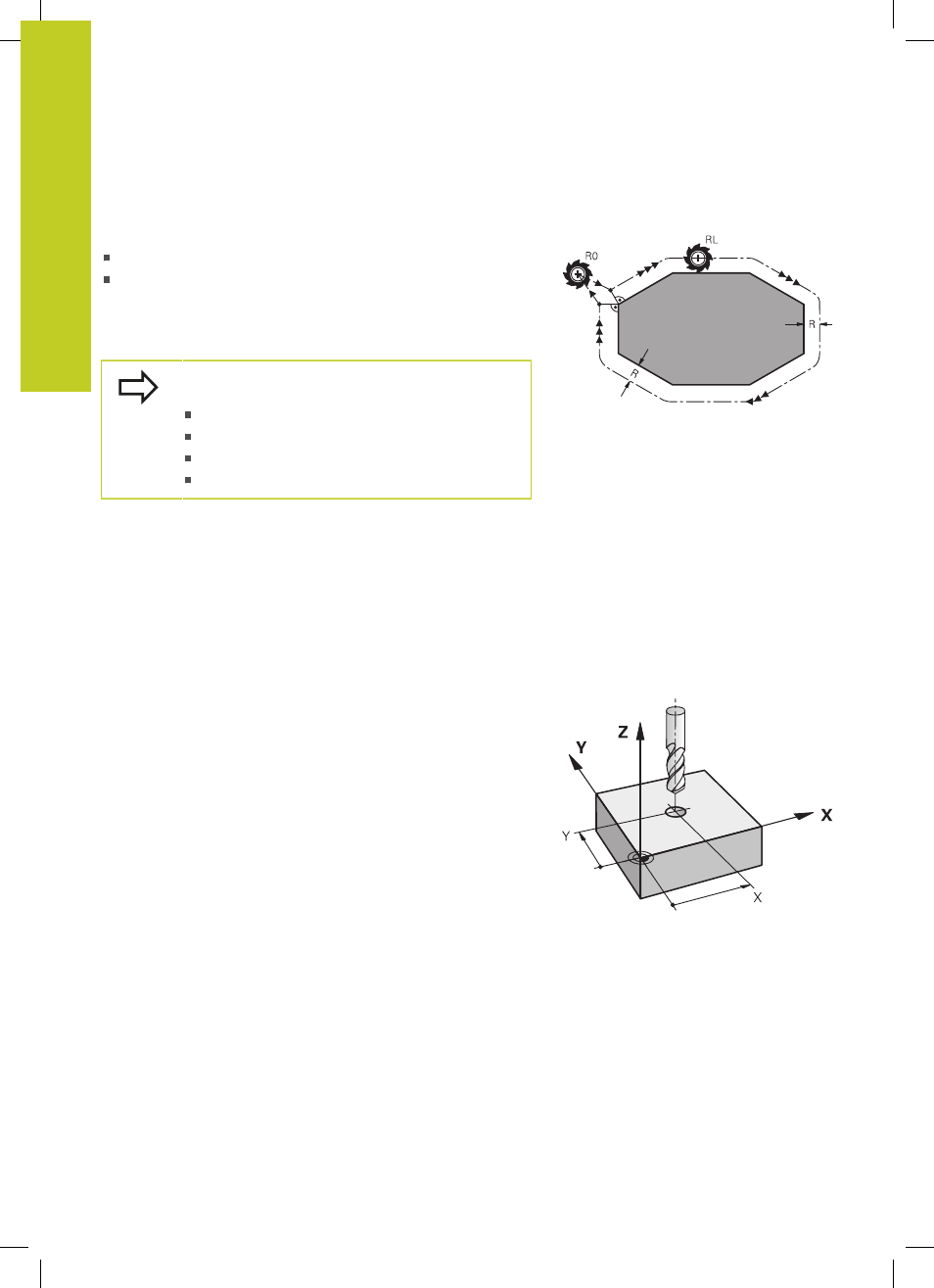

Tool radius compensation
The block for programming a tool movement contains:
RL or RR for radius compensation
R0 if there is no radius compensation
Radius compensation becomes effective as soon as a tool is called
and is moved with a straight line block in the working plane with
RL
or RR.
The TNC automatically cancels radius compensation
if you:
program a straight line block with R0
depart the contour with the
DEP function
program a
PGM CALL
Select a new program with PGM MGT
For radius compensation, the TNC takes the delta values from both
the
TOOL CALL block and the tool table into account:
Compensation value =
R + DR
TOOL CALL
+
DR
TAB
where
R:
Tool radius
R from the TOOL DEF block or tool table
DR
TOOL CALL
: Oversize for radius
DR in the TOOL CALL block
DR
TAB
: Oversize for radius DR in the tool table
Contouring without radius compensation: R0
The tool center moves in the working plane along the programmed
path or to the programmed coordinates.
Applications: Drilling and boring, pre-positioning
