5-1

Chapter 5. FRONT PANEL

OPERATIONS

5.1

F

RONT

P

ANEL

The modem front panel (Figure 5-1) enables control of modem configuration parameters
and displays the modem status.

POWER ON
SYNC

TRANSMITTER ON
TEST MODE

TRANSMIT
STORED

TRANSMIT

ENTER

CLEAR

ALARMS

Modulator

FAULTS

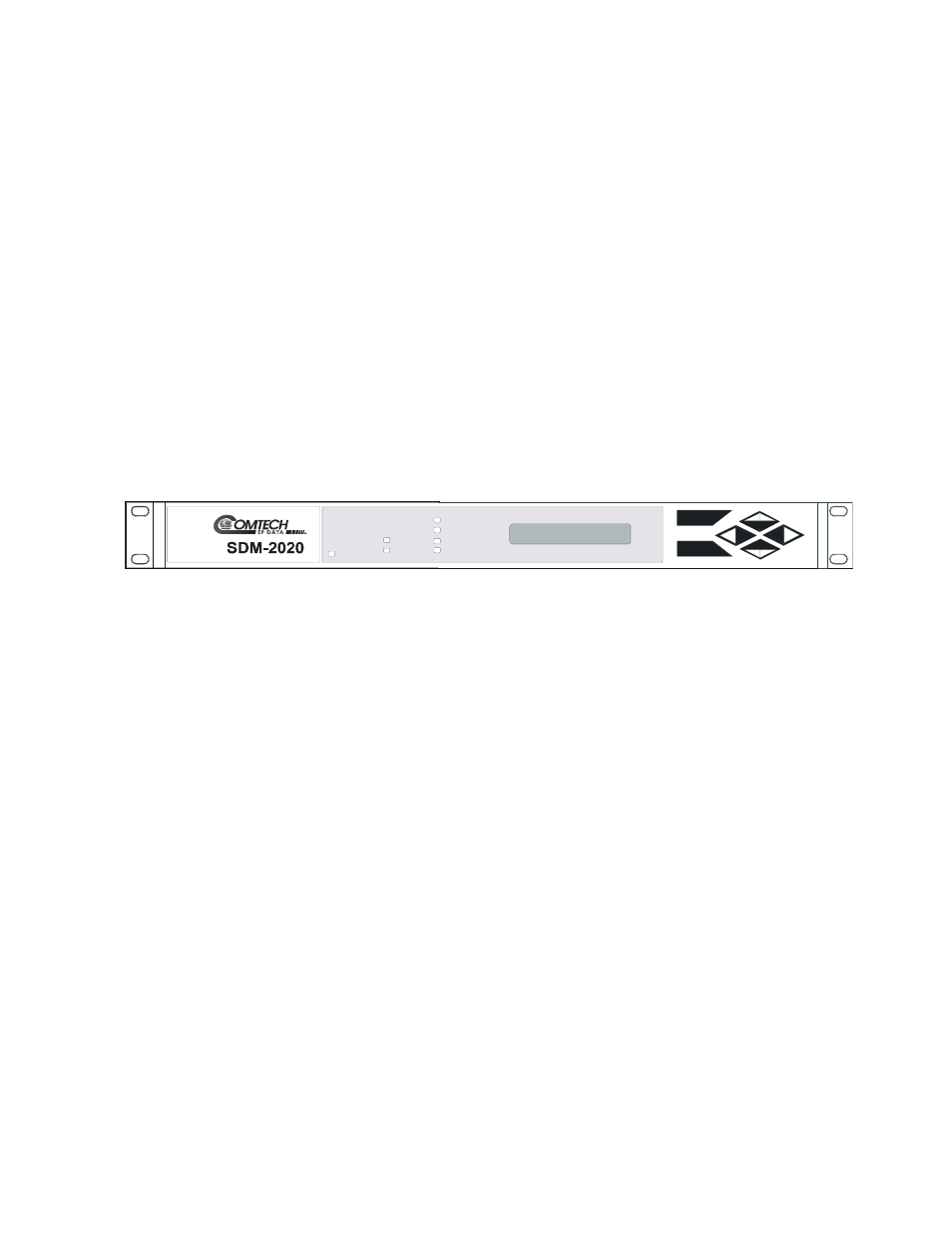

Figure 5-1. Front Panel View

The front panel features include:

• 32-character, 2-line LCD display
• 6-button keypad for local control
• 7- LEDs to provide overall status at a glance

All functions are accessible at the front panel by entering one of six pre-defined Function
Select categories or levels:

• Configuration
• Monitor
• Faults/Alarms
• Stored

Faults/Alarms

• Utility
