Comtech EF Data SDM-2020 User Manual
Page 128
SDM-2020 Satellite Modulator
Revision 7
ECL/HSSI TX
MN/SDM2020M.IOM
10-7
PIN 1
PIN 25
PIN 26
PIN 50
PIN 1
PIN 25
PIN 26
PIN 50

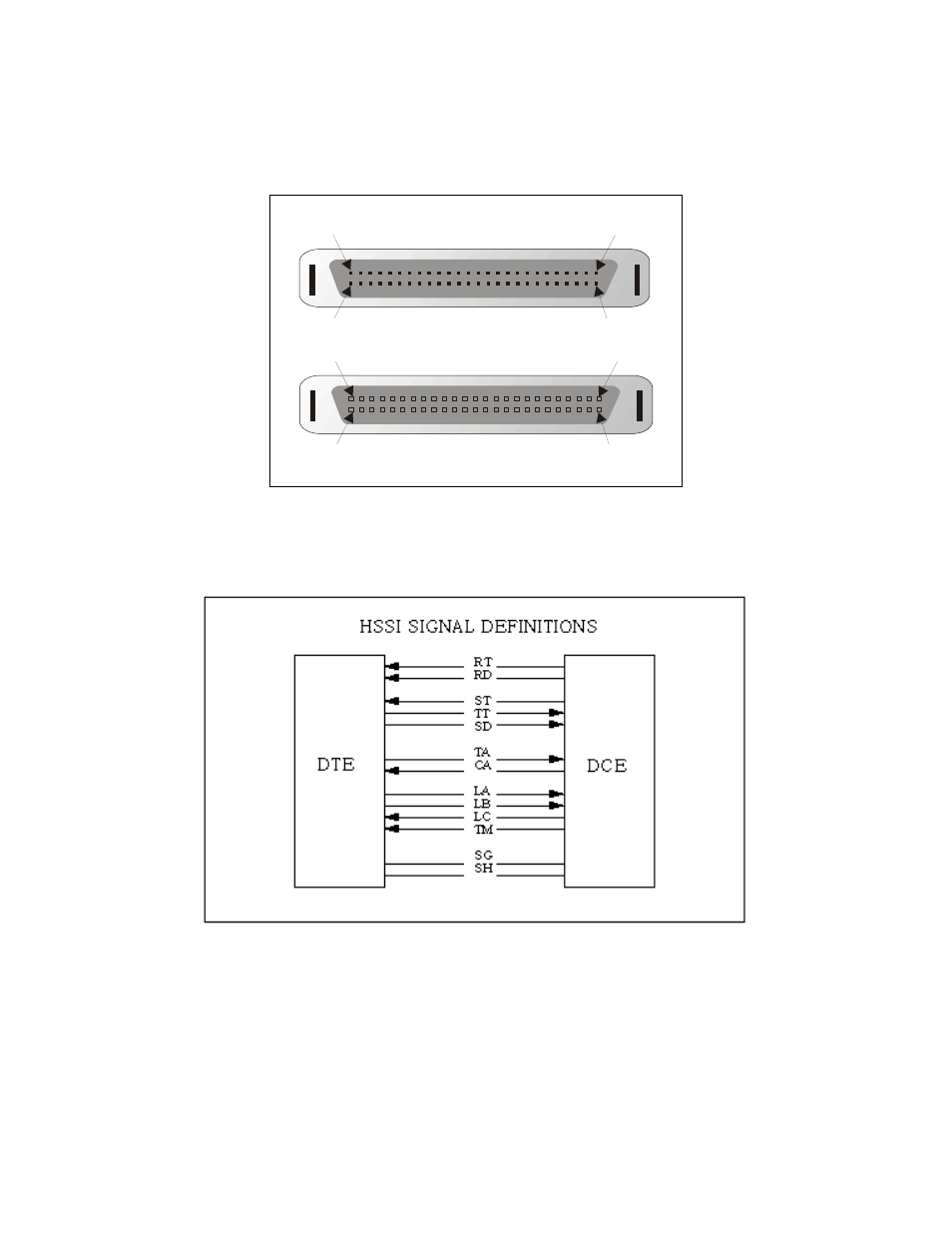

Figure 10-5. ECL/HSSI Connector, Pin Location
Figure 10-6. HSSI Signal Flow
Terminal A “+” of the generator is positive with respect to Terminal B “-“ for a binary 1
or ON state. The B terminal of the generator is positive with respect to the A terminal for
a binary 0 or OFF state.
