3.15 General Purpose TTL Output (PCI-8164 only)
The PCI-8164 provides six general purpose TTL digital outputs.
The TTL output is located on CN5. The signal names, pin num-
bers, and axis numbers are listed below.

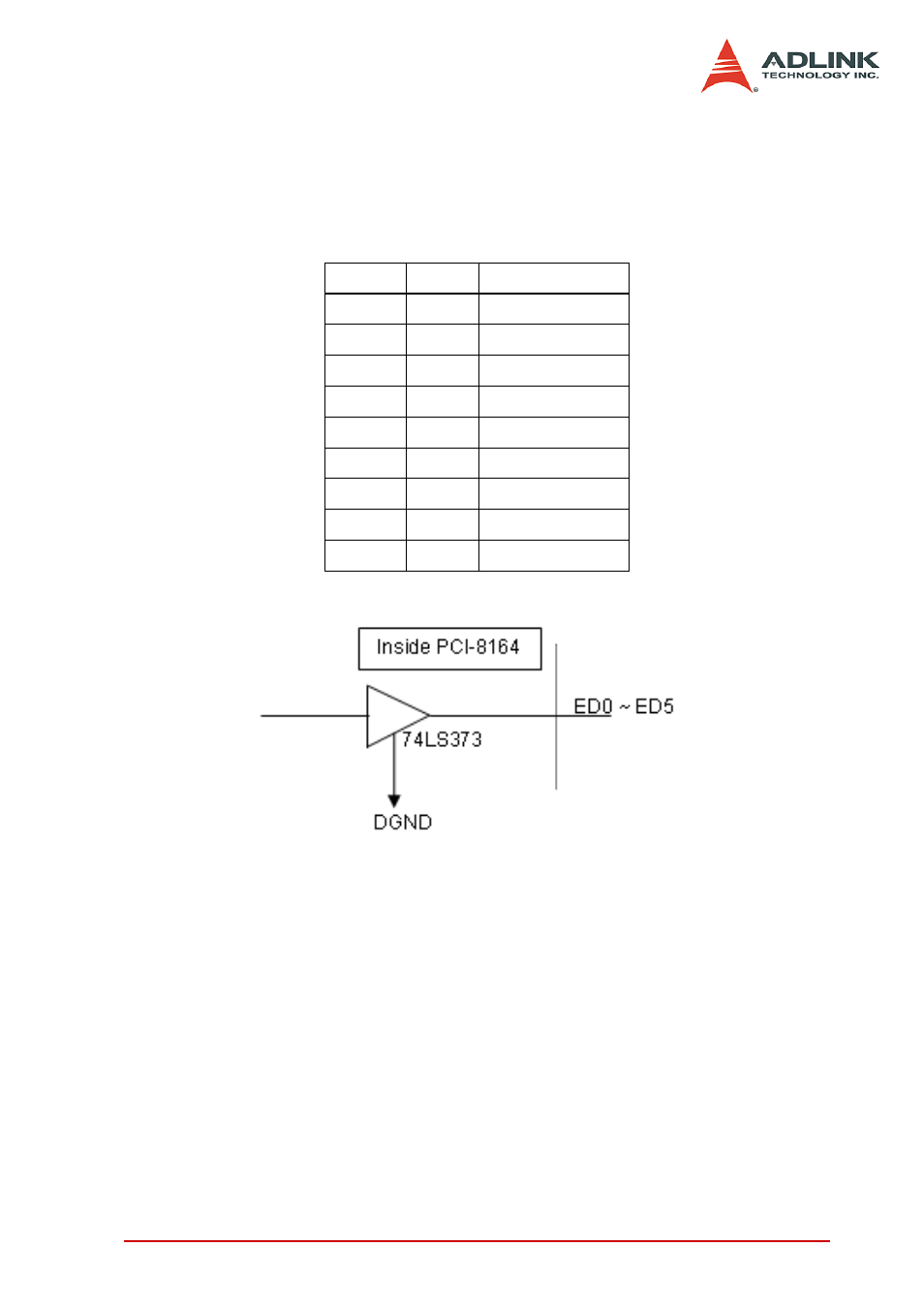

The diagram shows the LTC of the last 2 axes.
Pin No. Name Function
1 DGND Digital ground
2 DGND Digital ground
3 ED0 Digital Output 0
4 ED1 Digital Output 1
5 ED2 Digital Output 2
6 ED3 Digital Output 3
7 ED4 Digital Output 4
8 ED5 Digital Output 5
9 VCC VCC +5V
