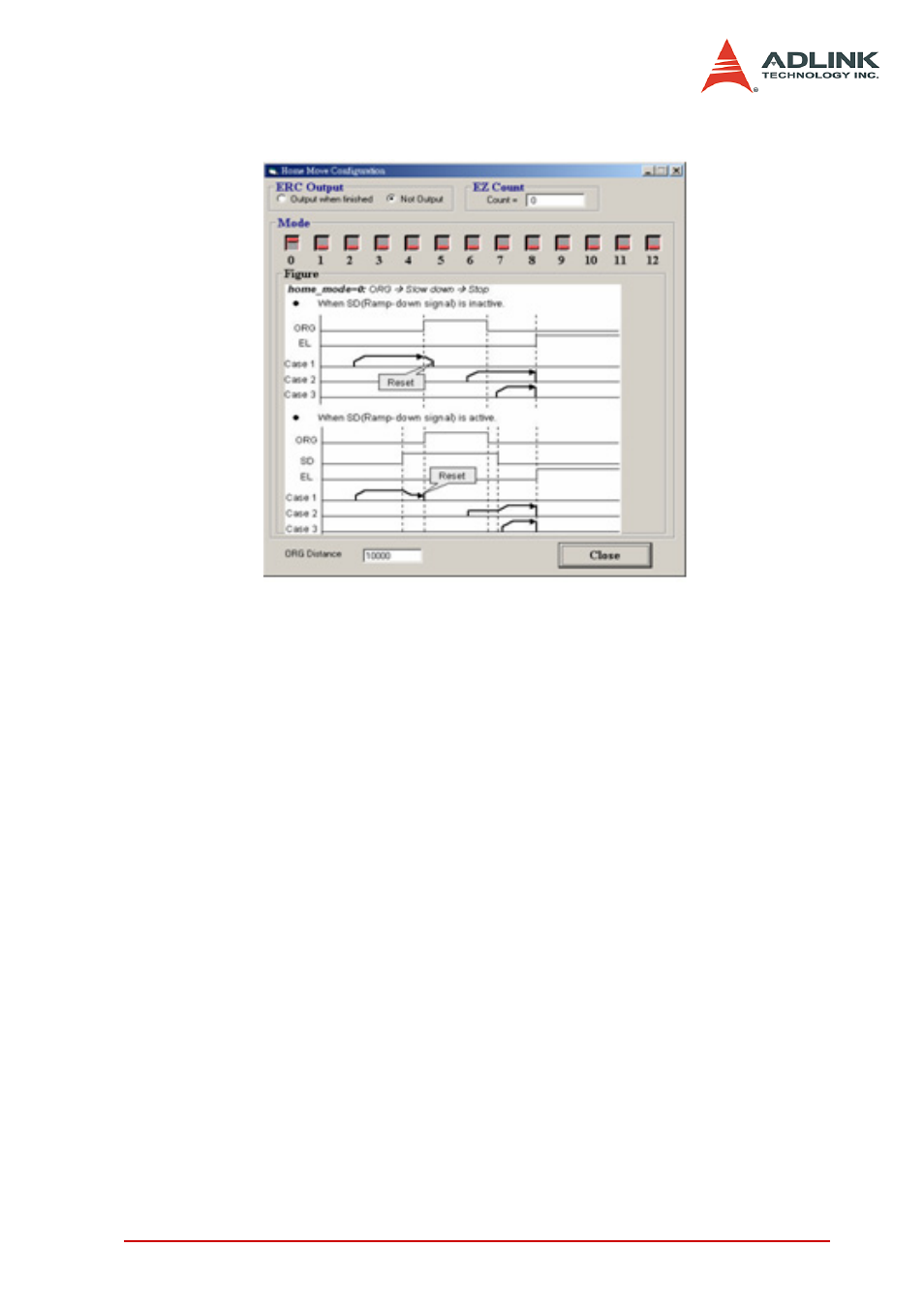

Z ORG Distance: The length when ORG is ON
8. Position: Sets the absolute position for Absolute Mode.
This is only available when the Absolute Mode is
selected.
9. Distance: Sets the relative distance for Relative Mode.
This is only available when Relative Mode is selected.
10.Repeat Mode: When you select On, the motion will
become a repeat mode (forward<->backward or
position1<->position2). This is only available when Rela-
tive Mode or Absolute Mode is selected.
11.Vel. Profile: Selects the velocity profile. Both Trapezoi-
dal and S-Curve are available for Absolute Mode, Rela-
tive Mode, and Cont. Move.
12.Motion Parameters: Sets the parameters for single axis
motion. This parameter is meaningless if Manual Pulser
Move is selected, since the velocity and moving distance
is decided by pulse input.
Z Start Velocity: Sets the start velocity of motion in units
of PPS. In Absolute Mode or Relative Mode, only the
value is effective. For example, -100.0 is the same as
