Page 64
52
Signal Connections
3.9 General-purpose Signal SVON
The SVON signal can be used as a servomotor-on control or gen-
eral purpose output signal. The signal names, pin numbers, and
its axis numbers are shown in the following table.

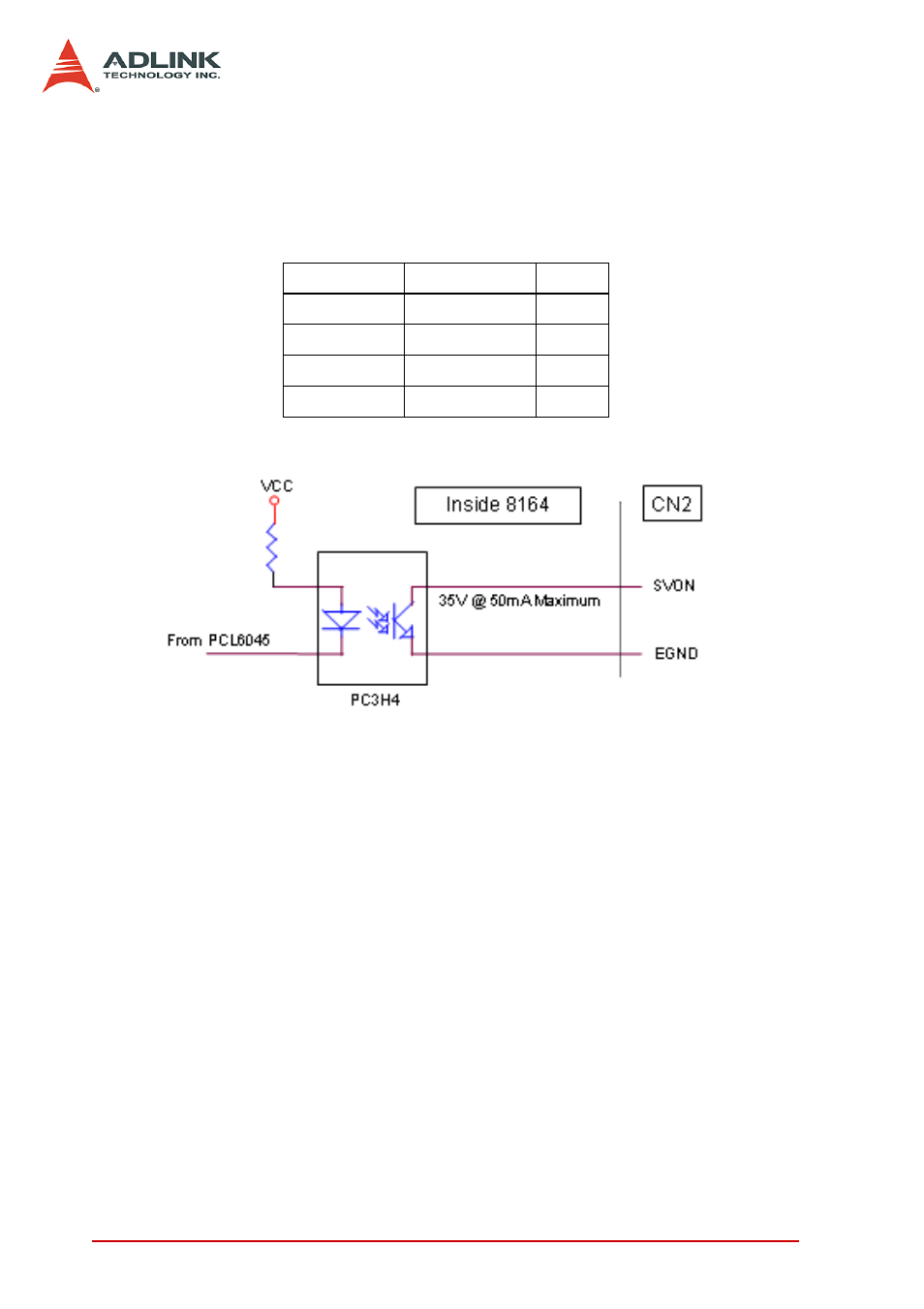

The output circuit for the SVON signal is shown below:
CN2 Pin No Signal Name Axis #
7
SVON1
1
25
SVON2
2
57
SVON3
3
75
SVON4
4
