276 Connection Example

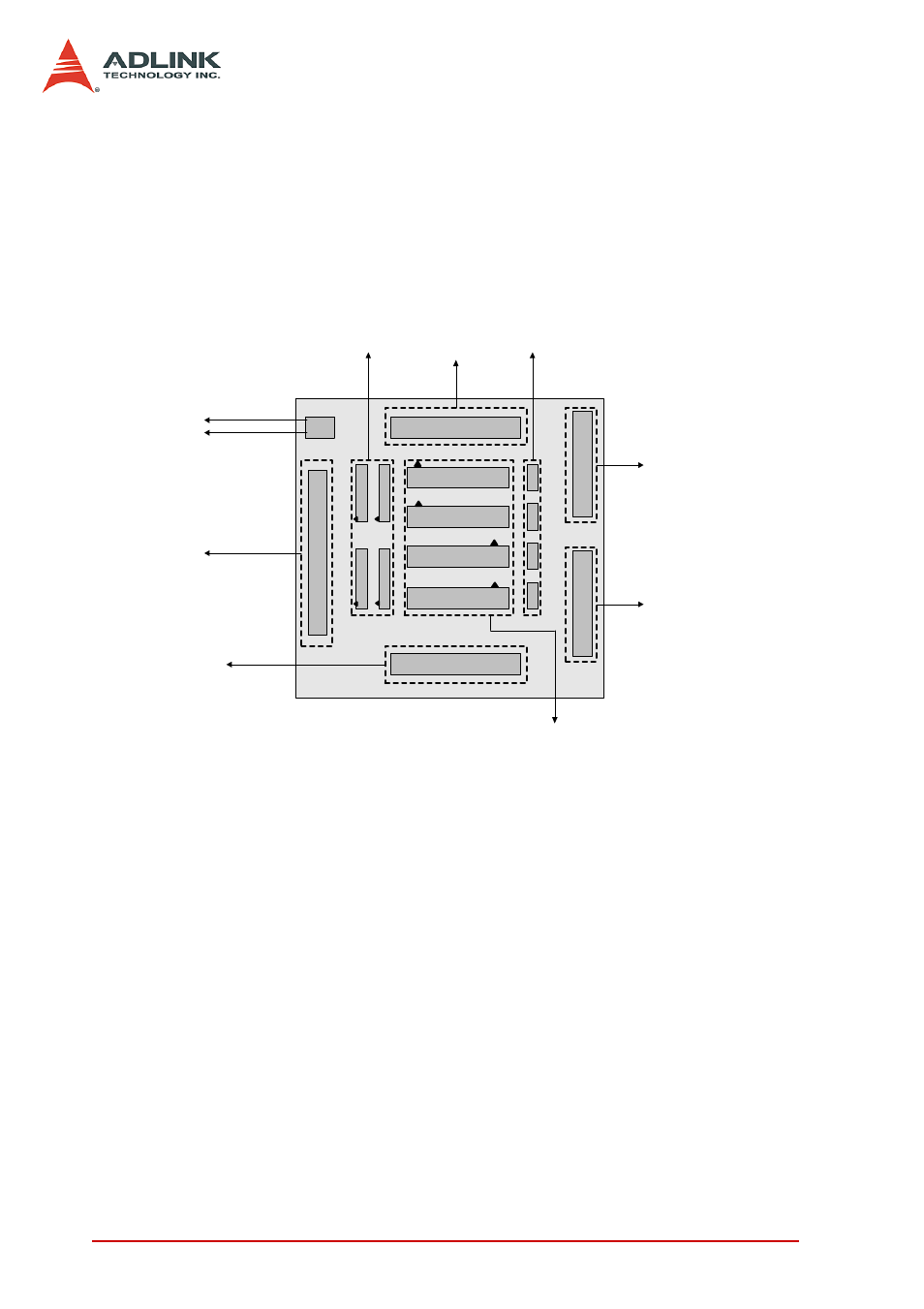

7.4 Wiring with DIN-814P
WARNING
The DIN-814M is used for wiring between the Panasonic MINAS
MSD series servo driver and ADLINK PCI-8134 or PCI-8164
motion controller cards ONLY. Do not try the DIN-814P to connect
other servo drivers or cards.
NOTES
1. The DIN-814P provides TWO connection methods for
every axis. The first is through the CNIF connector for
the Panasonic MINAS MSD series servo driver. The sec-
ond is through the SJ connector for stepping drivers or
other servo drivers (for the Mitsubishi J2S driver, use
DIN-814M). The signals in SJ and CNIF of the same axis
are directly shorted. DO NOT use these connectors at
the same time.
CNIF-(4)
CNIF-(1)
C
N
IF
-(
3)
CN
2
C
N
IF
-(2
)
CN1
SJ
-(
3)
SJ
-(
4)
SJ
-(
1)
SJ
-(
2)
LE
D
4
LE
D
3
LED
2
LE
D
1
IOIF-(4)
IOIF-(2)
IOIF-(3)
IOIF-(1)
To
PCI-8134/8164
GND
+24V
4th Axis
To Panasonic
Driver - CN1
2nd Axis
To Panasonic
Driver - CN1
1st Axis
To Panasonic
Driver - CN1
LED indecater
To stepping
driver
Mechanical I/O
Interface
-(1) : for 1st axis
-(2) : for 2nd axis
-(3) : for 3rd axis
-(4) : for 4th axis
3rd Axis
To Panasonic
Driver - CN1
11 1
1
1
1
