2.6 MPC-8164 hardware installation
2.6.1 Hardware configuration
The MPC-8164 card is PC104-compliant. The onboard DIP
switches and jumpers assign the card’s I/O port locations and IRQ
channels.
A single-board setup has a default setting of 0x200 and IRQ5. In
GEME systems, the default value varies depending on the location
of the card. Refer to the following table:
Table 2-1: GEME hardware configuration
Base address setting

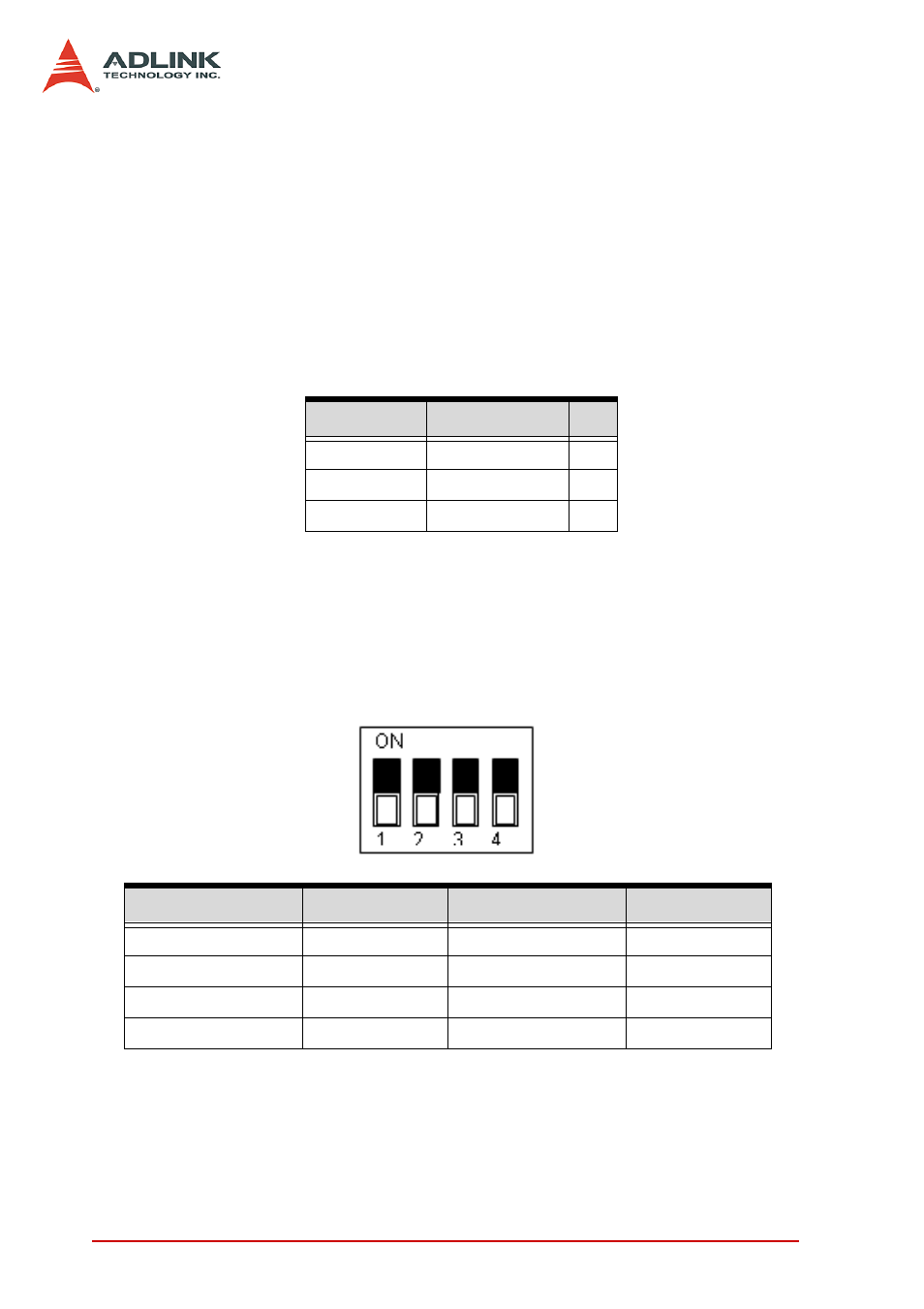

The base address is set by SW1 (pins 2 to 4). Note that pin 1 is
reserved. If all DIPs are set to OFF, the base address is 0x200.
Default settings are dependent on the order.
Table 2-2: Base Addresses
GEME level Base address IRQ
1 0x300 9
2 0x200 5
3 0x280 10
DIP Switch (2 3 4) Base Address DIP Switch (2 3 4) Base Address
1 1 1 0x3C0 1 1 0 0x2C0
0 1 1 0x380 0 1 0 0x280
1 0 1 0x340 1 0 0 0x240
0 0 1 0x300 0 0 0 0x200
