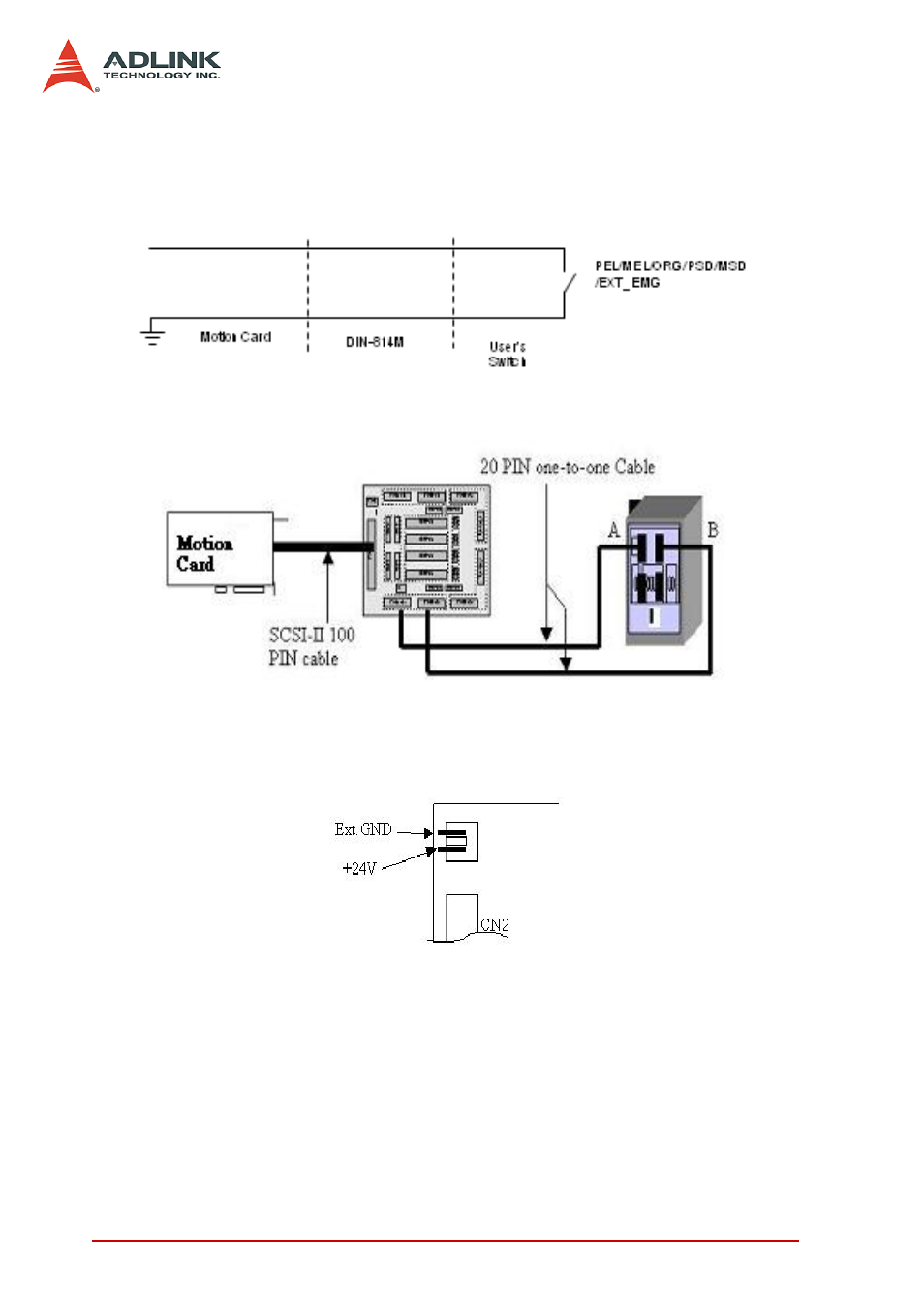

Connection Example

7.3.2 Signal Connections

1. PEL, MEL, ORG, PSD, MSD (in IOIF#)

2. EX_EMG (both IOIF# and HD#)

3. CMP, LTC (in IOIF#’s PSD pin only for 8164 series)

4. CNA & CNB, CN2

5. CN1: This connector is parallel with on board CN1.

6. SJ1-4: For stepping driver, refer to the ADLINK user’s

manual for wiring.

7. TD1-4: Refer to the Mitsubishi user’s manual for wiring.

8. TJ1-2: Refer to the Mitsubishi user’s manual for wiring.
