Signal Connections

By default, the OUT and DIR are set to differential line driver
mode.

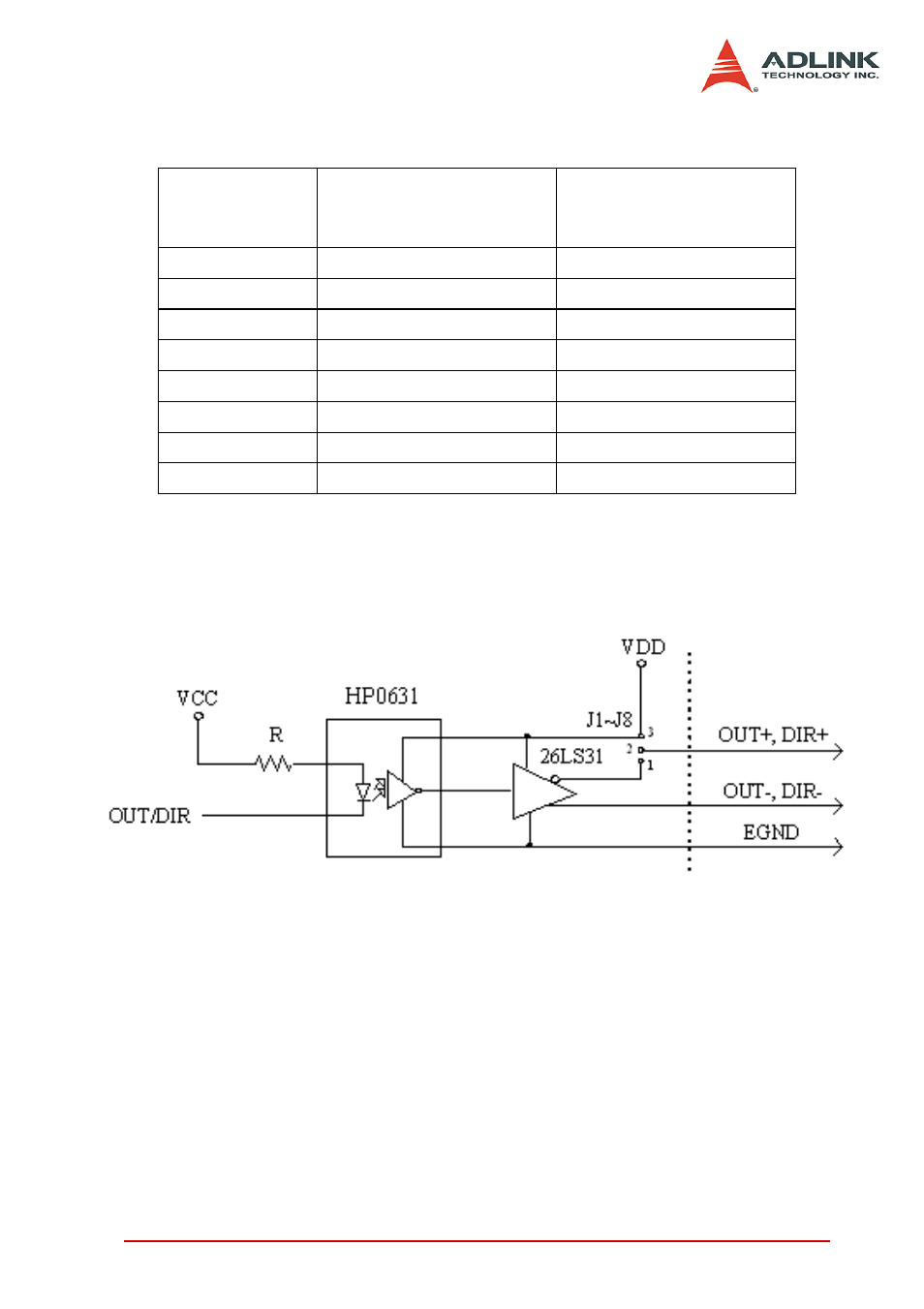

The wiring diagram below illustrates the OUT and DIR signals on
the 4 axes of PCI-8164 card.

NOTE

When the pulse output is set to open collector output

mode, OUT- and DIR- transmits OUT signals. The sink

current must not exceed 20 mA on the OUT- and DIR-

pins. By default, pin 1-2 of the jumper is shorted.

USAGE

Short pin 2-3 of the jumper and connect OUT+/DIR+ to a

470 ohm pulse input interface’s COM of driver. See the

following figure.

Output Signal

For differential line driver

output, close breaks

between 1 and 2 of:

For open collector out-

put, close breaks

between 2 and 3 of:

OUT1-

DIR1-

OUT2-

DIR2-

OUT3-

DIR3-

OUT4-

DIR4-
