EVCO S.p.A. c-pro 3 NODE kilo AHU | Application manual ver. 1.0
page 53 of 114

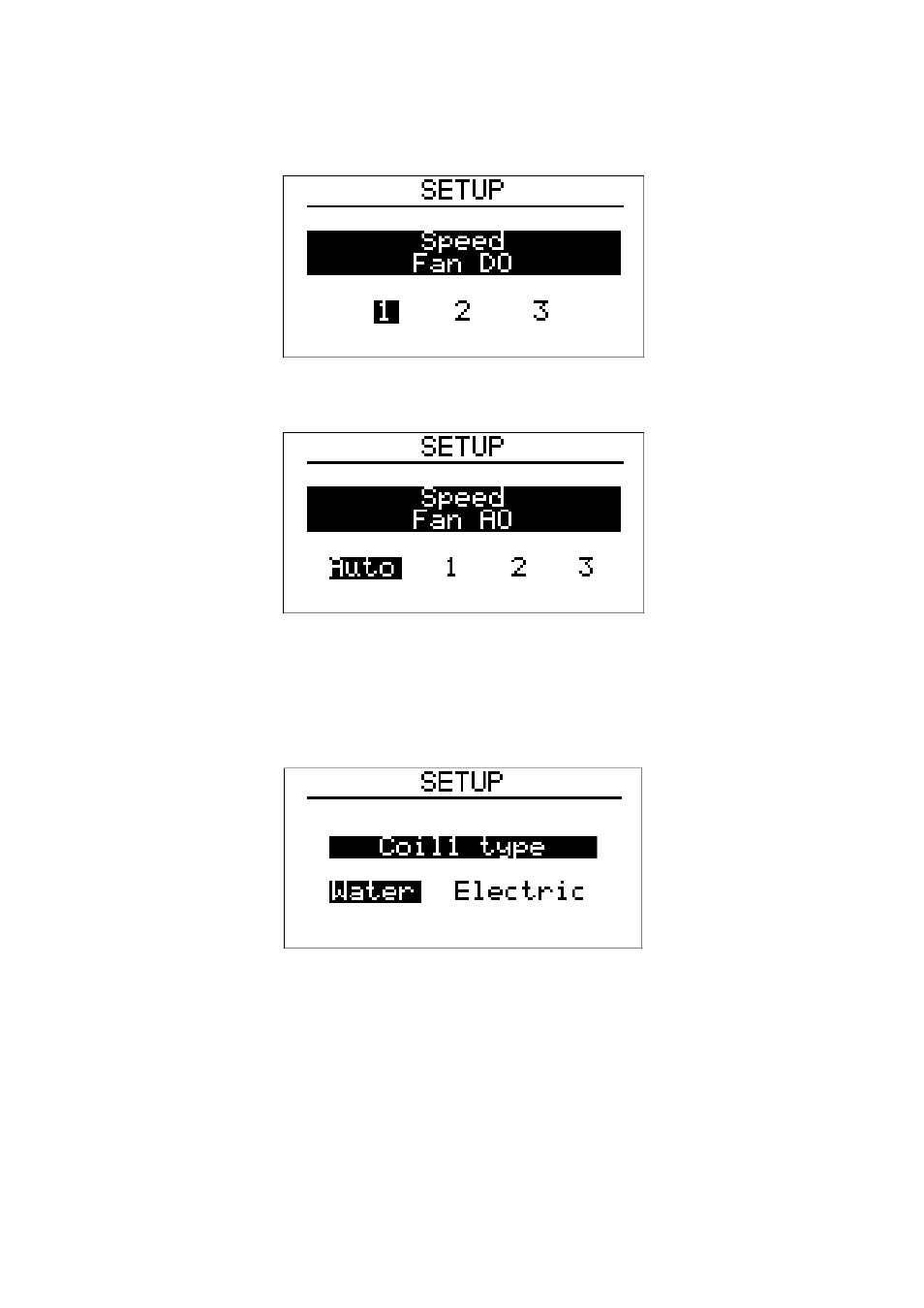

Screen from where it is possible to set the SETUP of the fans, activating with "DO" if from digital output or "AO" if from
analogue output.
If entered from "DO" therefore digital output, I can proceed at a determined fan speed (Speed Fan DO), activating 1, 2
or 3.
If entered from “AO” therefore analogue output, I can proceed with determined fan speed (Speed Fan AO), activating
the automatic mode with "Auto" or 1, 2 or 3 depending on the desired speed.
6.8.3 Set up of Coil 1 type configuration
Screen from which the coil type can be configured (Coil 1 type), selecting with “Water” if water is chosen or selecting
“Electric” in the case of heaters.
