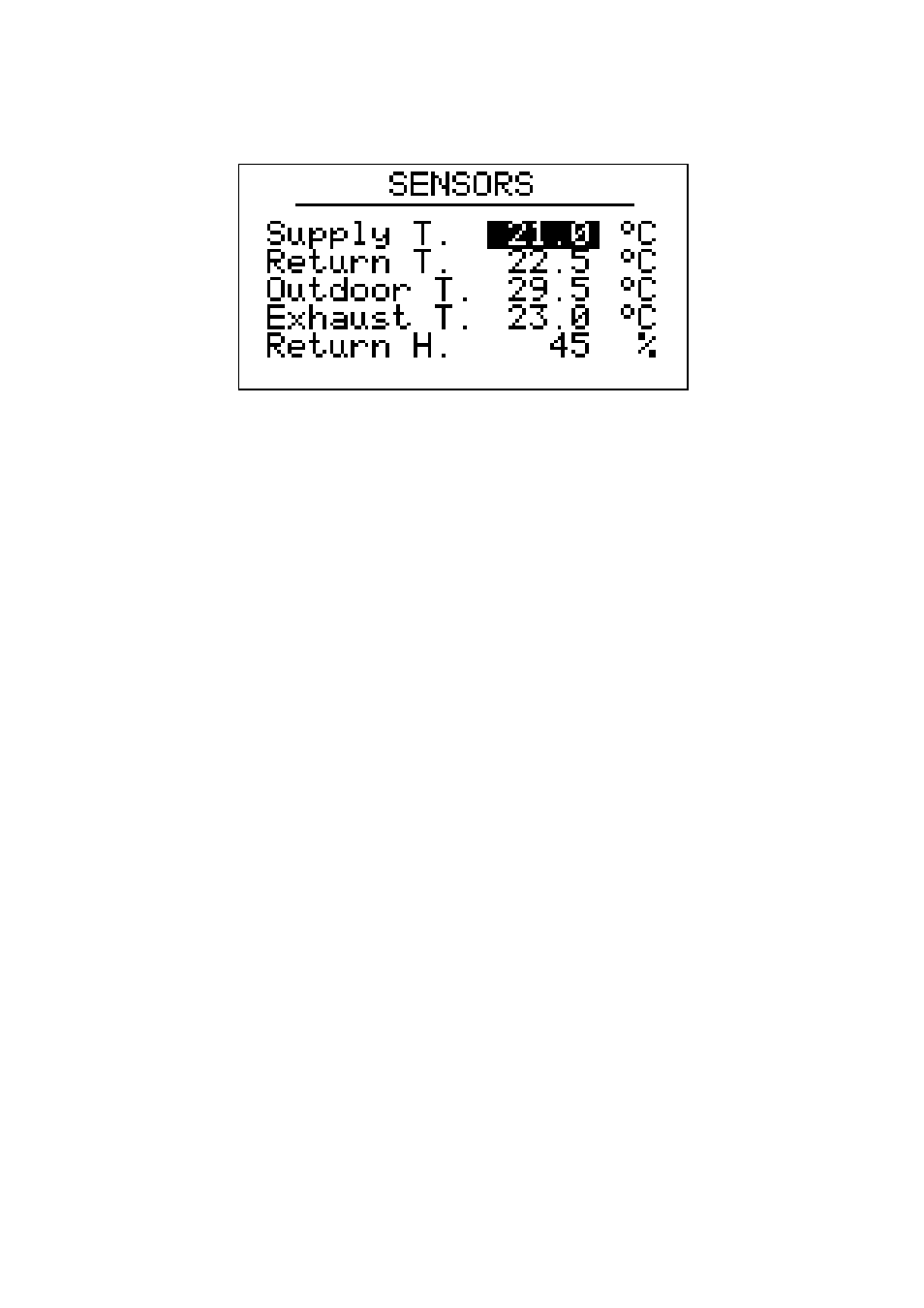

4.2.12 Sensors status screen
The status of the sensors is displayed
4.3 General menu
The general menu has no level and represents the access point for all the other system menus.
TIME BANDS
USER
MAINTENANCE
INSTALLATION
RTC
ALARMS
HISTORY
SAVE/RESTORE
It is possible to view this menu from any point within the user interface by pressing ENTER for approximately 2
seconds. From this menu you can choose the menu you wish to view by pressing the UP and DOWN keys followed by
pressing the ENTER key for confirmation.
In the upper right hand corner of the image appears a “v” which represents the focus.
This indication specifies to the user that additional information is contained therein and can be viewed by pressing the
DOWN key (or UP key depending on the direction of the focus) scrolling to view the content that is not viewable in the
current page. In this specific case, once the focus is on the line CONSTRUCTOR, press DOWN to proceed to the
subsequent page.
4.4 User menu
The User menu is a Level 1 menu, i.e. it requires entering of the User level (or higher) password, in order to be able to
display/modify the parameters contained in this branch.
The following parameters appear in this branch:
- summer/winter operating mode
- set point for winter operation or single set point
- set point for summer operation
- set point room humidity
- offset from supervisor
- offset from scheduler
- USER password
