3.2 Display that can be viewed from the Vroom interface

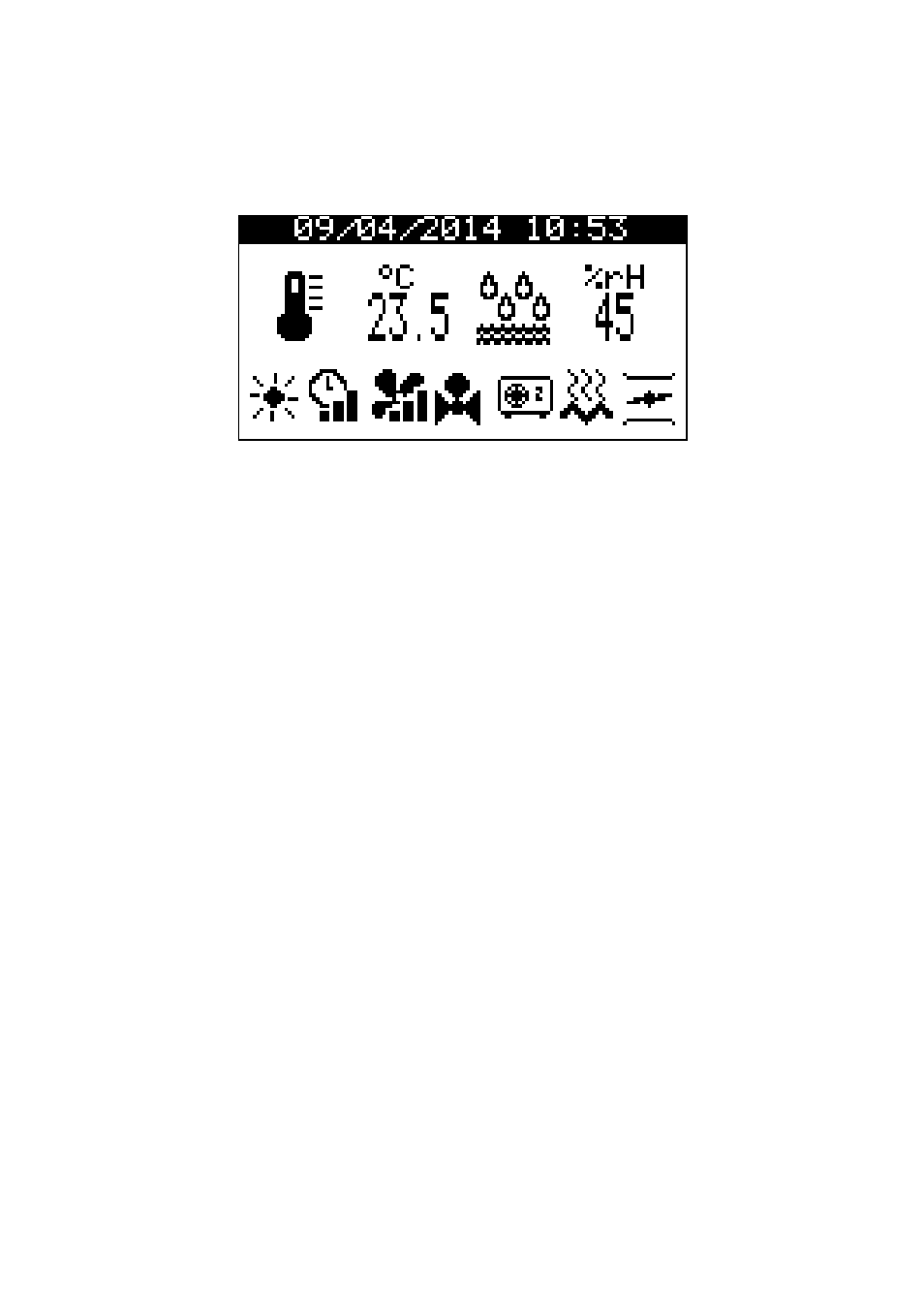

From the ages of the LCD screen of the associated user interface (Vroom), the following icons can be displayed:
Winter/Summer icon:
Winter: Winter operation active.
Summer: Summer operation active.
Alarm icon:
Invisible: No alarm.
Visible: At least 1 alarm is active.
Slow flashing: New alarm exists, but it is not displayed yet.
Scheduler icon:
Invisible: No time bands active.
T1: Time band T1 active.
T2: Time band T2 active.
T3: Time band T3 active.
H: Time band Holiday active.
Fan icon:
Invisible: Fans are off.
Visible: At least 1 fan is on.
Pump icon:
Invisible: Pumps are off.
Visible: At least 1 pump is on.
Coil icon:
Invisible: Coils are off.
Visible: At least 1 coil is on.
Damper icon:
Invisible: Damper is closed
Visible: Damper is open.
°C/°F icon: This indicates the temperature measurement unit of the selected sensor.
