Dell PowerVault 136T LTO/SDLT (Tape Library) - Manual (Page 43)

NOTE: Best scanning results can be obtained by using Dell supplied barcode labels
When Scan Barcode is selected, the Scan Barcode Dialog is displayed. See Figure 38 . This option performs an inventory on a range of slots.

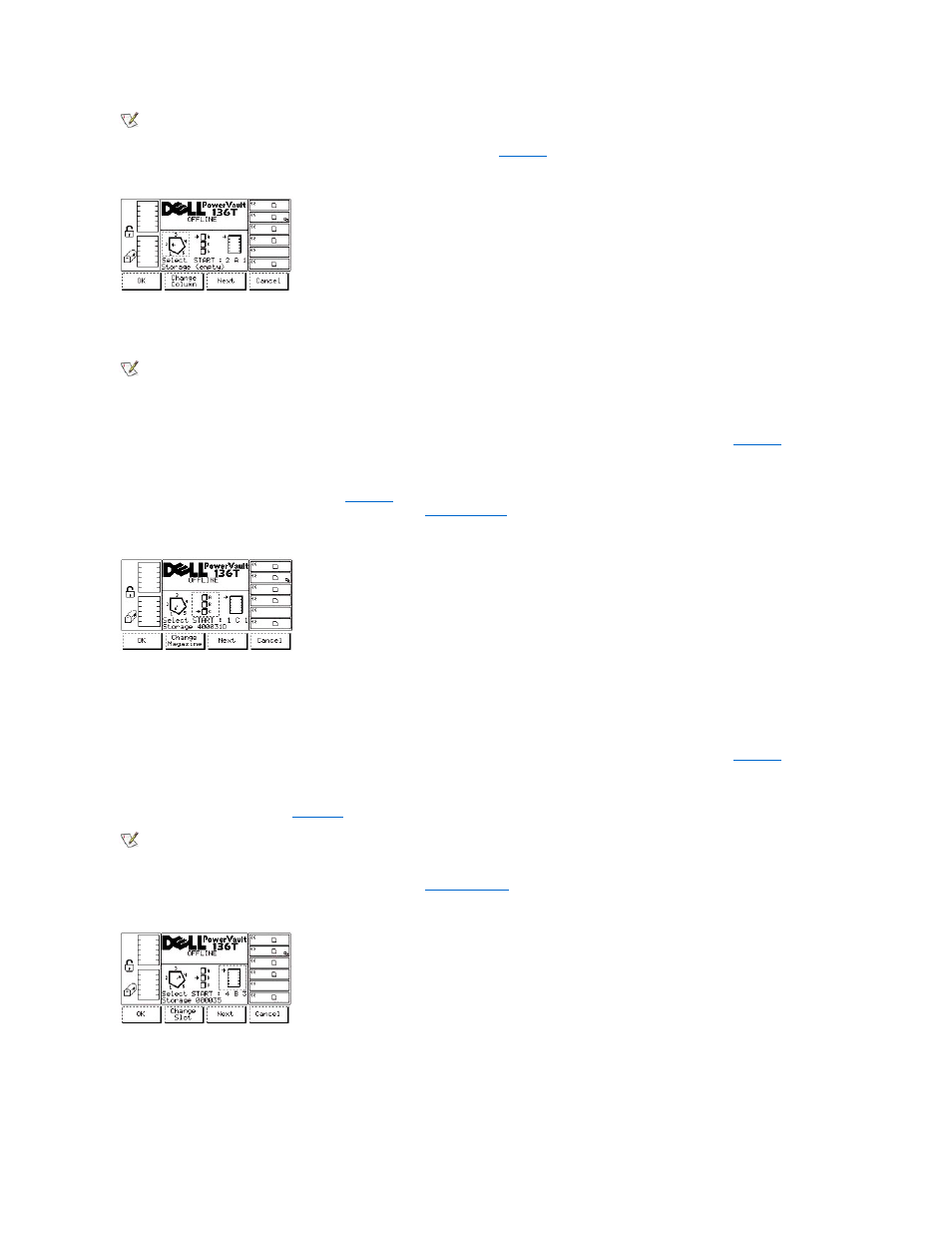

Figure 38. Command > Move > Scan Barcode Dialog
To choose one of the four selections, follow the step.
NOTE: The column, magazine, and slot parameter selections are interactive. The combination of the three parameters generates the
location coordinate.
Step 1 Press the button beneath the desired softkey.
l
If the button beneath the OK softkey is pressed, the fields are accepted and the follow on dialog is displayed. Refer to Figure 41 .
l If the button beneath the Change Column softkey is selected, the column indicator is stepped clockwise to the next column address.
Repeat until the desired column is indicated.
l If the button beneath the Next softkey is selected, the current source parameter changes from column to magazine and the Change
Magazine Dialog is displayed. Refer to
Figure 39 .
l If the button beneath the Cancel softkey is pressed, the Move Submenu is displayed.
Figure 39. Command > Move > Scan Barcode > Change Magazine Dialog
To choose one of the four selections, follow the step.
Step 2 Press the button beneath the desired softkey.
l If the button beneath the OK softkey is pressed, the fields are accepted and the follow on dialog is displayed. Refer to Figure 41 .
l If the button beneath the Change Magazine softkey is selected, the magazine indicator is stepped downward to the next magazine
address. Repeat until the desired magazine is indicated.
l
If the button beneath the Next softkey is selected, the current source parameter changes from magazine to slot and the Change Slot
Dialog is displayed. Refer to
Figure 40 .
NOTE: If the chosen column element is a drive (column 3), no slot or magazine parameters are available. The menu will revert from the
drive parameter back to the change column parameter.
l
If the button beneath the Cancel softkey is pressed, the Move Submenu is displayed.
Figure 40. Command > Move > Scan Barcode > Change Slot Dialog
To choose one of the four selections, follow the step.
Step 3 Press the button beneath the desired softkey.
