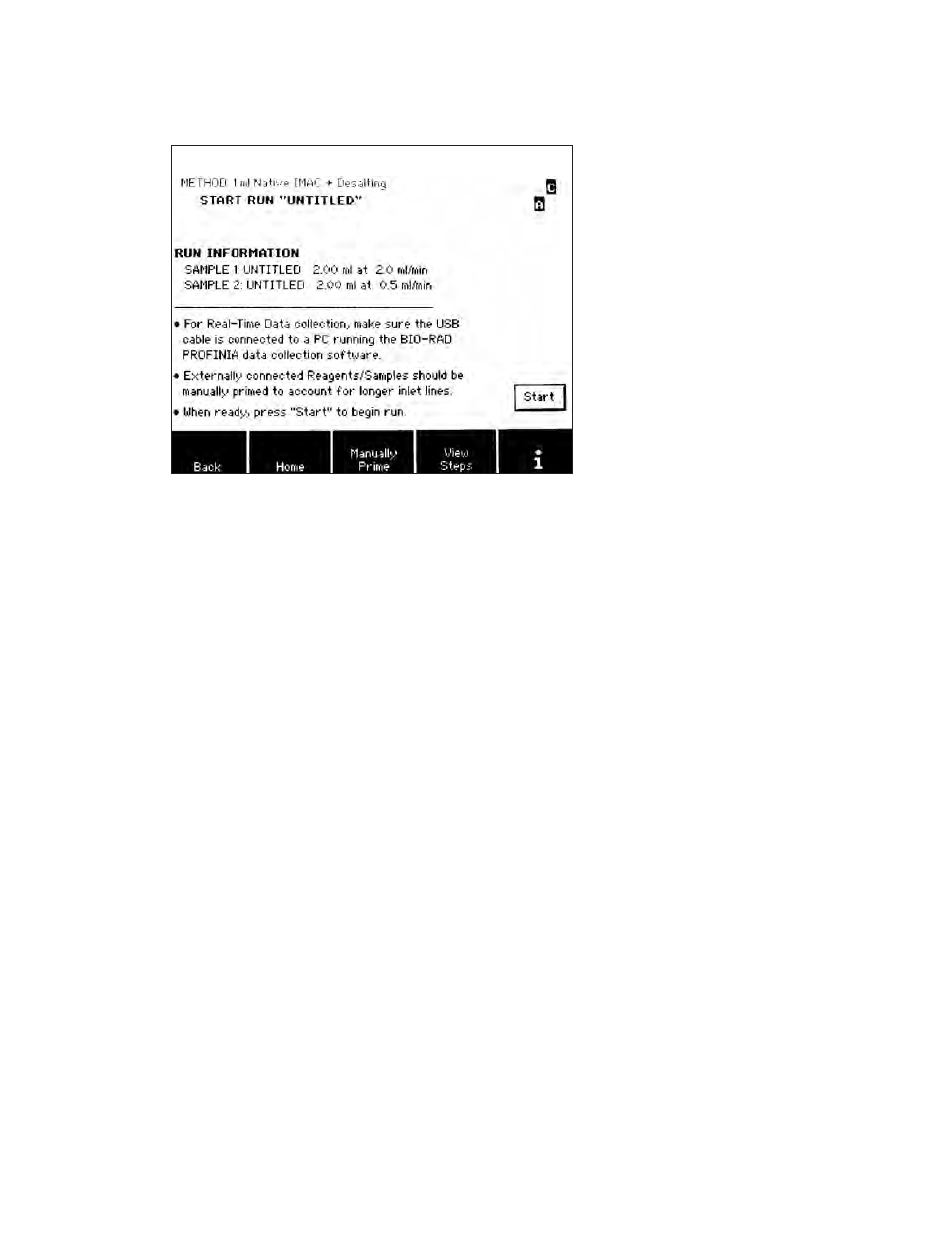

Fig. 6.30. Start Run screen.
6.7.1 Viewing Steps
Touch the View Steps button (available on the Start Run screen at any point during the run)
to display the View Method Steps screen (Figure 6.31). During a run, the step that is
currently in progress is highlighted.
The following columns of information are displayed on the View Method Steps screen:
• Step — numbered list of the primary steps that will be performed in the run
• Name — brief description of the operation associated with the step
• Conc. — buffer position in the instrument and buffer concentration (the instrument
dilutes concentrated buffers)
• ml/min — flow rate displayed in ml/min
• CV — column volume based on the cartridge size (for example, for a 1 ml IMAC cartridge,
2 CV = 2 ml)
• Min — duration of each step in minutes
During a run, the step currently in progress is highlighted.
55
