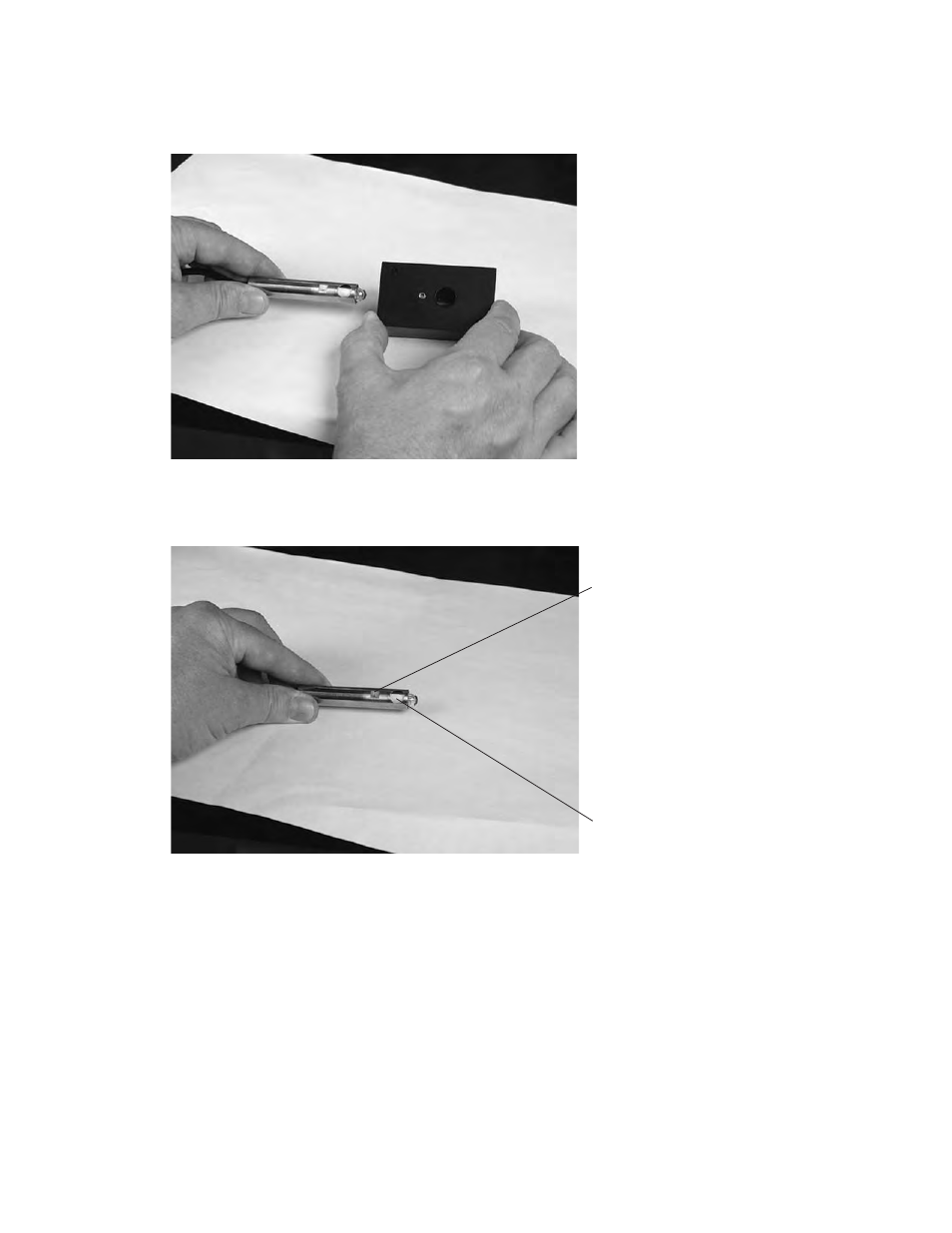

Fig. 13.17. Sliding the replacement UV lamp out of the carrier.
7. Remove the new UV lamp from its package. Note the round window for the UV light
(Figure 13.18), and the flat for the set screw.
Fig. 13.18. Lamp with UV light window and flat for set screw.
Note: Use care not to touch the glass lamp; if this happens, clean the fingerprints from the
lamp with alcohol.
8. Slide the new UV lamp into the lamp carrier, and align the hole in the lamp with the
window in the carrier.
9. Using the 5/64" Allen wrench, tighten the set screw that holds the lamp in place.
10. Find the filter carrier; place this on top of the UV lamp carrier with the silver side of the
filter facing toward the lamp. Align the mounting holes in the filter carrier with the
mounting holes in the lamp carrier (Figure 13.19).
157
Flat for
set screw
UV light
window
