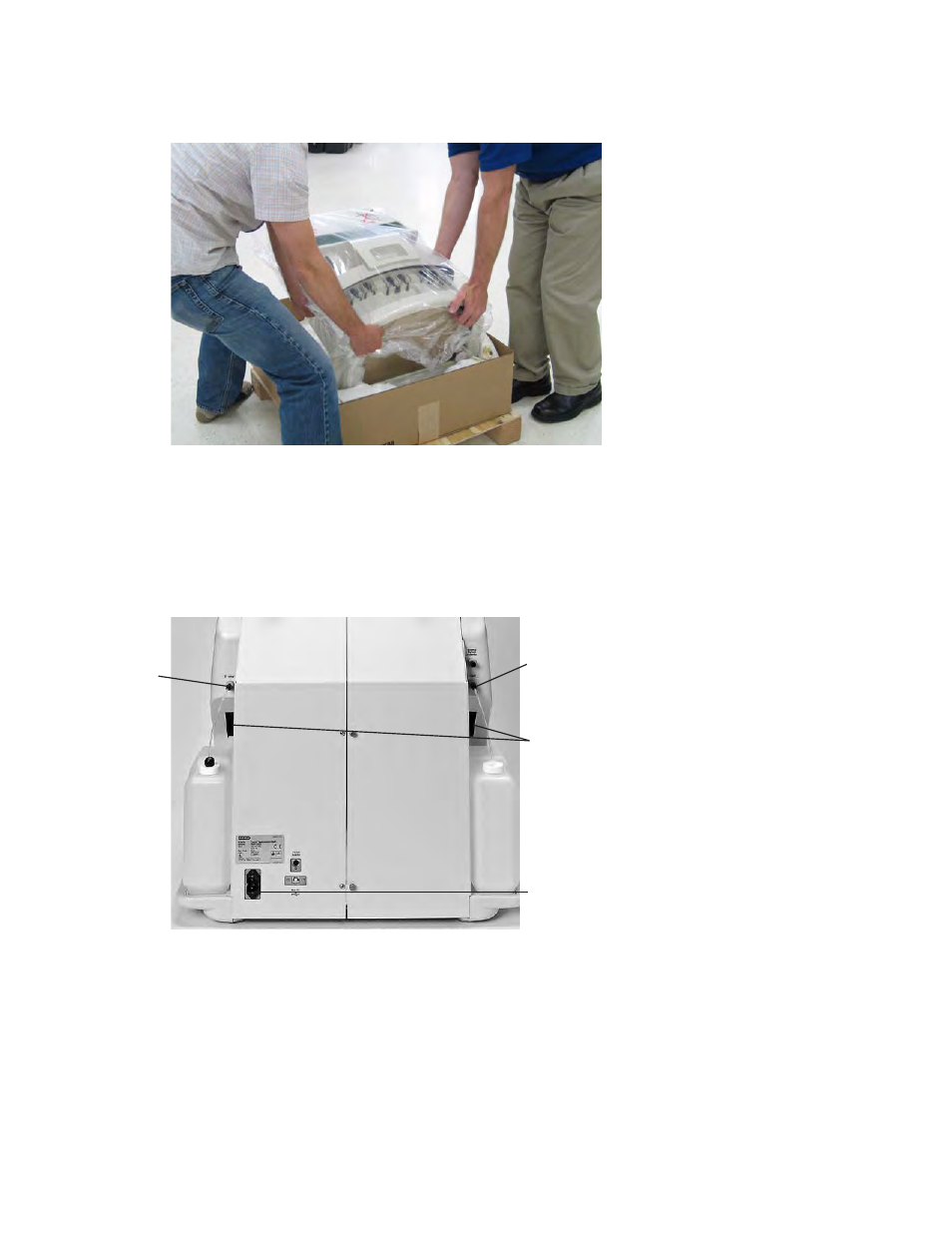

Fig. 2.4. Using lift handles to remove the instrument from packaging.
8. Connect the power cable to the back of the instrument (see Figure 2.5 for location of
power cord connection).
9. Install the diluent (water) and waste bottle tubing by unscrewing the shipping plugs from
the deionized (Di) water and waste ports on the back of the instrument; connect the
diluent and waste bottle tubing to these ports (Figure 2.5).
Fig. 2.5. Rear instrument view showing the location of the power cable connection, lift handles, and Di
water and waste ports. Water and waste bottles are shown properly connected to the ports.
Note: The 2 L bottles packaged with the accessories include both “Water” and “Waste”
labels. Determine which bottle will be used for which function, then use a permanent marker
to cross out the other label. This will avoid confusion and possible contamination.
7
Di water port
Waste port
Lift handles
Power cable
connection
