6.1 Dosing units and Dosinos
711 Liquino, Instructions for use 140
700 Dosino
10 ml 10 ml

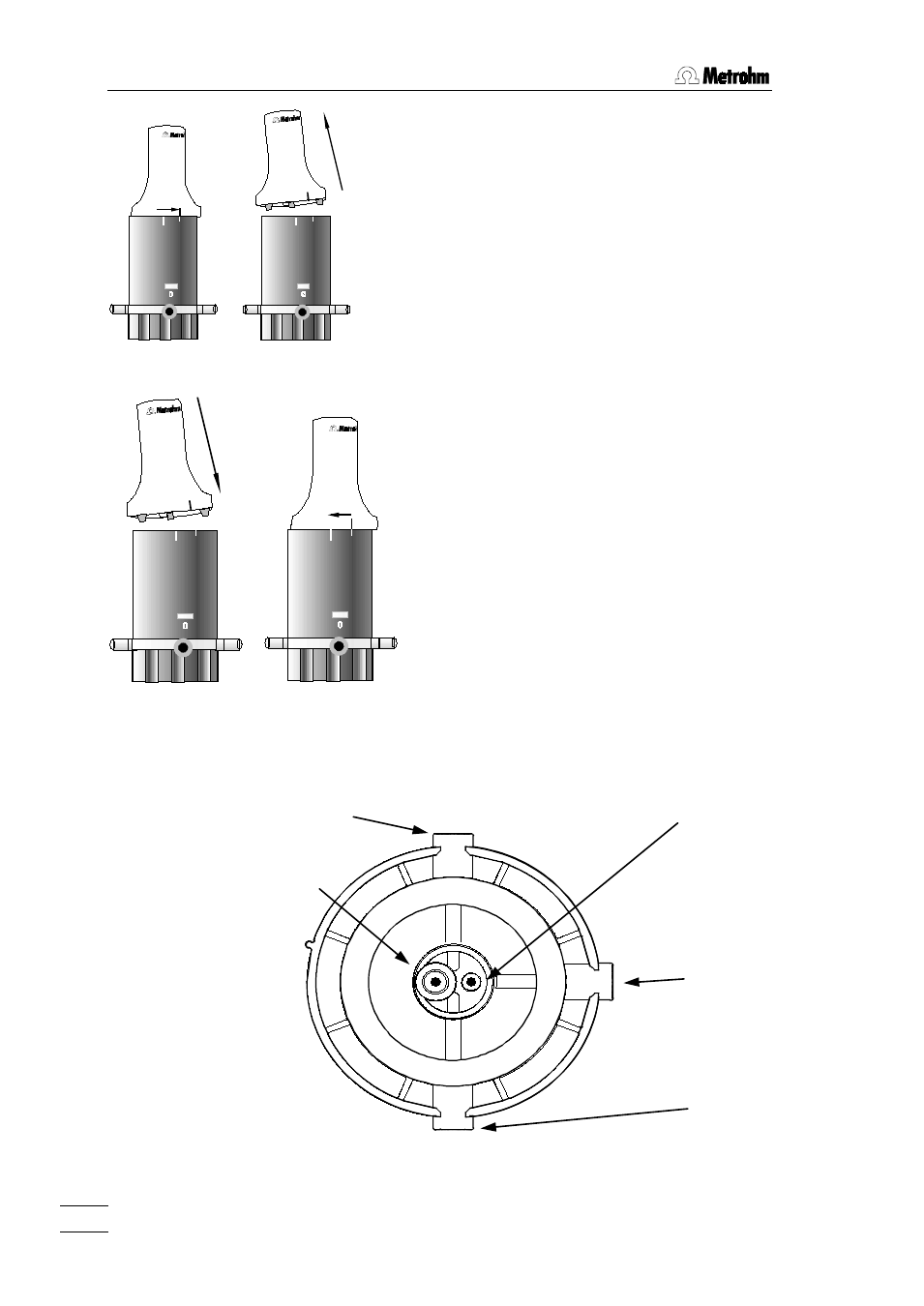

Remove dosing drive
The dosing drive mounted on the dosing unit is
turned counterclockwise until it reaches the shorter
of the two marking lines and then lifted off.
700 Dosino
10 ml 10 ml
Mount dosing drive
The dosing drive can easily be attached to the next
dosing unit (i.e. to the next reagent bottle). The
green marking line on the Dosinos must coincide
with the shorter white marking line on the, dosing
unit. In this way the two ribs and the dosing spindle
on the lower side of the dosing drive can be insert-
ed in the dosing unit.
Then turn the dosing drive clockwise until the
Dosino marking line coincides with the longer white
marking line on the dosing unit.
Port assignment
A dosing unit has 5 ports (inlets/outlets) to which, depending on the Liquino
mode, different functions can be allocated.
Dosing unit from below
Port 1
Port 0
Port 3
Port 4
Port 2
