￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 3 Installation
862 Compact Titrosampler ￭￭￭￭￭￭￭￭ 23
Connecting a polarizable electrode

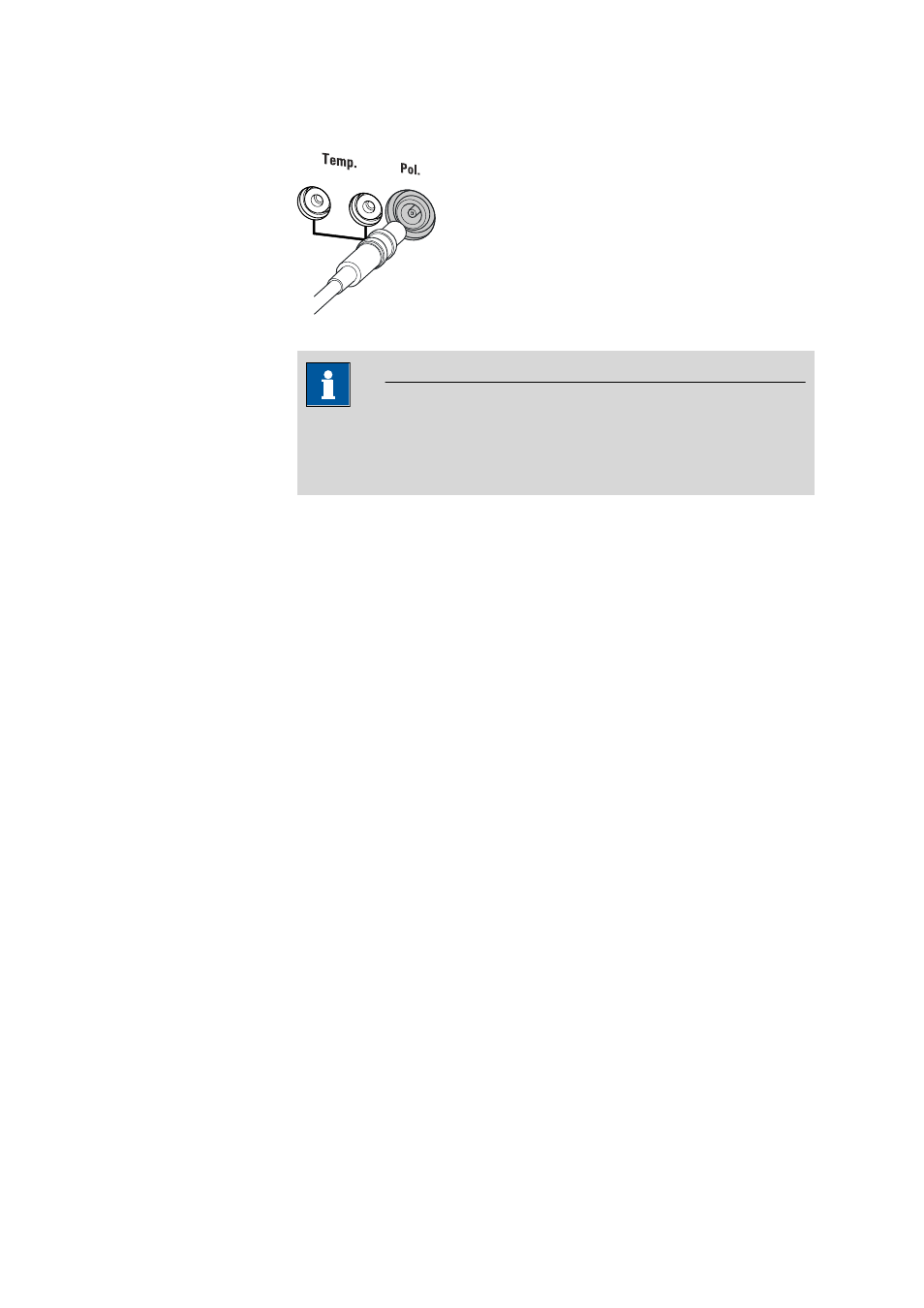

Figure 19 Connecting a polarizable electrode
Note
The electrode cable is protected against accidental disconnection of the
cable by means of a pull-out protection feature. If you wish to remove
the plug, then you must first retract the outer plug sleeve.
3.10 Remote connections
The 862 Compact Titrosampler can be used as a control instrument for a
simple automation system with a large variety of different instruments.
Even older Metrohm instruments can thus be integrated into an automa-
ted analysis system.
3.10.1 Miscellaneous remote cables
The following connecting cables can be used with the 862 Compact Titro-
sampler:
6.2136.010 ￭ For connections with a Dosimat with dosing contact (banana plug
socket).
The cable transmits only a starting pulse from the 862 Compact Titrosam-
pler to the connected Dosimat.
6.2141.230 ￭ For connections to an 843 Pump Station.
The cable transmits the control signals of the 862 Compact Titrosampler
to the pump 1 and 2 of the 843 Pump Station.
6.2141.240 ￭ For connections with a Dosimat plus.
The cable transmits start and stop pulses from the 862 Compact Titrosam-
pler to the connected Dosimat plus.
In the event of an error with the connected Dosimat, the cable transmits a
stop signal to the 862 Compact Titrosampler.
