3.3 Mounting the Dosino ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
12 ￭￭￭￭￭￭￭￭ 862 Compact Titrosampler
1
2
3

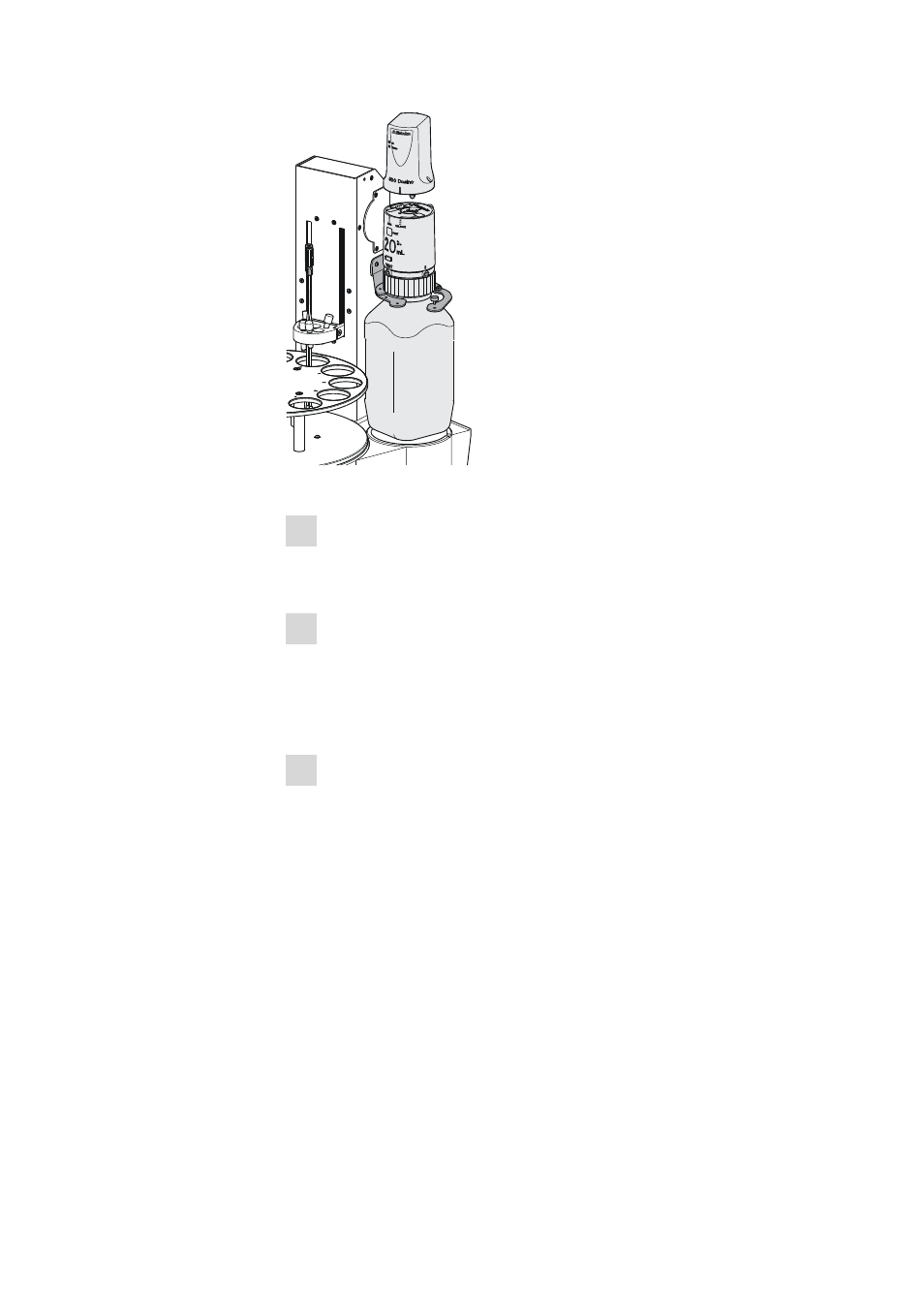

Figure 4 Mounting the Dosino
1 Attach the dosing unit
Connect the filling tubing to port 2 on the underside of the dosing
unit and screw the dosing unit onto the titrant bottle.
2 Place the titrant bottle
Open the bracket on the right-hand side of the tower with the aid of
the knurled screw. Place the titrant bottle with the dosing unit on the
support surface. Fix the bottle with the bracket and fasten the
knurled screw.
3 Attach the dosing drive
Insert the 800 Dosino with the guide pins into the openings on the
upper side of the dosing unit. Fix the 800 Dosino with a rotation to
the left. Note the markings.
