3.5 Setting up the titration head ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
14 ￭￭￭￭￭￭￭￭ 862 Compact Titrosampler
3.5 Setting up the titration head
Equipping the titration head without rinsing equipment
2.802.0010
6.1909.050
6.1805.xxx
6.2104.020
6.02/04xx.xxx
1
2
3
4
5

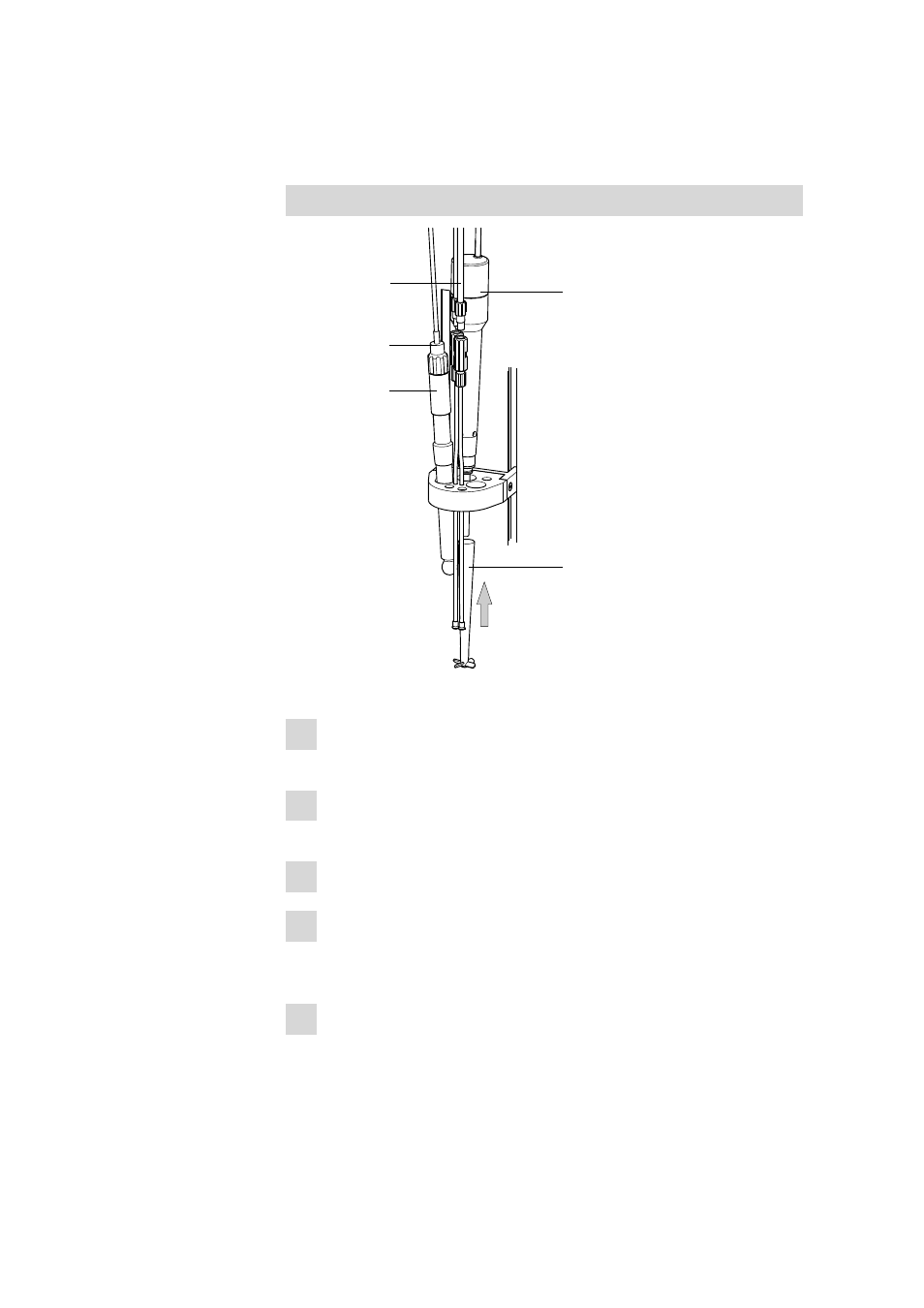

Figure 6 Equip the titration head
1 Insert the rod stirrer (802 Stirrer) from above into the rear opening of
the titration head.
2 Guide the 6.1909.050 stirring propeller over the drive shaft of the
rod stirrer from below and press firmly.
3 Insert an electrode into the left-hand opening of the titration head.
4 Connect a 6.2104.020 electrode cable to the electrode. Connect the
other end to the electrode connector Ind. (see "Connecting pH or
redox electrodes", page 21).
5 Manually screw the enclosed 6.1805.100 FEP tubing to the dosing
tip mounted on the titration head. Connect the other end of the tub-
ing to the dosing unit on the Dosino.
