￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 2 Overview of the instrument
862 Compact Titrosampler ￭￭￭￭￭￭￭￭ 9
1
2
3 4 5 6 7 8 9 10 11 12

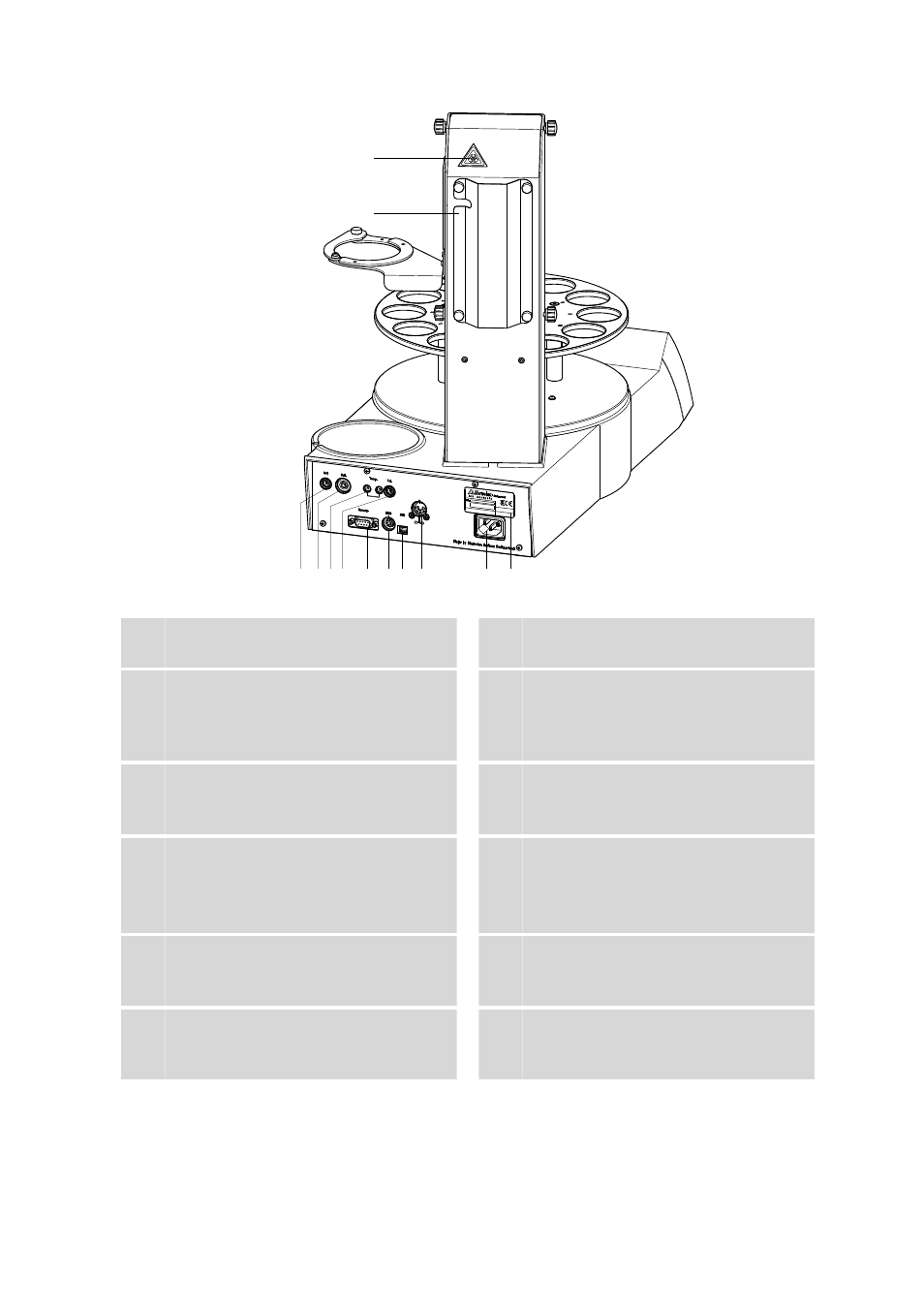

Figure 2 Rear 862 Compact Titrosampler
1 Warning symbol
(see Chapter 1.3.4, page 5) 2 Tubing and cable cover
3 Electrode connector (Ind.)
For connecting pH or redox electrodes with
integrated or separate reference electrode.
Socket F. 4 Electrode connector (Ref.)
For connecting reference electrodes. Socket
B, 4 mm.
5 Temperature sensor connector
For connecting temperature sensors of the
Pt1000 or NTC types. Two B sockets, 2 mm. 6 Electrode connector (Pol.)
For connecting polarizable electrodes, e g.
double Pt electrodes. Socket F.
7 Remote connector
For connecting instruments with a remote
interface. D-Sub, 9-pin. 8 MSB connector
Metrohm Serial Bus.
For connecting the 800 Dosino. Mini DIN,
9-pin.
9 USB (OTG) connector
For connecting printers, USB sticks, USB
hubs, etc. 10 Stirrer connection
For 802 Stirrer (rod stirrer).
11 Mains connection socket 12 Type plate
Contains specifications concerning mains
voltage and serial number.
