6
●
Work with Symbols
●
●
●
●
●
215
1. In Build mode, click a connection point.

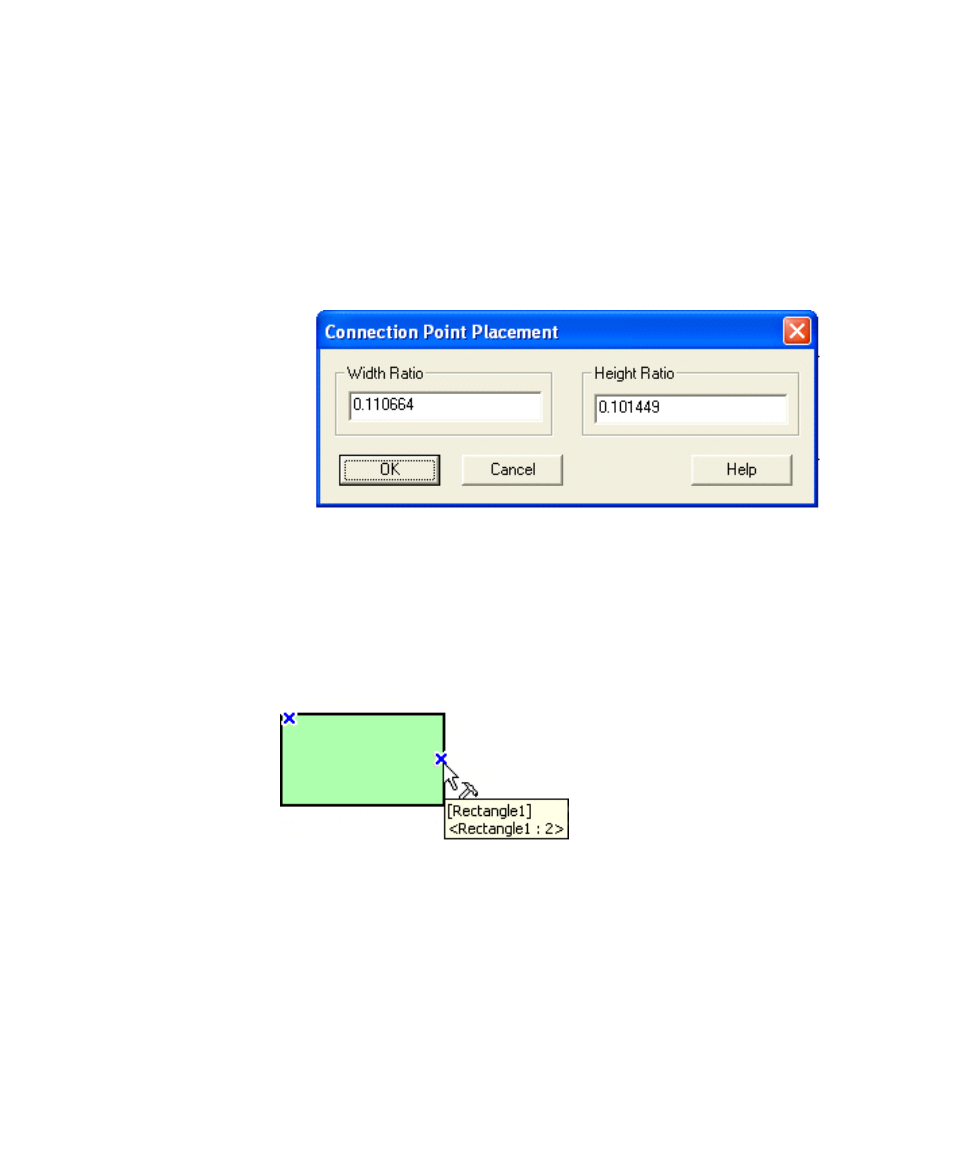

2. Click Edit > Connection Points > Move. The Connection Point
Placement dialog box appears, where you can edit the width and
height ratios in comparison to the X and Y axes of the symbol.
Determine the Identifying Number of a Connection
Point
In Build mode, if you place your mouse over a Connection Point, a
ToolTip shows you the Connection Point number. The following
illustration refers to Connection Point 2 on Rectangle 1. These Connection
Point numbers are used on the Connectors dialog box Flow tab (page 216).
In other words, Connection Points have identifying names that are derived
from the symbol name. For example, for a rectangle named Rectangle2,
two Connection Points would be named and : 2>.
